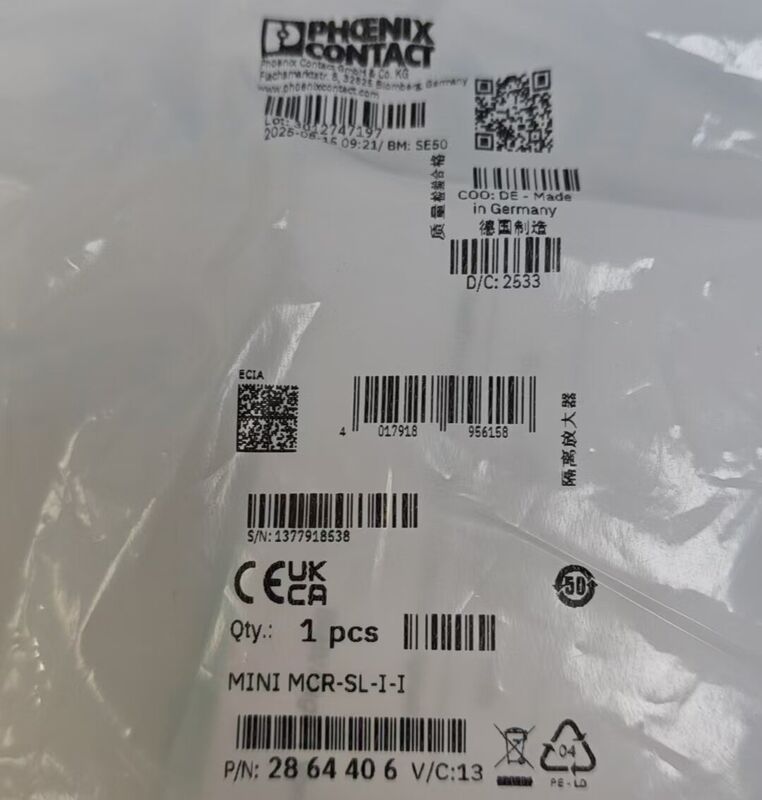

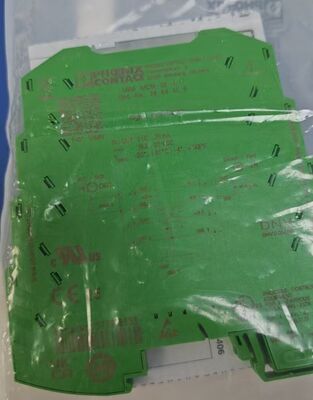

Phoenix Contact MINI MCR‑SL‑I‑I 3‑Way Analog Signal Isolating Amplifier
Product Details:
Manufacturer : Phoenix Contact
Product No. : MINI MCR‑SL‑I‑I
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
MINI MCR‑SL‑I‑I is a compact‑sized 6.2 mm single‑channel MINI‑Analog signal conditioner manufactured by PHOENIX CONTACT. It delivers three‑channel galvanic isolation, signal amplification and noise filtering for standard 0‑20 mA / 4‑20 mA analog‑current signals in industrial‑automation control loops. The slim DIN‑rail‑mount housing saves cabinet space and accepts 19.2–30 V DC auxiliary power supply. Widely deployed for sensor‑signal isolation, signal‑loop interference suppression and signal transmission‑error reduction within process‑control equipmentPhoenix Co...
Detail:
| Parameter Item |
Technical Value |
| Part Number |
MINI MCR‑SL‑I‑I (2864406) |
| Brand |
PHOENIX CONTACT |
| Product Category |
Analog Signal Isolator, 3‑Way Isolation Amplifier |
| Channel Quantity |
1‑channel |
| Mounting Type |
35 mm standard DIN‑rail installation |
| Housing Width |
6.2 mm ultra‑slim design |
| Connection Mode |
Screw terminal connection |
| Approved Wire Cross‑Section |
0.2 mm²‑2.5 mm² (AWG 26‑12) |
| Operating Ambient Temperature |
−20 °C ~ +60 °C |
| Storage Temperature |
−40 °C ~ +85 °C |
| Ingress Protection Grade |
IP20 |
| Enclosure Material |
PBT engineering plastic |
| Electrical Parameter |
Specification Data |
| Galvanic Isolation Type |
3‑way isolation (input‑output‑power supply) |
| Rated Insulation Voltage |
50 V AC/DC |
| Dielectric Withstand Test Voltage |
1.5 kV AC, 50 Hz, 60 seconds |
| Input‑Supported Current Signal |
0‑20 mA, 4‑20 mA |
| Output‑Supported Current Signal |
0‑20 mA, 4‑20 mA |
| Maximum Transmission Error |
≤0.1 % of full‑scale value |
| Typical Temperature Coefficient |
<0.002 %/K |
| 3‑dB Cut‑off Frequency |
100 Hz |
| 10‑90 % Step Response Time |
3.2 ms |
| Rated Supply Voltage |
24 V DC |
| Working Power‑supply Range |
19.2 V DC‑30 V DC |
| Max. Power Dissipation |
250 mW |
| Built‑in Protection |
Transient surge‑protection circuit |
| Signal Transmission Rule |
Input signal equals output signal (In = Out) |
