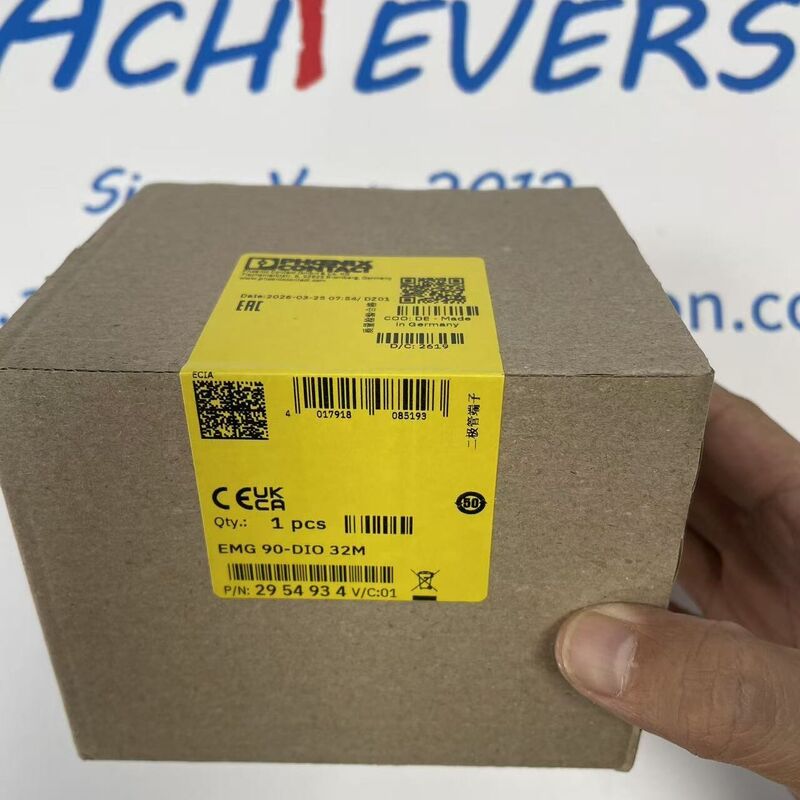

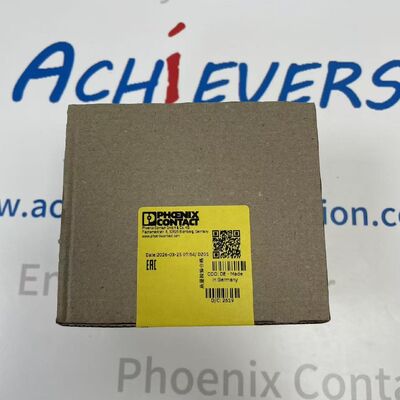

Phoenix Contact EMG 90-DIO 32M | 32-Channel Common Anode Diode Block Module
Product Details:
Manufacturer : Phoenix Contact
Product No. : EMG 90-DIO 32M
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Phoenix Contact EMG 90-DIO 32M is a high-density industrial diode block module designed for surge voltage suppression and electrical signal decoupling in industrial control systems. Featuring 32 integrated 1N4007 diodes with a common anode configuration, this DIN-rail mountable module delivers reliable protection for inductive loads and ensures stable signal transmission in fault reporting and monitoring circuits.
Engineered for universal industrial compatibility, the EMG 90-DIO 32M supports a maximum operating voltage of 250 V AC and provides robust surge suppression with a 1300 V peak reverse voltage rating per diode. Its optimized current handling capacity enables stable operation under single-load and simultaneous multi-load conditions, effectively eliminating voltage spikes and electromagnetic interference generated by inductive components such as relays, contactors, and solenoid valves.
Detail:
|
Technical Item
|
Parameter Value
|
|
Product Model
|
EMG 90-DIO 32M
|
|
Manufacturer
|
Phoenix Contact
|
|
Manufacturer Item Code
|
2954934
|
|
Module Type
|
32-Channel Common Anode Diode Block
|
|
Diode Model
|
1N4007
|
|
Max Operating Voltage (Umax)
|
250 V AC
|
|
Peak Reverse Voltage per Diode
|
1300 V
|
|
Reverse Current per Diode
|
≤ 5 µA
|
|
Conducting State Voltage
|
Approx. 0.8 V
|
|
Single-Load Conducting Current
|
0.7 A
|
|
Simultaneous Multi-Load Current
|
0.2 A
|
|
Insulation Pollution Degree
|
2
|
|
Core Functions
|
Surge voltage suppression, inductive load protection, signal decoupling
|
|
Physical & Environmental Item
|
Parameter Value
|
|
External Dimensions (W × H × D)
|
90 mm × 75 mm × 55 mm
|
|
Net Weight
|
165.47 g
|
|
Connection Method
|
Screw connection (M3 thread)
|
|
Stripping Length
|
8 mm
|
|
Rigid Conductor Cross-Section
|
0.2 mm² – 4 mm²
|
|
Flexible Conductor Cross-Section
|
0.2 mm² – 2.5 mm²
|
|
AWG Wire Range
|
24 AWG – 12 AWG
|
|
Housing Color & Material
|
Green (RAL 6021), industrial flame-retardant plastic
|
|
Mounting Type
|
Standard DIN rail mounting, zero-spacing row assembly
|
|
Operating Temperature Range
|
-20 °C to +50 °C
|
|
Storage & Transport Temperature
|
-40 °C to +70 °C
|
|
Compliance Standards
|
CE, EU RoHS, EN 61326, DIN EN 50178
|
|
Mounting Position
|
Arbitrary installation orientation
|
