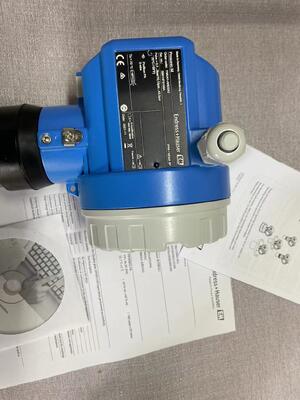

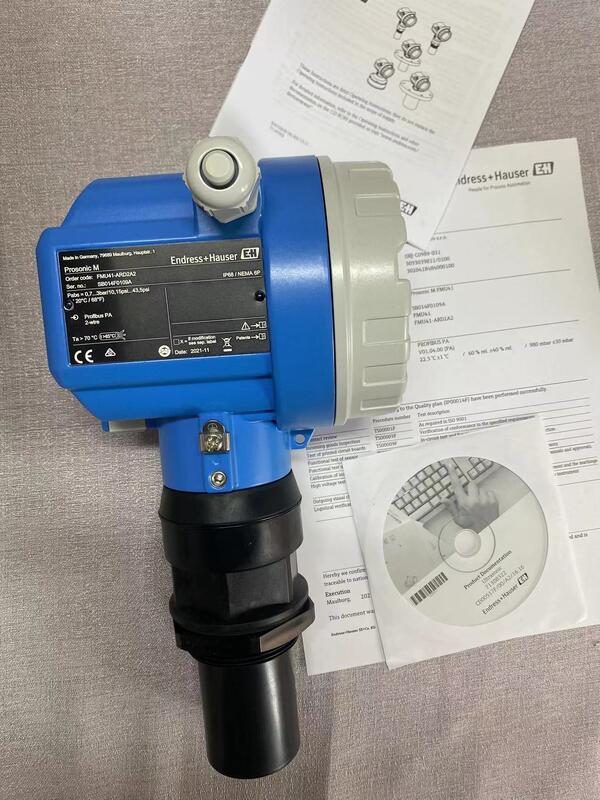

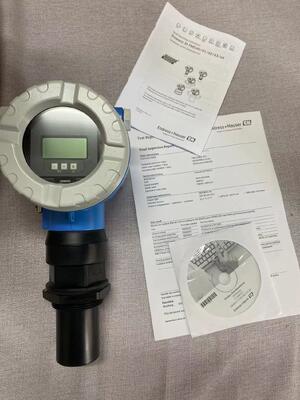

E+H FMU41-ARD2A2 Prosonic M Ultrasonic Level Transmitter
Product Details:
Manufacturer : Endress+Hauser
Product No. :FMU41-ARD2A2
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The E+H FMU41-ARD2A2 is an integrated compact ultrasonic level transmitter under Endress+Hauser Prosonic M series, adopting Time-of-Flight ultrasonic measuring principle for continuous non-contact level detection of liquid, paste, sludge and bulk solid material. It also realizes open channel & weir flow calculation via built-in 32-point linear correction algorithm, eliminating mechanical contact wear and frequent routine maintenance. Equipped with 4-line multilingual local display and envelope curve diagnostic function, the FMU41-ARD2A2 supports both 2-wire and 4-wire power supply modes with standard HART communication, widely deployed in water treatment, chemical, food processing, mining bulk storage and petrochemical industries.
Detail:
| Parameter Item |
Technical Value |
| Model Code |
FMU41-ARD2A2 (E+H Prosonic M series) |
| Measuring Principle |
Ultrasonic Time-of-Flight (ToF) |
| Max Measuring Range |
Liquid:8m / Bulk Solid:3.5m |
| Measurement Accuracy |
±2mm or ±0.2% of full calibrated measuring range |
| Blind Zone |
0.25m |
| Output Signal |
Standard 4-20mA + HART protocol |
| Power Supply Mode |
2-wire DC 10.5~32VDC / 4-wire DC14~36VDC, AC90~253V 50/60Hz |
| Linear Correction |
Max 32 programmable correction points |
| On-site Display |
4-line multi-language digital display with envelope diagnostic curve |
| Communication Option |
HART(default), optional PROFIBUS PA / FOUNDATION Fieldbus |
| Spec Category |
Detailed Parameter |
| Wetted Sensor Material |
PVDF (anti-corrosion for most acid & alkaline medium) |
| Housing Material |
Coated Cast Aluminum |
| Process Connection |
ISO228 G2 Thread |
| Process Medium Temp |
-40°C ~ +80°C (-40°F~176°F) |
| Absolute Working Pressure |
0.7bar ~ 3bar abs (10~44PSI) |
| Ingress Protection Grade |
IP68 / NEMA 6P |
| Ambient Working Temperature |
-40°C ~ +80°C |
| Global Certifications |
ATEX, FM, CSA, NEPSI, TIIS explosion-proof approvals |
Brand
E+H is a global leader in providing measurement instruments, services, and solutions for the process and laboratory industries. Since its founding in 1953, the company has been committed to enhancing production efficiency, safety, and sustainability through innovative technologies. E+H’s product portfolio covers a wide range of areas, including flow measurement, level measurement, pressure and temperature measurement, analytical instrumentation, and data management. Its solutions are widely used in industries such as chemicals, food and beverage, oil and gas, power generation, and water and wastewater treatment.
