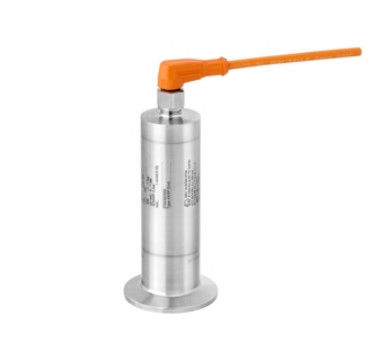

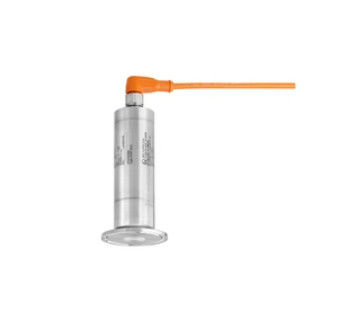

PMP23-AA1U1HBWSJ+QJ Endress Hauser PMP23 Absolute And Gauge Pressure Cerabar

Endress+Hauser PMP23-AA1U1HBWSJ+QJ Absolute and gauge pressure Cerabar PMP23

SPECIFICATIONS

• Approval: AA  Non-hazardous area
• Output: 1  4-20mA
• Electrical Connection: U  Valve plug ISO4400 M16, IP65 NEMA Type 4X Encl.
• Sensor Range: 1H  1bar/100kPa/15psi gauge, overload: 4bar/400kPa/60psi
• Calibration; Unit: B  Sensor range; mbar/bar
• Process Connection: WSJ  Thread ISO228 G1 seal O-ring 316L, flush mount, adapter, 3A, EHEDG
• >>Accessory Enclosed: QJ  Weld-in adapter G1, d=60, 316L, seal silicone O-ring, additional EPDM (EHEDG) O-ring, install > container

Specs at a glance
• Accuracy
  0.3%

• Process temperature
  -10…+100°C
  (+14…+212°F)
  135°C for 1h
  (275°F for 1h)

• Pressure measuring range
  400 mbar…+40 bar
  (6...+600psi)

• Measuring cell
  +400 mbar…+40 bar
  (+6 psi...+600 psi)

Field of application
The Cerabar PMP23 is a price-attractive and compact absolute or gauge pressure transmitter. The piezo-resistive measuring cell with flush-mounted 316L diaphragm was designed for applications in the hygienic industry. PMP23 offers various EHEDG and 3-A certified hygienic process connections, materials with FDA conformity, EG1935/2004 conformity, IP69 protection, optional IO-Link and hazardous area certificates. The device can be delivered with customized measuring ranges up to 40bar.

Pressure transducer to measure absolute or gauge pressure in gases or liquids.

• Process connections: Flush-mounted hygienic connections, flush mounted thread connections

• Process temperature: -10°C to +100°C (-40°F to +212°F) and +135°C (+275°F) for max. 1h

• Process pressure: 400mbar to +40bar (6 to 600psi)

• Accuracy: ±0.3% of span

• International explosion protection certificates, hygienic certificates

Benefits

• Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring ranges
• IO-Link reduces costs and complexity due to easy configuration via simple configuration tools or through the engineering system
• Fully welded process connections maximize process safety by minimizing the use of gaskets
• Enhanced process availability is ensured by the stringent use of 316L material and the possibility of IP 69 ingress protection for washdown conditions, as well as the high reproducibility and long-term stability of the product
• A high flexibility of use and therefore lower storage costs are guaranteed as the PMP23 is suitable for CIP / SIP cleaning
• The PMP23 can support the need for hygienic documentation and traceability in the plant as certification such as EHEDG, 3-A or (EC)1935/2004 are available among other relevant certificates and manufacturing declarations
