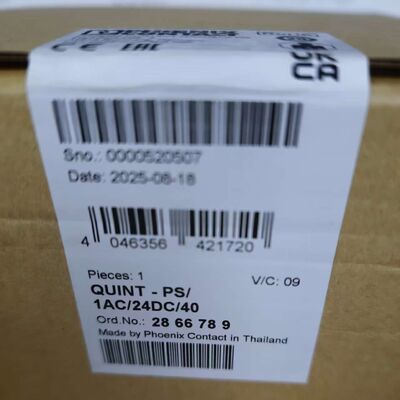

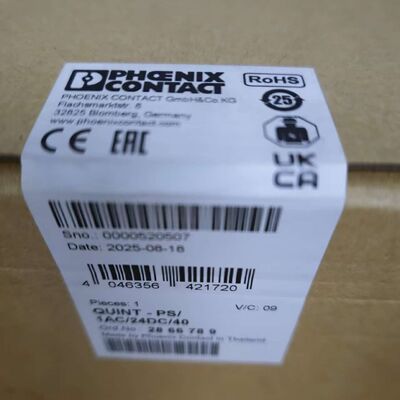

Phoenix Contact QUINT-PS/1AC/24DC/40 (2866789) Single-Phase DIN Rail Power Supply
Product Details:
Manufacturer : Phoenix Contact
Product No. : QUINT-PS/1AC/24DC/40 (2866789)
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
This unit integrates two core patented Phoenix Contact technologies: POWER BOOST and Selective Fuse Breaking (SFB). POWER BOOST delivers a stable 45A permanent extra current within -25°C to +40°C ambient to start high-inrush loads such as DC motors, contactors and solenoid banks. SFB outputs a 215A short-circuit peak for 12ms to selectively blow branch circuit fuses without tripping upstream cabinet breakers, maximizing system uptime. A floating potential-free relay contact provides remote diagnostics for overvoltage, undervoltage, overheating and power failure alerts. Wide universal 85–264V AC input eliminates regional voltage matching requirements, while >92% energy efficiency minimizes cabinet heat buildup. Compliant with global industrial safety, EMC and environmental standards, the unit is widely deployed in machine automation, packaging production lines, material handling systems and process control electrical enclosures.
Detail:
| Parameter Item |
Standard Spec of Phoenix Contact QUINT-PS/1AC/24DC/40 (2866789) |
| Brand |
Phoenix Contact |
| Full Model Code |
QUINT-PS/1AC/24DC/40 |
| Manufacturer Order Number |
2866789 |
| Product Series |
QUINT POWER Single-Phase Switched-Mode Power Supply |
| Input Type |
Single-Phase AC Wide Range Input |
| AC Input Operating Range |
85 V AC ~ 264 V AC |
| DC Alternative Input Range |
90 V DC ~ 350 V DC |
| Nominal Input Current (230 V AC) |
4.7 A |
| Nominal Input Current (110 V AC) |
9.5 A |
| Nominal Apparent Power Consumption |
1157 VA |
| Typical Inrush Current |
< 15 A |
| Power Factor (cos φ) |
0.88 |
| Internal Input Fuse |
20 A Slow-Blow Glass Fuse |
| Recommended Upstream Circuit Breaker |
16 A ~ 20 A (B/C/D/K characteristic) |
| Mains Hold-Up Time |
> 35 ms @ 120 V AC; > 35 ms @ 230 V AC |
| Surge Protection Components |
Varistor + Gas-Filled Surge Arrester |
| Nominal DC Output Voltage |
24 V DC (Tolerance ±1%) |
| Output Voltage Adjustable Range |
18 V DC ~ 29.5 V DC |
| Nominal Continuous Output Current |
40 A (-25 ℃ ~ +60 ℃ ambient) |
| POWER BOOST Permanent Overload Current |
45 A (-25 ℃ ~ +40 ℃ ambient) |
| Selective Fuse Breaking (SFB) Peak Current |
215 A (12 ms duration) |
| Maximum Continuous Output Power |
960 W |
| Conversion Efficiency |
> 92% (230 V AC, full nominal load) |
| Output Characteristic Curve |
U/I Constant Voltage Regulation |
| Diagnostic Interface |
Potential-Free Floating Relay Contact |
| Ambient Operating Temperature |
-25 ℃ ~ +60 ℃ (derating above 60℃) |
| Storage & Transport Temperature |
-40 ℃ ~ +85 ℃ |
| Cooling Method |
Passive Natural Convection (Fanless) |
| Mounting Standard |
35 mm EN Top-Hat DIN Rail |
| Isolation Voltage (Input ↔ Output) |
4 kV AC |
| Protection Functions |
OVP, OCP, OTP, Short-Circuit Auto-Recovery |
| Net Unit Weight |
3.4 kg |
| Compliance Standards |
CE, UL 508, cULus, GL, IEC 61010-1, IEC 62477-1 |
| Component Name |
Raw Material Grade |
Functional Description for QUINT-PS/1AC/24DC/40 (2866789) |
| Main Outer Enclosure Housing |
Extruded Aluminum Alloy + Galvanized Steel Frame |
High thermal conductivity for passive heat dissipation, EMI shielding, mechanical impact resistance inside control cabinets |
| Front Control Panel |
Black Flame-Retardant PA66 Plastic (UL94 V0) |
Houses voltage trim potentiometer, LED status indicators, terminal marking labels, diagnostic relay wiring terminals |
| Input/Output Screw Terminal Blocks |
Nickel-Plated Copper Conductors + PA66 Insulator |
Large wire clamping range, vibration-resistant screw locking for power cable connection, industrial anti-loosening design |
| Main Power Transformer |
Laminated Silicon Steel Core + Enameled Copper Windings |
Low magnetic loss, stable power conversion under continuous 40A full load |
| Primary/Secondary Switching MOSFETs |
Industrial Silicon Power Semiconductors |
High-speed energy conversion core component, supports wide input voltage fluctuation |
| Output Electrolytic Filter Capacitors |
Low-ESR High-Temperature Electrolytic Aluminum Capacitors |
Suppress DC output voltage ripple, extend service life under cyclic industrial load variation |
| SFB Short-Circuit Current Circuit PCB |
FR4 High-Tg Flame-Retardant Printed Circuit Board |
Integrates proprietary SFB gate drive circuit to generate selective short-circuit peak current |
| Diagnostic Relay Module |
Silver Alloy Contact Coil Relay |
Potential-free floating contact for remote cabinet PLC fault signal transmission |
| Heat Sink Internal Fins |
Die-Cast Aluminum Alloy |
Optimized airflow channel design to dissipate switching loss heat without cooling fans |
| DIN Rail Mounting Lock Clip |
Spring-Tempered Galvanized Steel |
Quick snap-on rail installation, vibration lock for heavy cabinet vibration environments |
| Internal Insulating Spacers |
Silicone-Free Fiberglass Reinforced Plastic |
High dielectric isolation between high-voltage input and low-voltage output circuits |
