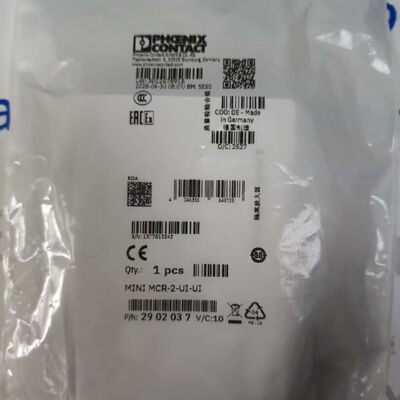

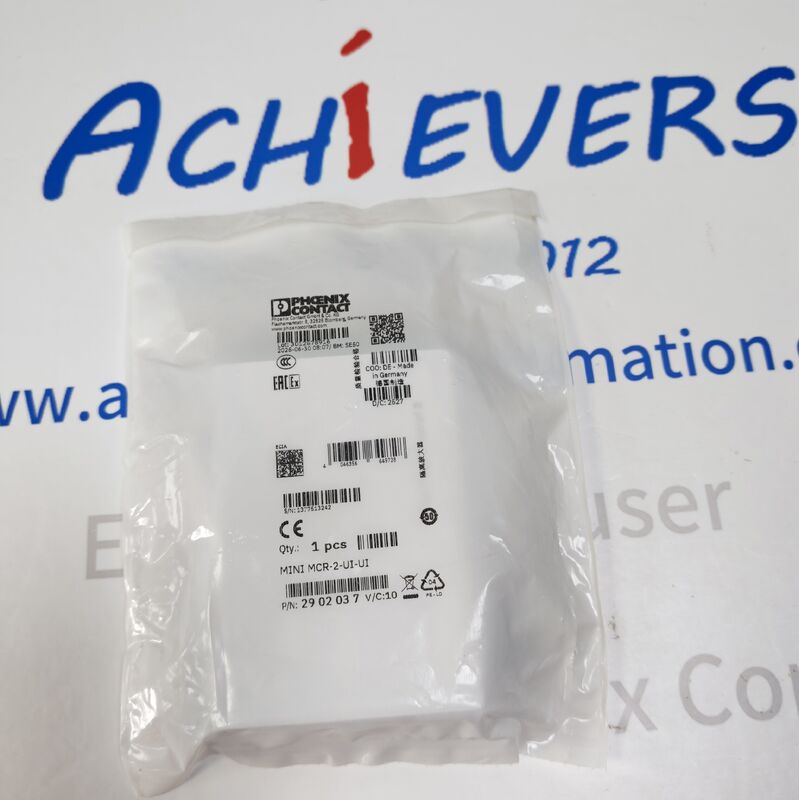

Phoenix Contact MINI MCR-2-UI-UI 3-Way Isolated Signal Conditioner
Product Details:
Manufacturer : Phoenix Contact
Product No. : MINI MCR-2-UI-UI
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Phoenix Contact MINI MCR-2-UI-UI belongs to the MINI Analog Pro signal conditioning series. This compact module delivers three-way galvanic isolation between input, output and power supply to suppress ground loop interference in analog measurement circuits.
Both input and output signal ranges can be flexibly configured through onboard DIP switches without additional software. It supports common unipolar and bipolar standard analog voltage and current signals widely used in process automation. Automatic calibration eliminates manual trimming after range switching. Built-in signal filtering improves stability in noisy industrial environments. The narrow 6.2 mm housing enables high-density installation on standard 35 mm DIN rails. Screw terminal connection provides reliable wiring for field instrumentation loops.
Detail:
| Parameter |
Specification |
| Model Number |
MINI MCR-2-UI-UI |
| Brand |
Phoenix Contact |
| Series |
MINI Analog Pro |
| Product Type |
3-Way Isolated Analog Signal Conditioner |
| Isolation Mode |
Reinforced isolation, Input / Output / Power separated |
| Isolation Test Voltage |
3 kV AC (50 Hz, 60 s) |
| Rated Insulation Voltage |
300 V |
| Supply Voltage Range |
9.6 VDC ~ 30 VDC |
| Typical Power Consumption |
≤ 800 mW |
| Input Signal Types |
Voltage / Current configurable via DIP switch |
| Available Input Ranges |
0/4–20 mA, -20–20 mA; 0–5 V, 1–5 V, 0–10 V, -10–10 V, 0–20 V, -20–20 V |
| Available Output Ranges |
0/4–20 mA, 0–5 V, 1–5 V, 0–10 V, -10–10 V |
| Max Transmission Error |
≤ 0.1 % of full scale |
| Temperature Coefficient |
≤ 0.01 % / K |
| Filter Options |
Adjustable low-pass filter |
| Step Response Time (10–90 %) |
≤ 8.5 ms |
| Current Output Max Load |
≤ 600 Ω (@20 mA) |
| Voltage Output Min Load |
≥ 10 kΩ |
| Parameter |
Specification |
| Housing Width |
6.2 mm |
| Mounting Standard |
35 mm DIN rail (EN 60715) |
| Connection Type |
Screw terminal (M3) |
| Suitable Conductor Cross Section |
0.14 mm² ~ 2.5 mm² |
| Housing Material |
Flame-retardant PBT plastic |
| Protection Class |
IP20 (for cabinet installation) |
| Operating Ambient Temperature |
-25 °C ~ +60 °C |
| Storage Temperature |
-40 °C ~ +85 °C |
| Relative Humidity |
5 % ~ 95 %, non-condensing |
| Product Net Weight |
Approx. 45 g |
| Overvoltage Category |
II |
| Pollution Degree |
2 |
| Certifications |
CE, RoHS |
| Installation Orientation |
Unlimited |
