Phoenix Contact QUINT-UPS24DC24DC20-03 24VDC 20A Industrial DC UPS Module
Product Details:
Manufacturer : Phoenix Contact
Product No. : QUINT-UPS24DC24DC20-03
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

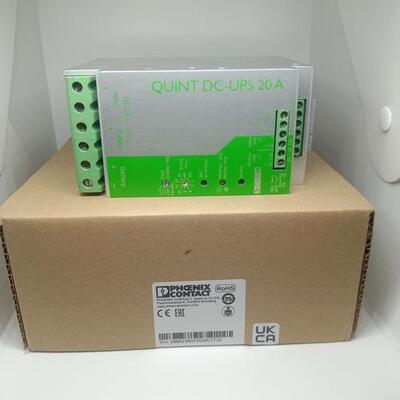

The Phoenix Contact QUINT-UPS24DC24DC20-03 is a high-efficiency industrial DC uninterruptible power supply module designed for 24 V DC automation systems. Delivering a stable 20 A output current and 480 W rated power, this QUINT-series UPS ensures continuous, disturbance-free power supply for sensitive industrial loads during mains voltage drops or power failures.
Equipped with advanced IQ intelligent battery management technology, the QUINT-UPS24DC24DC20-03 supports flexible battery capacity ranging from 3 Ah to 200 Ah with automatic temperature compensation, optimizing battery charging efficiency and extending service life. Featuring ultra-high 98% operating efficiency in both mains and battery modes, the module minimizes power loss and heat generation for energy-saving cabinet operation.
Detail:
|
Technical Item
|
Parameter Value
|
|
Product Model
|
QUINT-UPS24DC24DC20-03
|
|
Manufacturer
|
Phoenix Contact
|
|
Manufacturer Item Code
|
2320238
|
|
Product Type
|
Industrial DC Uninterruptible Power Supply
|
|
Input Voltage Range
|
18 V DC – 30 V DC (Nominal 24 V DC)
|
|
Output Voltage (Mains Mode)
|
18 V DC – 30 V DC (Nominal 24 V DC)
|
|
Output Voltage (Battery Mode)
|
19.2 V DC – 27.6 V DC
|
|
Nominal Output Current
|
20 A (-25 °C to 60 °C)
|
|
POWER BOOST Current
|
26 A (Mains) / 27 A (Battery)
|
|
SFB Short-Circuit Current
|
120 A (12–15 ms duration)
|
|
Rated Output Power
|
480 W
|
|
Efficiency Rating
|
98% (Mains & Battery Operation)
|
|
Battery Capacity Support
|
3 Ah – 200 Ah
|
|
Charging Current Range
|
0.2 A – 5 A (Adaptive)
|
|
Temperature Compensation
|
42 mV/K (Preset)
|
|
Parallel Operation
|
Max 2 modules for redundancy
|
|
Signal Output Type
|
3 Floating relay contacts (Power OK / Battery Charge / Battery Mode)
|
|
Physical & Environmental Item
|
Parameter Value
|
|
External Dimensions (W × H × D)
|
40 mm × 130 mm × 125 mm
|
|
Net Weight
|
601 g
|
|
Housing Material
|
Zinc-plated steel sheet + AlMg3 aluminum alloy
|
|
Ingress Protection Rating
|
IP20
|
|
Mounting Type
|
Standard NS 35 DIN rail mounting
|
|
Connection Method
|
M4 screw connection
|
|
Main Circuit Wire Range
|
0.2–6 mm² (rigid) / 0.2–4 mm² (flexible)
|
|
Signal Circuit Wire Range
|
0.2–4 mm² (rigid) / 0.2–2.5 mm² (flexible)
|
|
Tightening Torque
|
0.5 Nm – 0.6 Nm
|
|
Operating Temperature Range
|
-25 °C to +70 °C (2.5%/K derating above 60 °C)
|
|
Storage Temperature Range
|
-40 °C to +85 °C
|
|
Max Relative Humidity
|
≤95% (Non-condensing, 25 °C)
|
|
MTBF (@40 °C)
|
>500,000 hours
|
|
Shock & Vibration Resistance
|
30g mechanical shock, industrial vibration compliance per IEC 60068
|
|
Compliance & Approvals
|
UL 508, EN 60950-1, EN 50178, EMC 2014/30/EU, Low Voltage 2014/35/EU
|
