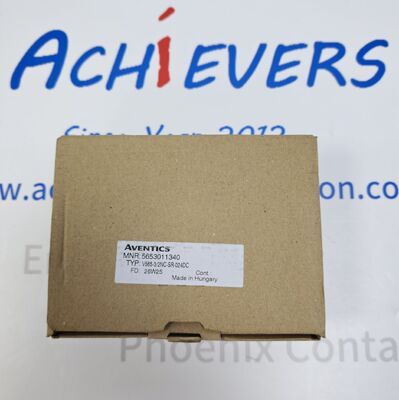

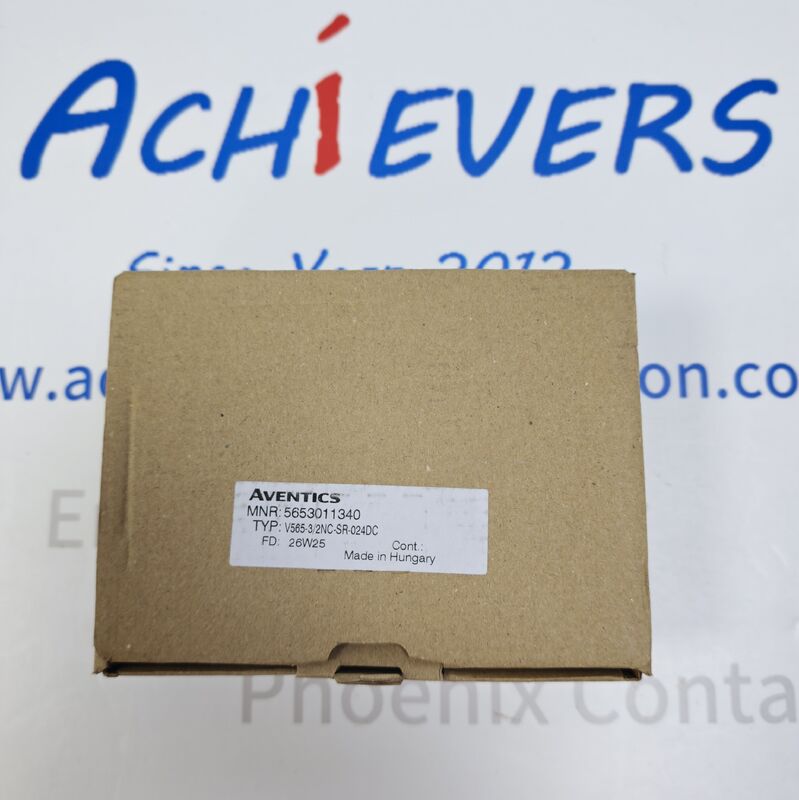

AVENTICS V565-32NC-SR-024DC 3/2-Way Poppet Solenoid Directional Valve
Description:
Manufacturer : AVENTICS
Product No. : V565-32NC-SR-024DC
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The AVENTICS V565-3/2NC-SR-024DC (Part No. 5653011340) is a high-flow poppet-type directional valve from AVENTICS Series 565 product family. This 3/2-way normally closed solenoid valve features spring return design and supports both internal and external pilot air supply.
Constructed with robust die-cast aluminum valve body, it delivers large airflow capacity suitable for driving large bore single-acting cylinders, pneumatic clutches and venting circuits. Equipped with detent-type manual override for on-site machine commissioning without electrical power. The valve adopts base plate manifold mounting structure, compatible with modular valve subbases. Standard EN 175301-803 Form A electrical connector ensures reliable solenoid connection. The integrated 24 VDC coil supports continuous 100% duty cycle for non-stop industrial operation.
Detail:
| Parameter |
Specification |
| Model Number |
V565-3/2NC-SR-024DC (5653011340) |
| Brand |
AVENTICS |
| Series |
Series 565 Heavy-Duty Directional Valve |
| Valve Function |
3/2-way, Normally Closed, Spring Return |
| Valve Construction |
Poppet Type |
| Nominal Flow Qn |
4240 l/min |
| Operating Pressure Range |
3.5 bar ~ 10 bar |
| Pilot Pressure Range |
3.5 bar ~ 10 bar |
| Pilot Mode |
Internal / External pilot optional |
| Operating Medium |
Filtered compressed air (max particle size 5 µm) |
| Compressed Air Oil Content |
0 ~ 5 mg/m³ |

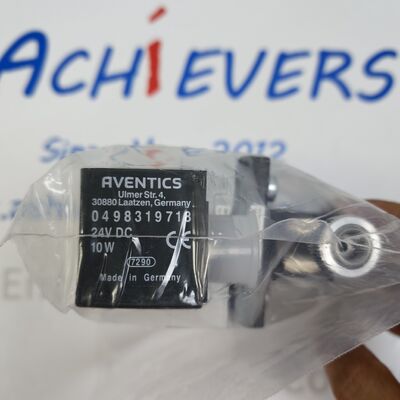

| Solenoid Voltage |
24 V DC |
| Coil Power Consumption |
10 W |
| Voltage Tolerance |
-10% / +10% |
| Duty Cycle |
100% ED Continuous Operation |
| Electrical Connection |
EN 175301-803 Form A |
| Manual Override |
Detent lockable type |
| Parameter |
Specification |
| Housing Material |
Die-cast Aluminium Alloy |
| Seal Material |
Nitrile Rubber (NBR) |
| Connection Type |

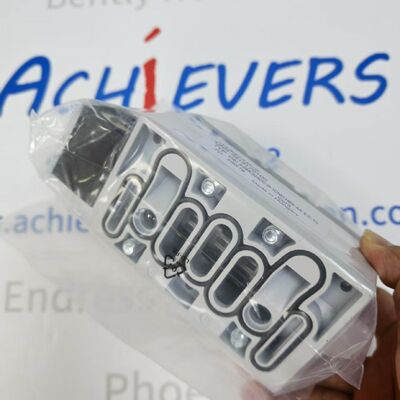

Base Plate / Manifold Mounting |
| Ambient Operating Temperature |
-20 °C ~ +50 °C |
| Medium Temperature Range |
-20 °C ~ +50 °C |
| Storage Temperature |
-25 °C ~ +60 °C |
| Protection Class (with matched connector) |
IP65 |
| Mounting Orientation |
Unlimited installation direction |
| Compliance Standards |
CE, RoHS |
| Vibration Resistance |
Compliant with IEC 60068-2-6 |
| Approximate Unit Weight |
1100 g |
