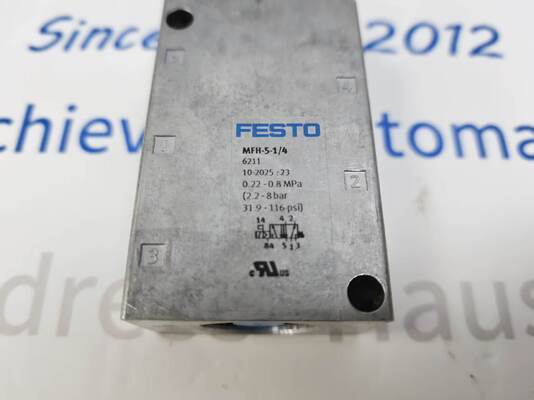

Festo MFH-5-14 Way Pilot Solenoid Valve
Description:
Manufacturer : Festo
Product No. : MFH-5-14
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The FESTO MFH-5-1/4 belongs to the classic MFH series poppet solenoid valves widely used in factory pneumatic automation. This unit adopts a 5/2-way monostable design with mechanical spring reset, controlled by external pilot air.
The valve body is constructed from die-cast aluminum with NBR soft sealing, delivering reliable performance and long service life. The MFH-5-1/4 is supplied without solenoid coil; coils must be selected and ordered separately. It supports manifold rail mounting or standalone through-hole installation. Built-in detenting manual override enables convenient on-site commissioning without power supply. Throttle adjustable exhaust ports provide flexible speed regulation for pneumatic actuators.
Detail:
| Parameter |
Specification |
| Model Number |
MFH-5-1/4 |
| Brand |
FESTO |
| Valve Function |
5/2-way, monostable (spring return) |
| Operating Principle |
Pilot operated poppet valve |
| Pneumatic Port Size |
G1/4 |
| Nominal Size |
7 mm |
| Standard Flow Rate |
1000 l/min (DIN 1343) |
| C Value |
4.49 l/s·bar |
| b Value |
0.19 |
| Operating Pressure |
2.2 bar ~ 8 bar |
| Pilot Pressure Range |
1.5 bar ~ 8 bar |
| Switch-on Time |
9 ms |
| Switch-off Time |
29 ms |
| Operating Medium |
Compressed air ISO 8573-1:2010 [7:4:4] |
| Lubrication |
Lubricated or non-lubricated operation |
| Reset Method |
Mechanical spring |
| Parameter |
Specification |
| Housing Material |
Die-cast aluminium |
| Seal Material |
NBR |
| Construction Width |
30.5 mm |
| Grid Dimension |
32 mm |
| Product Weight |
290 g |
| Ambient Operating Temperature |
-5 °C ~ +40 °C |
| Medium Temperature |
-10 °C ~ +60 °C |
| Storage Temperature |
-20 °C ~ +60 °C |
| Protection Class |
IP65 (with suitable solenoid coil) |
| Manual Override |
Detenting type |
| Pilot Exhaust Port |
M5 thread |
| Mounting Options |
Through-hole mounting / manifold rail PR |
| Flow Direction |
Non-reversible |
| Certification |
c UL us Recognized, CE |
| Corrosion Resistance Class |
CRC 1 |
| LABS Compliance |
VDMA 24364-B1/B2-L |
