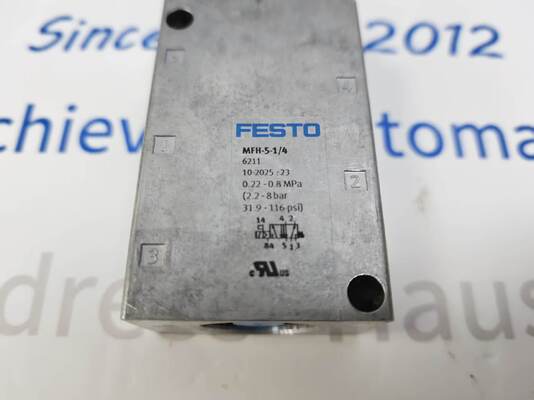

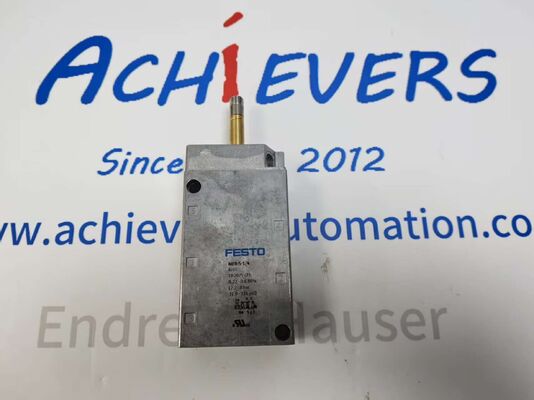

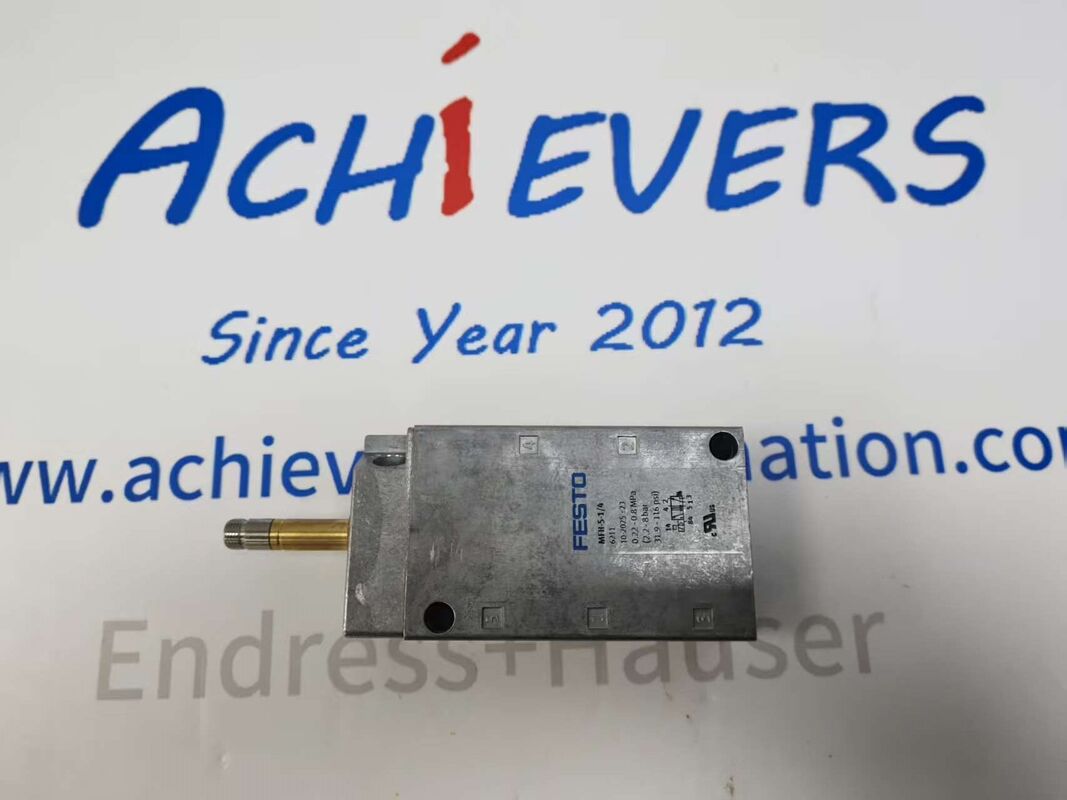

Festo MFH-5-1/4 Pilot Poppet Solenoid Valve
Description:
Manufacturer : Festo
Product No. : MFH-5-1/4
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Festo MFH-5-1/4 (short notation MFH-5-14) is a widely used 5/2 single-solenoid pilot poppet valve from Festo’s classic MFH series, designed for directional control of single and double-acting pneumatic cylinders. It adopts a mechanical spring return design, delivering stable air flow switching for general automation machinery.
Detail:
| Parameter Category |
MFH-5-1/4 Standard Configuration Value |
| Manufacturer |
Festo SE & Co. KG |
| Full Model Code |
MFH-5-1/4 (short name MFH-5-14), Item No. 6211 |
| Product Series |
MFH Classic Poppet Solenoid Valve |
| Valve Function |
5/2 way, single solenoid, mechanical spring return |
| Internal Structure |
Poppet seat soft sealing design |
| Nominal Orifice Size |
7 mm |
| Standard Flow Rate |
1000 l/min (DIN 1343) |
| Flow Coefficient C value |
4.49 l/s·bar |
| Pneumatic Port Thread |
G1/4 female for ports 1,2,3,4,5 |
| Pilot Exhaust Port |
M5 thread |
| Grid Mount Dimension |
32 mm |
| Housing Material |
Die-cast aluminum alloy |
| Seal Material |
NBR nitrile rubber |
| Manual Override |
Detenting lockable test button |
| Mounting Options |
Standalone through-hole mounting / manifold rail stacking |
| Complete Unit Net Weight |
290 g |
| Corrosion Resistance Class |
CRC 1 (low corrosion stress) |
| Performance Item |
Rated Technical Parameter |
| Operating Pressure Range |
2.2 bar ~ 8 bar (0.22 MPa ~ 0.8 MPa) |
| Pilot Supply Pressure |
1.5 bar ~ 8 bar |
| Operating Medium |
Filtered compressed air ISO 8573-1:2010 [7:4:4] |
| Media Temperature Range |
-10 °C ~ +60 °C |
| Ambient Operating Temperature |
-5 °C ~ +40 °C |
| Storage Temperature |
-20 °C ~ +60 °C |
| Ingress Protection Grade |
IP65 |
| Switching Time (On) |
9 ms |
| Switching Time (Off) |
29 ms |
| Exhaust Function |
Throttleable flow control on exhaust ports |
| Electrical Connection |
Separate F-series solenoid coil (ordered individually) |
| Permissible Humidity |
5% – 90%, non-condensing |
| Compliance Certifications |
cULus Recognized, CE, RoHS, VDMA LABS compliant |
| Flow Direction Limitation |
Non-reversible unidirectional air flow |
| Max Service Cycles |
≥10 million switching cycles |
