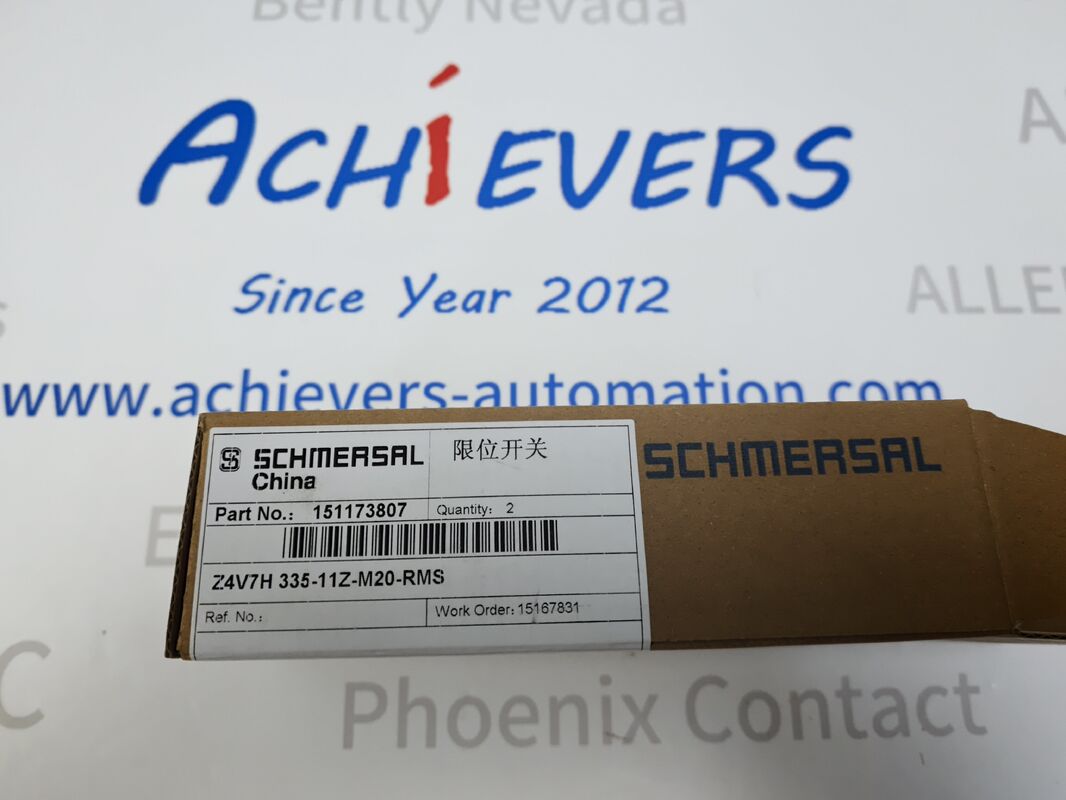

Schmersal Z4V7H 335-11Z-M20-RMS Roller Lever Position Limit Switch
Description:
Manufacturer : Schmersal
Product No. :Z4V7H 335-11Z-M20-RMS
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Schmersal Z4V7H 335-11Z-M20-RMS belongs to the Z4V7H standard position switch series, manufactured to EN 50041 specifications. This mechanical limit switch is equipped with an adjustable roller lever actuator for precise mechanical position feedback on automated machinery.
It adopts reliable snap-action switching mechanism with constant contact pressure, featuring 1 normally open and 1 normally closed contact set. The painted die-cast light alloy housing provides excellent resistance against oil, dust and mechanical impact. The actuator head can be rotated in four 90° increments to accommodate multiple installation orientations. Single M20×1.5 cable gland entry and screw terminal wiring simplify field wiring setup. This model is designed for general positioning monitoring applications in factory automation systems.
Detail:
| Parameter |
Specification |
| Model Number |
Z4V7H 335-11Z-M20-RMS |
| Brand |
Schmersal |
| Product Type |
Mechanical Position Limit Switch |
| Contact Configuration |
1 Normally Open (NO) + 1 Normally Closed (NC) |
| Switching Principle |
Snap-action |
| Contact Material |
Silver Alloy |
| Thermal Test Current |
10 A |
| Utilization Category AC-15 |
230 VAC / 4 A |
| Utilization Category DC-13 |
24 VDC / 4 A |
| Rated Insulation Voltage (Ui) |
500 V |
| Rated Impulse Withstand Voltage (Uimp) |
6 kV |
| Conditional Short-Circuit Current |
1000 A |
| Max Switching Frequency |
5000 operations/hour |
| Max Switchover Time |
< 2 ms |
| Parameter |
Specification |
| Actuating Element |
Adjustable Roller Lever (RMS) |
| Roller Material |
Brass |
| Minimum Actuating Torque |
0.3 Nm |
| Maximum Actuating Speed |
2.5 m/s |
| Housing Material |
Painted Die-cast Light Alloy |
| Cable Entry |
M20 × 1.5 Threaded Gland |
| Terminal Type |
Screw Terminals |
| Suitable Cable Cross Section |
0.75 mm² ~ 2.5 mm² |
| Protection Class |
IP65, IP67 |
| Operating Ambient Temperature |
-40 °C ~ +80 °C |
| Mechanical Service Life |
≥ 30,000,000 operations |
| External Dimensions |
L 57.3 mm × W 40.5 mm × H 173.5 mm |
| Compliance Standards |
EN IEC 60947-5-1, EN 50041 |
| Certifications |
CCC, cULus |
| Approximate Gross Weight |
285 g |
Brand
Schmersal is a German industrial low-voltage switch and machine control component company headquartered in Wuppertal, Germany, founded in 1945. After years of technological and product innovation, the company has developed into a global group company with approximately 1,300 employees worldwide and annual sales of 170 million euros. In addition, Shanghai Schmersal Electric Co., Ltd. is a leading domestic professional supplier of material conveying automation and monitoring. It was established in 1999 and is headquartered in the southern area of Shanghai Jinqiao Processing Zone. It is mainly engaged in product solutions and services of sensing technology, sensing measurement and control systems, and material conveying systems.
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, , YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
