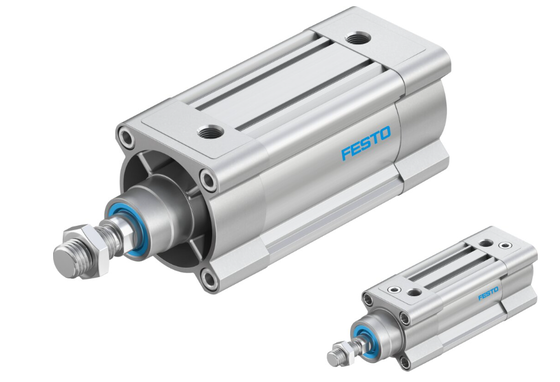

Festo DSBCG-100--ISO Standard Pneumatic Cylinder
Description:
Manufacturer : Festo
Product No. : DSBCG-100--
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Festo DSBCG-100-- belongs to the DSBCG standards-based pneumatic cylinder series, developed based on ISO 15552 international standard. It features a robust profile barrel structure, double-acting operation, and multi-option end cushioning systems. The DSBCG-100-- model comes with 100 mm piston bore, configurable stroke lengths, and reserved sensor grooves for proximity switch installation to achieve position feedback.
Modular design supports abundant customized variants for diverse industrial linear actuation scenarios. Interchangeable dimensions guarantee convenient replacement for legacy ISO cylinders in production lines.
Detail:
| Parameter |
Specification |
| Model Code |
DSBCG-100-- |
| Brand |
Festo |
| Product Series |
DSBCG Standard Profile Cylinder |
| Operating Principle |
Double-acting |
| Piston Bore |
100 mm |
| Available Stroke Range |
1 mm – 2800 mm |
| Piston Rod Thread |
M20×1.5 |
| Standard |
ISO 15552 |
| Pneumatic Connection |
G1/2 |
| Operating Pressure |
0.4 bar ~ 12 bar (0.04 MPa ~ 1.2 MPa) |
| Operating Medium |
Compressed air ISO 8573-1:2010 [7:4:4] |
| Theoretical Force (6 bar Advance) |
4712 N |
| Theoretical Force (6 bar Retract) |
4418 N |
| Cushioning Options |
P, PPV, PPS |
| Parameter |
Specification |
| Cylinder Barrel Material |
Smooth anodized wrought aluminum alloy |
| Piston Rod Material |
High-alloy polished steel |
| Seal Material |
TPE-U (PU) |
| Ambient Temperature Range |
-20 °C ~ +80 °C |
| Mounting Position |
Unlimited (any installation orientation) |
| Position Detection |
Support proximity sensor installation |
| Max Permissible Rod Torque |
3 Nm |
| Certification |
CE, RoHS, UKCA |
| Corrosion Resistance Class |
CRC 2 |
| LABS Compatibility |
VDMA 24364-B1/B2-L compliant |
