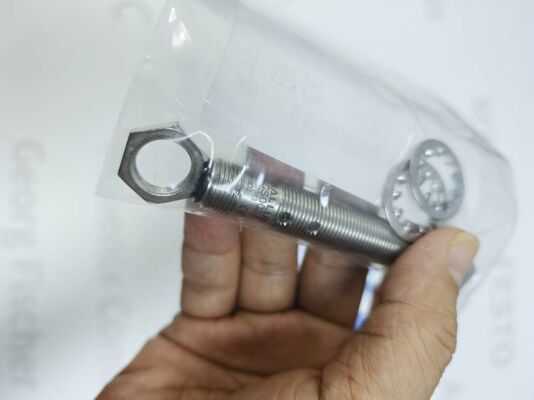

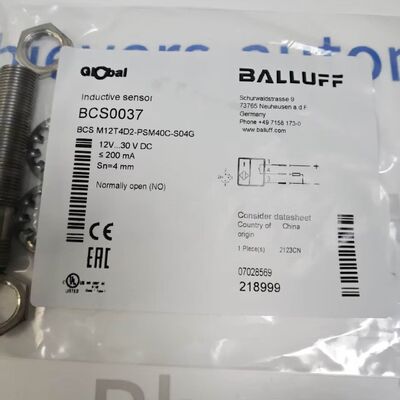

BALLUFF BCS M12T4D2-PSM40C-S04G Capacitive Proximity Sensor
Product Details:
Manufacturer : Balluff
Product No. : BCS M12T4D2-PSM40C-S04G
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The BALLUFF BCS M12T4D2-PSM40C-S04G (internal factory code BCS0037) is a compact M12 threaded capacitive proximity sensor designed for non-metallic and metallic object detection in automated industrial environments. Manufactured in Germany by Balluff, this flush-mount barrel sensor features adjustable 1–4 mm sensing distance, PNP normally open digital output, and rugged IP65 stainless steel housing suitable for machine tool, packaging, food processing and material handling systems.
Detail:
| Parameter Item |
Official Technical Value |
| Brand |
BALLUFF |
| Full Model Number |
BCS M12T4D2-PSM40C-S04G |
| Internal Article Code |
BCS0037 |
| Product Category |
Capacitive Proximity Sensor |
| Thread Dimension |
M12 x 1 fully threaded barrel |
| Overall Dimensions |
Ø12 mm × 60 mm total length |
| Mounting Type |
Flush mount (shielded installation) |
| Housing Material |
1.4301 stainless steel (304 grade) |
| Active Sensing Face Material |
PTFE (Polytetrafluoroethylene) |
| Connector Interface |
M12x1 male plug, 4-pin A-coded |
| Protection Class |
IP65 |
| Ambient Operating Temperature |
-30 °C ~ +70 °C |
| Storage Temperature Range |
-40 °C ~ +80 °C |
| Net Product Weight |
0.036 kg |
| Included Accessories |
2 stainless steel mounting lock nuts |
| Country of Manufacture |
Germany |
| Compliance Certifications |
CE, cULus, IEC 60947-5-2, RoHS, WEEE |
| Electrical Parameter |
Rated Performance Value |
| Operating Supply Voltage (Ub) |
12 VDC ~ 35 VDC |
| Rated Insulation Voltage (Ui) |
75 VDC |
| Max Permissible Ripple Voltage |
10% of nominal supply voltage |
| Nominal Sensing Distance (Sn) |
4 mm (adjustable range: 1 mm – 4 mm) |
| Switching Output Type |
PNP Normally Open (NO) |
| Max DC Switching Load Current |
200 mA |
| Static Max Voltage Drop |
1.5 V |
| Max Switching Frequency |
100 Hz |
| Max Hysteresis |
15% of rated sensing distance |
| Max Repeat Accuracy Deviation |
2% of rated sensing distance |
| Max Temperature Drift |
20% of rated sensing distance |
| Built-in Protections |
Reverse polarity protection, short-circuit protection, overload protection |
| Utilization Category |
DC-13 |
| MTTF Service Life (40°C Environment) |
584 years |
Brand:
BALLUFF is a world-leading manufacturer of sensors founded in 1921 and is headquartered in Noinhausen, under Stuttgart, Germany. They provide innovative and practical sensing solutions, which are widely used in automobiles, metallurgy, machine tools, wind power and other industries. Baluf's product line includes photoelectric switches, proximity switches, capacitive switches, magnetically sensitive switches, linear displacement sensors, RFID recognition systems, etc.
