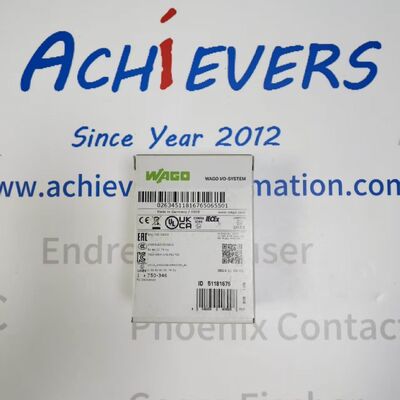

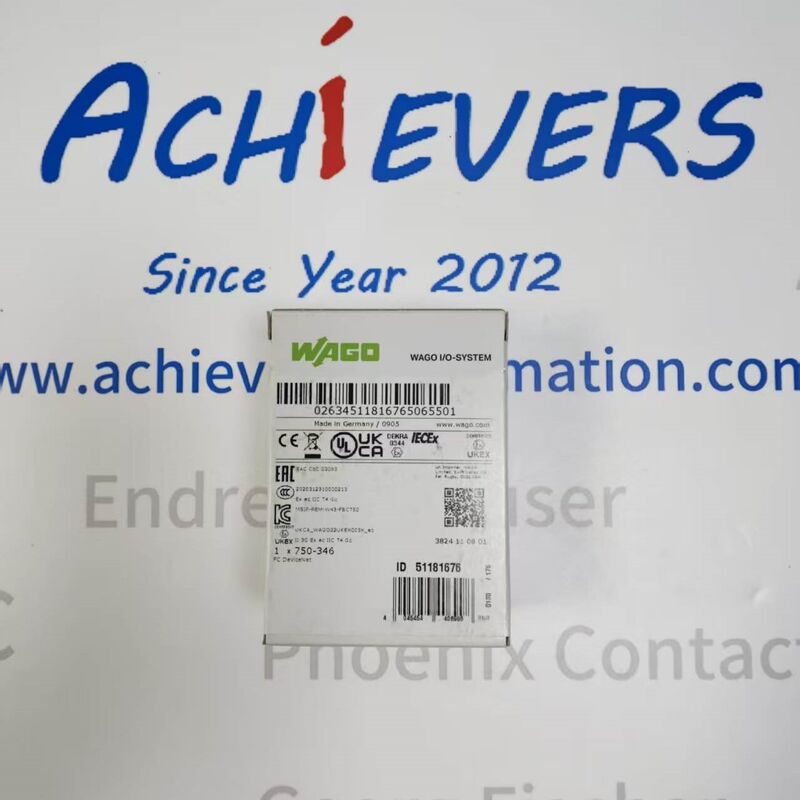

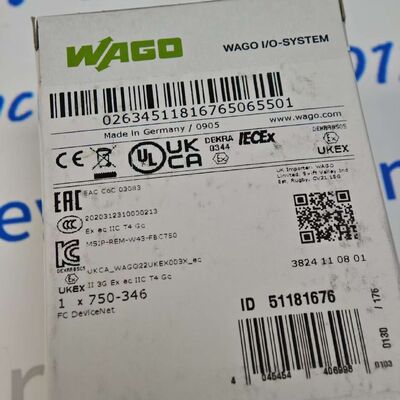

WAGO 750-346 Fieldbus Coupler DeviceNet ECO | Industrial I/O Module
Product Details:
Manufacturer :WAGO
Product No : 750-346
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Built with WAGO patented CAGE CLAMP spring connection technology, the 750-346 eliminates loose wiring risks in harsh industrial environments. It features multi-status LED indicators, DIP switches for MAC ID and baud rate configuration, and standard DIN-35 rail mounting for cabinet integration. Rated IP20 for indoor control cabinet deployment, it operates stably across wide industrial temperature ranges for machinery, packaging, material handling, and process automation systems.
Detail:
| Parameter Category |
Specification Details |
| Manufacturer Part Number |
750-346 |
| Brand |
WAGO |
| Product Type |
DeviceNet ECO Fieldbus Coupler (Remote I/O Head) |
| Supported Protocol |
DeviceNet |
| System Supply Voltage |
24 VDC, tolerance -15% ~ +20% |
| Max Baud Rate |
125 kBd / 250 kBd / 500 kBd (configurable via DIP switch) |
| Max Modules Per Single Node |
64 pcs WAGO 750 series I/O modules |
| Max Process Image |
32 Byte Input / 32 Byte Output |
| Fieldbus Max Segment Length |
500 m (shielded copper cable) |
| System 5V Current Draw |
350 mA |
| Total System Supply Current |
650 mA |
| Typical 24V Load Input Current |
260 mA |
| Power Supply Efficiency (Nominal) |
80% |
| Galvanic Isolation |
500 V between system bus and fieldbus |
| Status Indicators |
MS (Module Status), NS (Network Status), RUN, BUS OFF, CONNECT, I/O LED |
| Mechanical & Environmental Item |
Technical Value |
| Mounting Standard |
DIN-35 top hat rail |
| Overall Dimensions (W × H × D) |
50 mm × 65 mm × 97 mm |
| Net Weight |
115 g |
| Protection Class |
IP20 (for control cabinet use only) |
| Operating Ambient Temperature |
0 °C ~ +55 °C |
| Storage / Transport Temperature |
-25 °C ~ +70 °C |
| Fieldbus Connector |
5-pole male MCS connector (Series 231) |
| System Supply Connection |
CAGE CLAMP spring terminal |
| Conductor Cross Section (Solid/Fine-stranded) |
0.08 – 2.5 mm² (28 – 14 AWG) |
| Wire Strip Length |
5 – 6 mm |
| Configuration Interface |
4-pole pluggable service connector |
| Enclosure Color |
Light gray industrial plastic housing |
Brand
WAGO is a well-known brand headquartered in Germany, founded in 1951, focusing on electrical connections and automation solutions. The company is known for its innovative spring connection technology. Its main products include electrical connectors, terminal blocks, I/O systems and automation equipment, which are widely used in multiple industries such as factory automation, building automation and energy management. WAGO is committed to providing high-quality, reliable and sustainable products and has become one of the leaders in the global industrial automation field.
