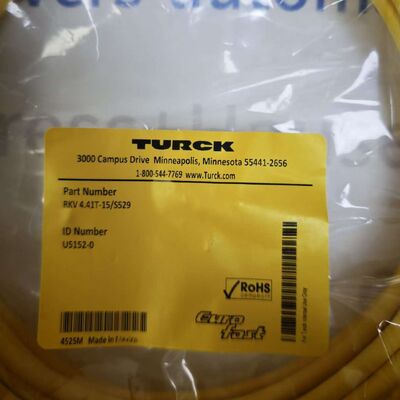

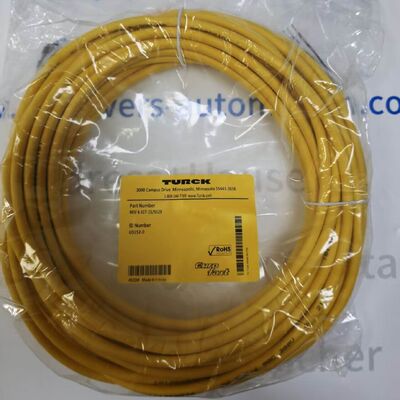

Turck RKV 4.41T-15S529 M12 Single-End Cordset Eurofast Sensor Actuator Cable
Product Details:
Manufacturer :Turck
Product No. :RKV 4.41T-15S529
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

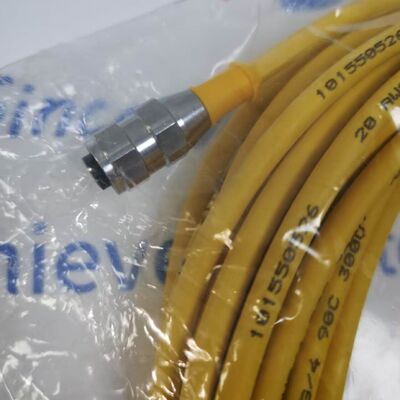

Classified under Turck RKV single-ended cable family, the RKV 4.41T-15S529 adopts stainless steel coupling nut for enhanced corrosion resistance, yellow PVC outer jacket, and 4×20AWG tinned copper internal conductors. It complies with IEC 61076-2-101 M12 connector standards and achieves IP68 ingress protection when fully tightened, supporting stable signal transmission in machine tools, packaging lines, material handling and process control cabinets.
Detail:
| Specification Group |
Parameter Value |
| Manufacturer Part Number |
RKV 4.41T-15S529 (Alias: RKV4.41T-15/S529) |
| Brand |
Turck |
| Product Series |
Eurofast RKV Single-End Cordset |
| Connector Form Factor |
M12 ×1 Straight Female, A-coded |
| Contact Quantity |
4 pins |
| Rated Voltage |
250 VAC |
| Rated Current Per Conductor |
4 A |
| Contact Material & Plating |
Brass base with gold plating |
| Coupling Nut Material |
Stainless steel passivated |
| Recommended Tightening Torque |
0.8 – 1.0 Nm |
| Mechanical Mating Lifespan |
Over 100 insertion/extraction cycles |
| Protection Class (Assembled) |
IP68, IP69K |
| NEMA Environmental Rating |
NEMA 1, 3, 4, 6P |
| Internal Wire Configuration |
4 × 20 AWG tinned copper conductors |
| Standard Cable ID |
RF50526-M |
| Pollution Degree |
3 (Industrial cabinet & machine installation) |
| Mechanical & Environmental Item |
Technical Standard |
| Total Cable Length |
15 m (49 ft), tolerance: +50mm / -0mm or 4% length |
| Outer Jacket Material |
PVC, industrial yellow |
| Cable Outer Diameter |
Ø5.33 mm |
| Cable Construction |
Unshielded multi-core flexible cordset |
| Wire Strip Length (Bare End) |
Pre-stripped flying leads |
| Operating Ambient Temperature |
-40 °C to +90 °C |
| Storage & Transport Temperature |
-45 °C to +100 °C |
| Minimum Cold Bend Temperature |
-40 °C (UL certified) |
| Flex Life Rating |
10 million cycles with 20× cable diameter bending radius |
| Molded Connector Body Material |
TPU high-impact plastic |
| Internal Seal Material |
FKM/FPM O-ring oil-resistant seal |
| RoHS Compliance |
Fully RoHS compliant |
| Cable Flame Rating |
UL standard cold bend & low-smoke PVC |
| Cable Termination Style |
Single-ended: molded M12 female / open bare flying leads |
