MOXA ioLogik E1240 Remote Ethernet I/O Module
Product Details:
Manufacturer : MOXA
Product No. : ioLogik E1240
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
MOXA ioLogik E1240 is a high-reliability 8-channel analog input remote Ethernet I/O module from MOXA (MOXA Inc.), specifically engineered for industrial automation and IIoT scenarios that require accurate remote data acquisition and stable connectivity. As a key product of MOXA’s ioLogik E1200 series, the ioLogik E1240 features 8 differential analog input channels, built-in 2-port Ethernet switch for daisy-chain topologies, and support for multiple industrial protocols, enabling seamless integration into existing industrial control systems. With its robust isolation protection, wide operating temperature range, and easy configuration tools, the MOXA ioLogik E1240 is widely used in energy monitoring, facility monitoring, factory automation, and remote sensor data acquisition applications, delivering consistent and precise performance even in harsh industrial environments.
Description:
|
Parameter
|
Specification
|
|
Model
|
MOXA ioLogik E1240
|
|
Series
|
MOXA ioLogik E1200 Series
|
|
Product Type
|
Remote Ethernet I/O Module with 8-Channel Analog Input
|
|
Analog Input Channels
|
8 Channels, Differential Input
|
|
Input Modes
|
0-10 VDC (Voltage), 0-20 mA, 4-20 mA (Current)
|
|
Resolution
|
16 Bits
|
|
Accuracy
|
±0.1% FSR @ 25°C; ±0.3% FSR @ -10°C/60°C; ±0.5% FSR @ -40°C/75°C
|
|
Sampling Rate
|
12 Samples/sec (all channels); 12 Samples/sec (single channel)
|
|
Isolation Protection
|
3 kV DC or 2 kV RMS
|
|

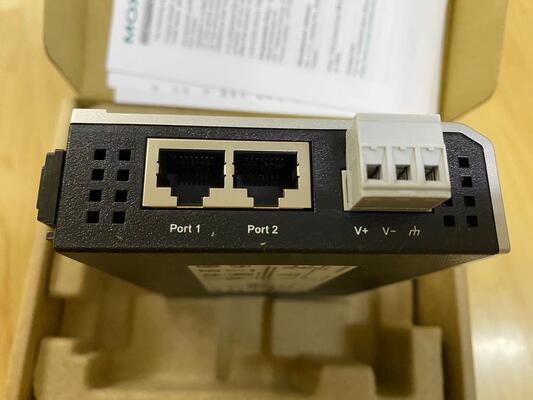

Ethernet Ports
|
2 x 10/100 Mbps RJ45, Switched
|
|
Power Supply
|
12-36 VDC (nominal 24 VDC), Power Consumption: 121 mA @ 24 VDC
|
|
Operating Temperature Range
|
Standard: -10°C to 60°C; Wide-Temp: -40°C to 75°C (non-condensing)
|
|
Storage Temperature Range
|
-40°C to 85°C (non-condensing)
|
|
Relative Humidity
|
5% ~ 95% RH (non-condensing)
|
|
MTBF
|
474,053 Hours (Telcordia SR 332 Standard)
|
|
Category
|
Details
|
|
Housing Material
|
Industrial-Grade Plastic with Protective Coating
|
|
Dimensions (W x H x D)
|
27.8 mm x 124 mm x 84 mm (1.09 x 4.88 x 3.31 inches)
|
|
Mounting Type
|
DIN-Rail Mounting, Wall Mounting
|
|
Weight
|
Under 200 g (0.44 lb)
|
|
Wiring Specifications
|
I/O Cable: 16-26 AWG; Power Cable: 12-24 AWG; Max 14 AWG
|
|
Configuration Tools
|
MOXA IO Search Utility, MXIO Library (Windows/Linux), RESTful API
|
|
Environmental Resistance
|
Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6)
|
|
Safety & EMC Certifications
|
CE, RoHS, CROHS, WEEE, UL 508, ATEX Zone 2, UL/CUL Class I Division 2
|
|
EMC Compliance
|
EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4 Series
|
|
Altitude
|
Up to 2000 m (contact MOXA for higher altitude requirements)
|
