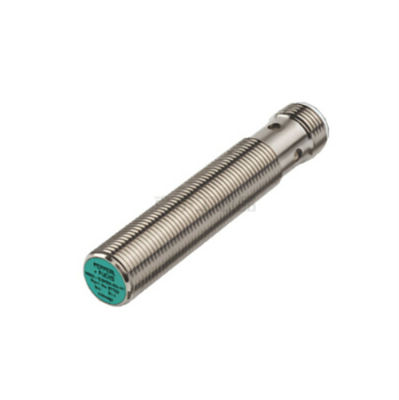

1. General specifications
Switching function: Normally open (NO)
Output type: PNP
Rated operating distance: 5 mm
Installation: flush
Output polarity: DC
Assured operating distance: 0 ... 4.05 mm
Actuating element: mild steel, e. g. 1.0037, SR235JR (formerly St37-2) 18 mm x 18 mm x 1 mm
Reduction factor rAl: 0.35
Reduction factor rCu: 0.29
Reduction factor r304 : 0.73
Reduction factor rBrass: 0.44
Output type: 3-wire
2. Nominal ratings
Operating voltage: 5 ... 36 V
Switching frequency: 0 ... 1950 Hz
Hysteresis: typ. 5 %
Reverse polarity protection: reverse polarity protected
Short-circuit protection: pulsing
Voltage drop: ≤ 1 V
Operating current: 0 ... 200 mA
Off-state current: max. 20 µA
No-load supply current: ≤ 10 mA
Time delay before availability: ≤ 10 ms
Switching state indicator: Multihole-LED, yellow
3. Functional safety related parameters
MTTFd: 1721 a
Mission Time (TM): 20 a
Diagnostic Coverage (DC): 0 %
4. Conformity
PWIS conformity: VDMA 24364-A1/B2/C1/T100°C-W
5. Compliance with standards and directives
Standard conformity
Standards: EN 60947-5-2:2007
EN 60947-5-2/A1:2012
IEC 60947-5-2:2007
IEC 60947-5-2 AMD 1:2012
6. Approvals and certificates
Protection class: II
Rated insulation voltage: 36 V
Rated impulse withstand voltage: 500 V
UL approval: cULus Listed, General Purpose, Class 2 Power Source
CCC approval: CCC approval / marking not required for products rated ≤36 V
7. Ambient conditions
Ambient temperature: -40 ... 85 °C (-40 ... 185 °F)
Storage temperature: -40 ... 85 °C (-40 ... 185 °F)

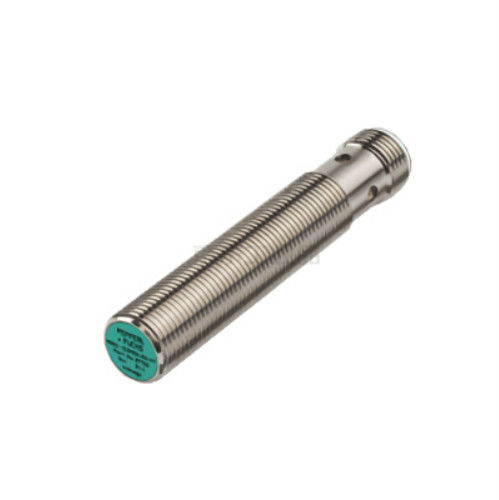

8. Mechanical specifications
Connection type: Connector plug
Housing material: brass , white bronze coated
Sensing face: PBT , green
Connector
Threading: M12 x 1
Number of pins: 3
Mass: 61 g
Dimensions
Length: 66 mm
Diameter: 18 mm
Mounting: with nuts, M18
Tightening torque: 0 ... 30 Nm
9. General information
Scope of delivery :2 self locking nuts in scope of delivery
