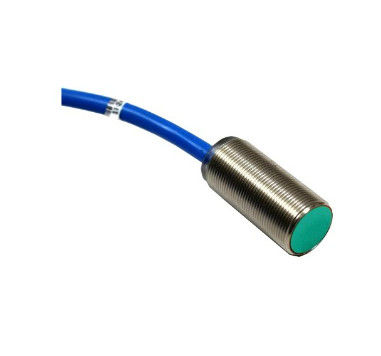

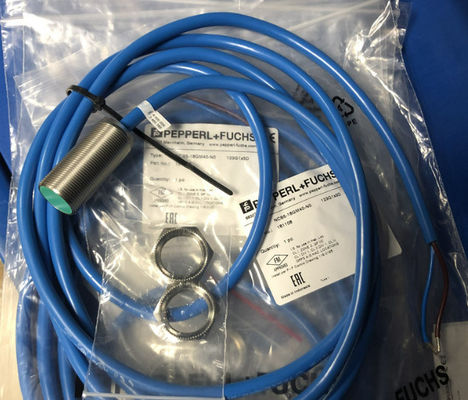

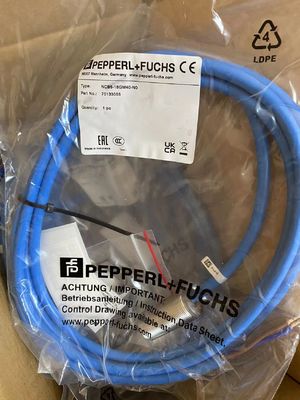

Product Details:
Manufacturer : Pepperl+Fuchs
Product No. : NCB5-18GM40-N0
Product Type : Inductive sensor
Features:
- 5 mm flush
- Usable up to SIL 2 acc. to IEC 61508
Technical data
1. General specifications
Switching function: Normally closed (NC)
Output type: NAMUR
Rated operating distance: 5 mm
Installation: flush
Assured operating distance: 0 ... 4.05 mm
Actual operating distance: 4.5 ... 5.5 mm typ. 5 mm
Reduction factor rAl: 0.35
Reduction factor rCu: 0.3
Reduction factor r304: 0.74
Output type: 2-wire
2. Nominal ratings
Nominal voltage: 8.2 V (Ri approx. 1 kΩ)
Switching frequency: 0 ... 400 Hz
Hysteresis: 1 ... 15 typ. 5 %
Reverse polarity protection: reverse polarity protected
Short-circuit protection: yes
Current consumption
Measuring plate not detected: min. 3 mA
Measuring plate detected: ≤ 1 mA
Switching state indicator: all direction LED, yellow
3. Functional safety related parameters
Safety Integrity Level (SIL): SIL 2
MTTFd: 2040 a
Mission Time (TM): 20 a
Diagnostic Coverage (DC): 0 %
4. Mechanical specifications
Connection type: cable
Housing material: Stainless steel 1.4305 / AISI 303
Sensing face: PBT
Cable
Cable diameter: 6 mm ± 0.2 mm
Bending radius: > 10 x cable diameter
Material: PVC
Core cross section: 0.75 mm2
Length: 2 m
Dimensions
Length: 40 mm
Diameter: 18 mm
5. General information
Use in the hazardous area: see instruction manuals
