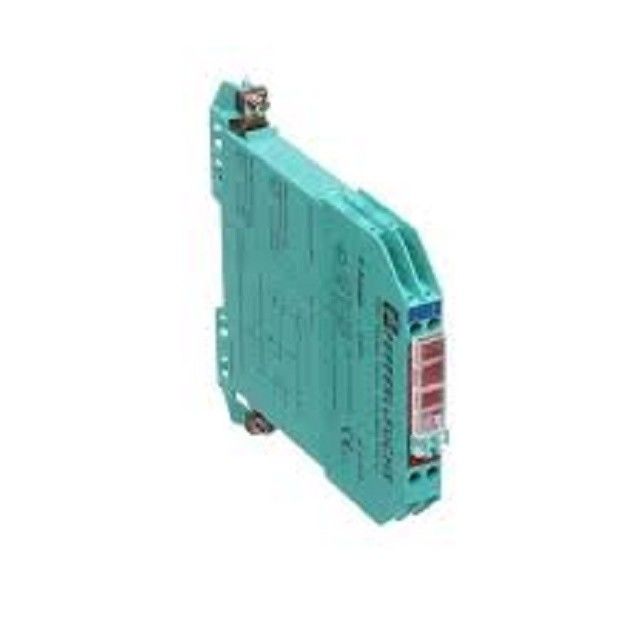

Pepperl+Fuchs Z787.H Zener Barrier 2 Channel High Power Version
Product Details:
Manufacturer : Pepperl+Fuchs
Product No. : Z787.H
Product Type : Zener Barrier
Features:
- 2-channel
- DC version, positive polarity
- Working voltage 26.5 V at 10 µA
- Series resistance max. 250 Ω
- Fuse rating 80 mA
- DIN rail mountable
- High power version
- With diode return
Function
The Zener Barrier prevents the transfer of unacceptably high energy from the safe area into the hazardous area.
The zener diodes in the Zener Barrier are connected in the reverse direction. The breakdown voltage of the diodes is not exceeded in normal operation. If this voltage is exceeded, due to a fault in the safe area, the diodes start to conduct, causing the fuse to blow. The Zener Barrier has a positive polarity, i. e. the anodes of the zener diodes are grounded.
This high power version has a smaller serial resistance and therefore provides higher voltage to the field device.
The Zener Barrier is for evaluation of signals from the hazardous area. The diodes of diode return prevent a current into the hazardous area, therefore the current assumption for intrinsic safety calculations is zero.
Depending on the application, increased or decreased intrinsic safety parameters apply for serial or parallel connection. For the detailed parameters refer to the Zener Barrier certificate. Application examples can be found in the system description of the Zener Barriers.
Technical data
1. General specifications
Type: DC version, positive polarity
2. Electrical specifications
Nominal resistance: 240 Ω
Series resistance: max. 250 Ω
Fuse rating: 80 mA
3. Hazardous area connection
Connection: terminals 1, 2; 3, 4
4. Safe area connection
Connection: terminals 5, 6; 7, 8
Working voltage
Supply loop: max. 27 V
Measurement loop: max. 26.5 V at 10 µA
5. Conformity
Degree of protection: IEC 60529
6. Ambient conditions
Ambient temperature: -20 ... 60 °C (-4 ... 140 °F)
Storage temperature: -25 ... 70 °C (-13 ... 158 °F)
Relative humidity: max. 75 % , without condensation
7. Mechanical specifications
Degree of protection: IP20
Connection: screw terminals
Core cross section: max. 2 x 2.5 ... mm2
Mass: approx. 150 g
Dimensions: 12.5 x 115 x 116 mm (0.5 x 4.5 x 4.6 inch) (W x H x D)
Height: 115 mm
Width: 12.5 mm
Depth: 116 mm
Construction type: modular terminal housing , see system description
Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001
