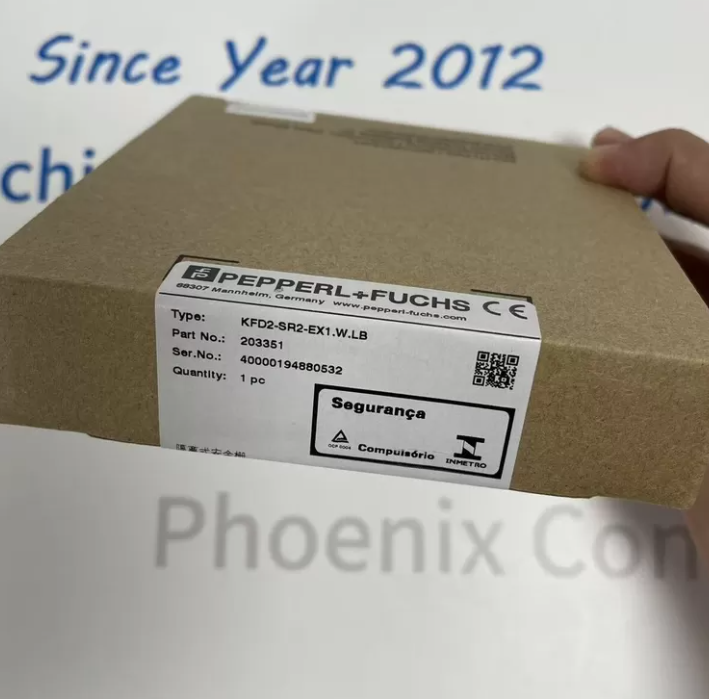

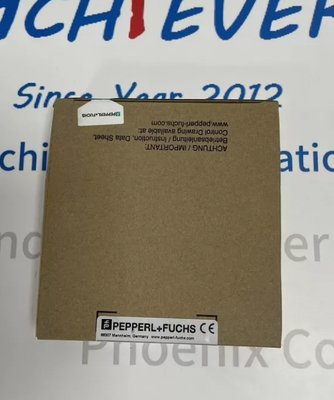

Pepperl+Fuchs kfd2 sr2 ex1 w lb Isolated NAMUR Switch Amplifier Safety Barrier
Product Details:
Manufacturer : Pepperl + Fuchs
Product No. : kfd2 sr2 ex1 w lb
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Pepperl+Fuchs KFD2-SR2-EX1.W.LB is an upgraded DIN rail mounted isolated switch amplifier built for intrinsic safety signal transmission between explosive hazardous areas and safe control cabinets, matching the search keyword set kfd2 sr2 ex1 w lbPepperl+Fuchs. The LB suffix stands for enhanced Line Breakage monitoring, delivering continuous full-loop open wire & short-circuit supervision with dedicated independent fault relay output, a key upgrade over standard KFD2-SR2-EX1.W variantsPepperl+Fuchs.
Detail:
| Parameter Group |
Specification Item |
Exact Datasheet Value |
| Power Supply |
Rated Operating Voltage |
19 V DC ~ 30 V DC (nominal 24 V DC) |
| Power Supply |
Max Input Ripple Tolerance |
≤ 10% |
| Power Supply |
Rated Operating Current |
≤ 45 mA |
| Power Supply |
Max Power Dissipation |
≤ 0.9 W |
| Power Supply |
Connection Interface |
DIN power rail / Terminals 14+, 15- |
| Hazardous Field Input |
Compliance Standard |
EN 60947-5-6 NAMUR |
| Hazardous Field Input |
Open Circuit Voltage |
Approx. 8 V DC |
| Hazardous Field Input |
Short-Circuit Loop Current |
Approx. 8 mA |
| Hazardous Field Input |
NAMUR Switching Current Range |
1.2 mA ~ 2.1 mA |
| Hazardous Field Input |
Switch Hysteresis |
Approx. 0.2 mA |
| LB Line Fault Threshold |
Wire Breakage Detection |
Loop current ≤ 0.1 mA |
| LB Line Fault Threshold |
Field Short-Circuit Trigger |
Loop current > 6 mA |
| Input Terminals (Ex Side) |
Wiring Label |
1+, 2+, 3- |
| Relay Output I (Signal) |
Contact Type |
Form C changeover relay |
| Relay Output II (LB Fault/Signal) |
Contact Type |
Form C changeover relay |
| Relay Contact AC Load Rating |
Max AC Switching Capacity |
250 V AC / 2 A (cosφ > 0.75) |
| Relay Contact DC Resistive Load |
Max DC Switching Capacity |
40 V DC / 2 A |
| Relay Minimum Switching Current |
Low-Load Operation Limit |
2 mA @ 24 V DC |
| Relay Response Delay |
Pull-in / Drop-out Time |
≤ 20 ms each channel |
| Galvanic Isolation Grade |
Insulation Standard |
Reinforced insulation IEC 61010-1 |
| Isolation Voltage (All Circuits) |
Dielectric Strength |
300 V eff reinforced isolation |
| Max Switching Frequency |
Digital Signal Speed |
≤ 10 Hz |
| Minimum Pulse/Pause Ratio |
Signal Stability Requirement |
≥ 20 ms / ≥ 20 ms |
| Classification Category |
Attribute Item |
Standardized Technical Parameter |
| Mechanical Dimensions |
Overall Housing Size (W × H × D) |
20 mm × 119 mm × 115 mm |
| Mounting Standard |
DIN Rail Compatibility |
35 mm standard DIN rail EN 60715 |
| Housing Protection Class |
Ingress Rating |
IP20 (indoor control cabinet only) |
| Net Unit Weight |
Mass of Single Barrier |
Approx. 150 g |
| Mechanical Configuration |
Adjustment Components |
3-position DIP switches S1, S2, S3 |
| Visual Status Feedback |
LED Indicator Set |
Green Power LED, Yellow Signal LED, Red LB Fault LED |
| Operating Ambient Temp |
Working Temperature Range |
-20 °C ~ +60 °C |
| Storage Temperature Range |
Offline Storage Limit |
-40 °C ~ +70 °C |
| EMC Electromagnetic Compliance |
Applied Standards |
EN 61326-3-1, EN IEC 61326-3-2, NE 21:2017 |
| Functional Safety SIL Rating |
Safety Integrity Level |
SIL 2 (IEC 61508 Low/High Demand) |
| Systematic Capability |
SC Grade |
SC 3 |
| Safety Failure Fraction |
SFF Value |
75% |
| Probability of Dangerous Failure |
PFH Rate |
3.77 × 10⁻⁸ 1/h |
| Explosion Hazard Certification |
ATEX Certificate Code |
PTB 00 ATEX 2080 |
| Hazardous Zone Marking |
Ex Classification |
II (1)G [Ex ia Ga] IIB |
| Global Approvals & Marks |
Official Certifications |
CE, IECEx, SIL2, ATEX |
| Relay Mechanical Lifespan |
Total Switch Cycles |
10⁷ operations |
