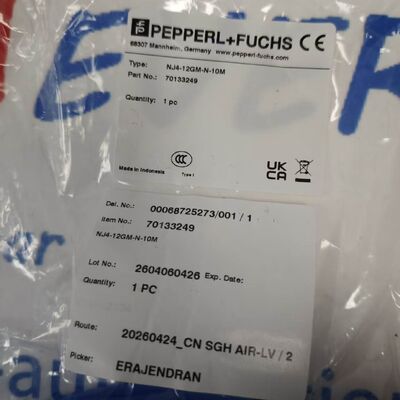

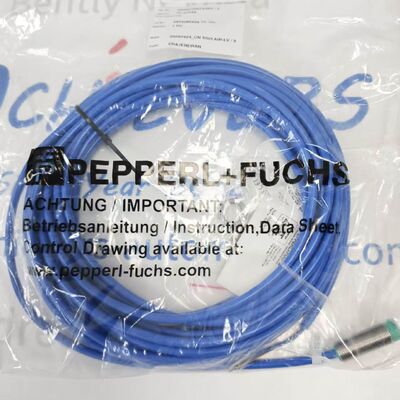

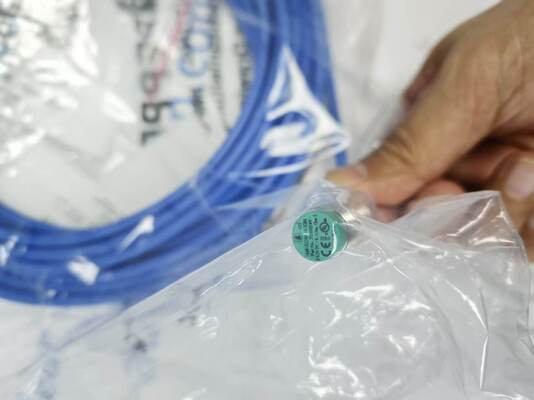

Pepperl+Fuchs NJ4-12GM-N-10M M12 Non-Flush NAMUR Inductive Proximity Sensor
Product Details:
Manufacturer : Pepperl + Fuchs
Product No. : NJ4-12GM-N-10M
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The P+F NJ4-12GM-N-10M is a high-reliability NAMUR-type inductive proximity sensor manufactured by Pepperl+Fuchs (P+F), designed for non-contact metal detection in general industrial and explosive hazardous area environments. Featuring a 12 mm cylindrical stainless steel housing, 4 mm non-flush sensing distance, and a 10-meter fixed PVC cable, this sensor delivers stable and repeatable switching performance for safety-related automation systems.
Detail:
|
Technical Item
|
Parameter Value
|
|
Product Model
|
NJ4-12GM-N-10M
|
|
Manufacturer
|
Pepperl+Fuchs (P+F)
|
|
Sensor Type
|
Non-flush Inductive Proximity Sensor
|
|
Output Standard
|
NAMUR 2-wire (EN 60947-5-6)
|
|
Switching Function
|
Normally Closed (NC)
|
|
Rated Operating Distance (Sn)
|
4 mm
|
|
Assured Operating Distance (Sa)
|
0 – 3.24 mm
|
|
Nominal Supply Voltage
|
8.2 V DC (Internal resistance approx. 1 kΩ)
|
|
Max Switching Frequency
|
1500 Hz
|
|
Switching Hysteresis
|
3% of rated distance
|
|
No-load Current (No Target)
|
Min. 3 mA
|
|
Load Current (Target Detected)
|
≤ 1 mA
|
|
Metal Reduction Factor (Steel 1.4301)
|
0.85
|
|
Metal Reduction Factor (Aluminum)
|
0.4
|
|
Metal Reduction Factor (Copper)
|
0.3
|
|
Functional Safety Level
|
SIL 2 (IEC 61508)
|
|
MTTFd
|
11774 Years
|
|
Mission Time (TM)
|
20 Years
|
|
Physical & Environmental Item
|
Parameter Value
|
|
Housing Dimension
|
M12 cylindrical, length 33 mm
|
|
Housing Material
|
Stainless steel 1.4305 (AISI 303)
|
|
Sensing Face Material
|
PBT engineering plastic
|
|
Connection Type
|
10 m fixed PVC cable
|
|
Cable Diameter
|
4.8 mm ± 0.2 mm
|
|
Cable Core Cross Section
|
0.34 mm²
|
|
Min. Bending Radius
|
> 10 × cable diameter
|
|
Ingress Protection Rating
|
IP67
|
|
Operating Temperature Range
|
-25 °C to +100 °C
|
|
Storage Temperature Range
|
-30 °C to +105 °C
|
|
Installation Method
|
Non-flush mounting
|
|
Global Certifications
|
ATEX, IECEx, cULus, DNVGL Marine, CCC, ANZEx, KCC
|
|
Explosion-Proof Grade
|
Ga/Gb/Da/Db hazardous area approval
|
|
Standard Accessories
|
2 pieces stainless steel self-locking nuts
|
