GF 159 001 696 (3-9900-1) SmartPro Multi-Parameter Field Mount Transmitter
Product Details:
Manufacturer : GF
Product No. :159 001 696
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The GF 159 001 696, factory model 3-9900-1, belongs to the GF Signet SmartPro 9900 instrument series manufactured by Georg Fischer (+GF+). This single-channel field-mounted transmitter serves as a universal signal processing unit for a wide range of liquid measurement sensors.
It accepts S³L digital signals, frequency pulse signals and external 4–20 mA analog input from GF sensors, covering measurement parameters including flow rate, pH/ORP, conductivity/resistivity, salinity, pressure, temperature, liquid level and dissolved oxygen.

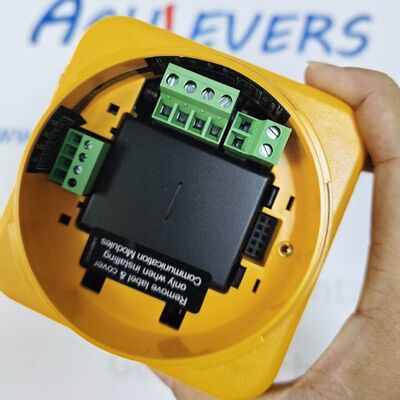

A large auto-backlit LCD screen features digital bar graph visualization for intuitive local reading. Modular plug-in expansion slots support optional relay modules, Modbus communication modules and batch control modules to extend control functions. The robust outdoor enclosure supports wall, pipe and direct field installation. Screw terminal wiring and built-in circuit protection ensure stable operation in industrial water treatment and chemical fluid processes.
Detail:
| Parameter |
Specification |
| Model Number |
159 001 696 (3-9900-1) |
| Brand |
GF Piping Systems (Georg Fischer / GF Signet) |
| Series |
SmartPro 9900 Transmitter |
| Channel Configuration |
Single channel |
| Supply Voltage |
10.8 VDC ~ 35.2 VDC (24 VDC nominal) |
| Supported Input Types |
S³L serial digital signal; Frequency 0.5 ~ 1500 Hz; External 4–20 mA |
| Basic Output Signal |
1 x scalable 4–20 mA analog output |
| 4–20mA Output Load Resistance |
Max 600 Ω |
| Measurement Accuracy (Frequency Input) |
±0.5 % of reading |
| Update Rate |
1 second |
| Connection Terminal |
Screw clamp terminals |
| Built-in Protection |
Reverse polarity, short-circuit protection |
| Optional Expansion Modules |
Relay, Modbus RS485, Batch control, extra 4–20mA output |
| Parameter |
Specification |
| Housing Material |
Reinforced PBT plastic |
| Window Material |
Shatter-resistant transparent glass |
| Protection Rating |
IP65, NEMA 4X |
| Operating Ambient Temperature |
-15 °C ~ +70 °C |
| Storage Temperature |
-20 °C ~ +70 °C |
| Display Type |
Auto-sensing backlit LCD, main + secondary value display |
| Mounting Methods |
Wall mounting, pipe mounting (accessory required) |
| Enclosure Structure |
Outdoor field mount housing |
| Net Weight |
Approx. 500 g |
| Relative Humidity |
5% ~ 95 %, non-condensing |
| Certifications |
CE, FCC, RoHS |
| Installation Orientation |
Unlimited |
Brand:
GF Piping Systems is the world's leading manufacturer of high-quality plastic piping systems. Its products cover pipes, pipe fittings, valves and measuring instruments, etc., and provides one-stop purchasing services. Its products are widely used in buildings, industry and municipal areas to ensure the safe and sustainable transportation of water and other fluids
