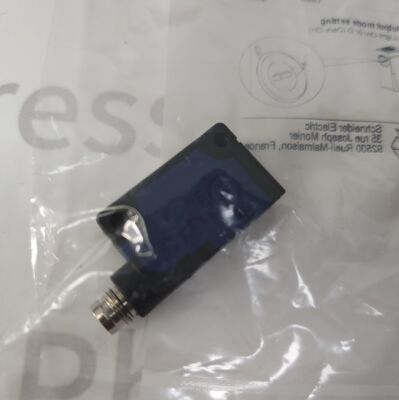

Telemecanique XUM5APXBM8 Miniature Diffuse Photoelectric Sensor
Product Details:
Manufacturer : Telemecanique
Product No. : XUM5APXBM8
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The XUM5APXBM8 is a compact miniature diffuse photoelectric sensor from Telemecanique XUM sensor family. Adopting infrared diffuse reflection optical principle, this sensor supports a maximum sensing distance of 1.9 m.
Equipped with adjustable sensitivity potentiometer and programmable output function, users can switch between Normally Open (NO) and Normally Closed (NC) without hardware modification. Dual LED indicators display real-time output status and signal stability for convenient on-site debugging.
The rugged PBT plastic miniature housing is designed for installation in narrow machine spaces. It uses an M8 4-pin male plug connection and integrates multi-layer protection circuits including reverse polarity, overload and short-circuit protection, suitable for continuous operation in general industrial environments.
Detail:
| Parameter |
Specification |
| Model Number |
XUM5APXBM8 |
| Brand |
Telemecanique Sensors |
| Series |
XUM Miniature Photoelectric Sensor |
| Detection Type |
Diffuse Reflection |
| Light Source |
Infrared LED |
| Maximum Sensing Range |
0 … 1.9 m |
| Supply Voltage |
10 VDC – 30 VDC (Rated 12–24 VDC) |
| Output Configuration |
PNP, Programmable NO / NC |
| Max Switching Current |
≤ 100 mA |
| No-load Current Consumption |
≤ 20 mA |
| Voltage Drop (ON state) |
< 2 V |
| Max Switching Frequency |
1000 Hz |
| Response / Recovery Time |
≤ 0.5 ms |
| Adjustment Method |
Sensitivity potentiometer |
| Connection Interface |
M8 4-pin male connector |
| Protection Circuits |
Reverse polarity, overload, short-circuit |
| Parameter |
Specification |
| Housing Dimension (W × H × D) |
10 mm × 44 mm × 20 mm |
| Housing Material |
PBT Engineering Plastic |
| Lens Material |
PMMA |
| Protection Class |
IP67 (IEC 60529) |
| Operating Ambient Temperature |
-30 °C ~ +55 °C |
| Storage Temperature |
-40 °C ~ +70 °C |
| Ambient Light Immunity |
40,000 lux sunlight, 10,000 lux incandescent light |
| Vibration Resistance |
9 gn, ±1.5 mm, 10–500 Hz (IEC 60068-2-6) |
| Shock Resistance |
100 gn, 11 ms duration (IEC 60068-2-27) |
| Net Weight |
Approx. 10 g |
| Mounting Holes |
Standard mounting holes for metal brackets |
| Certifications |
CE, cULus, UKCA |
| Compliance |
RoHS |
