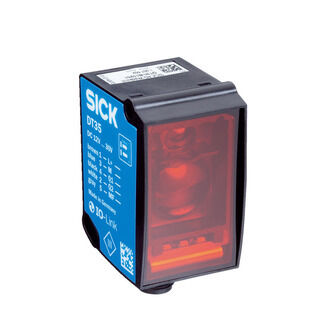

SICK dt35 b15251 datasheet Time-of-Flight Laser Distance Sensor
Product Details:
Manufacturer : Sick
Product No. : dt35 b15251
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The

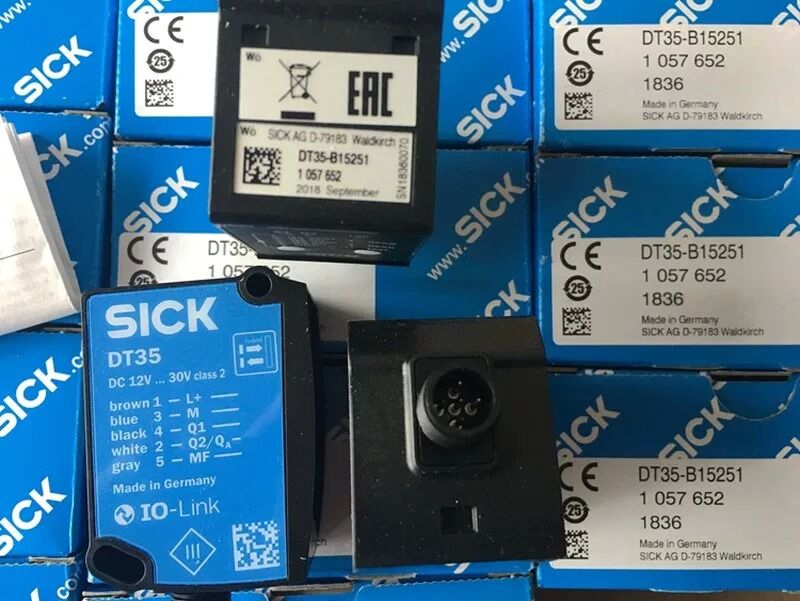

SICK DT35-B15251 is a compact mid-range Time-of-Flight laser distance sensor belonging to the SICK Dx35 product line, designed for non-contact distance measurement, workpiece positioning, material level detection and object presence control in industrial automation environments
SICK.
Equipped with Class 2 visible red laser and multi-speed adjustable response modes, this sensor delivers stable readings even on low-reflectivity targets (6% remission). It integrates dual push-pull digital switch outputs plus switchable analog 4–20 mA / 0–10 V signals, together with IO-Link V1.1 intelligent communication for remote parameterization and real-time diagnostic data retrieval. The rugged ABS/PC plastic housing features IP65/IP67 ingress protection, supporting wide operating temperature ranges and resistance to industrial vibration, coolant splashes and dust accumulation. Widely applied in logistics conveying, packaging machinery, automotive assembly and warehouse material monitoring systems.
Description:
| Parameter Item |
SICK DT35-B15251 Official Technical Value |
| Full Model Code |
DT35-B15251 |
| SICK Order Part Number |
1057652 |
| Measuring Principle |
Time-of-Flight (ToF) laser ranging |
| Laser Source |
Visible red laser, 658 nm wavelength, Laser Class 2 (IEC 60825-1:2014) |
| Max Laser Output |
250 mW, pulse duration 4 ns, duty cycle 1/250 |
| Measuring Range (90% remission) |
50 mm ~ 12,000 mm |
| Measuring Range (18% remission) |
50 mm ~ 5,300 mm |
| Measuring Range (6% remission) |
50 mm ~ 3,100 mm |
| Measurement Resolution |
0.1 mm |
| Typical Accuracy (+20 °C) |
±10 mm |
| Repeatability |
≤0.5 mm |
| Adjustable Response Speeds |
2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms |
| Corresponding Max Switching Frequency |
333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz |
| Max Ambient Light Immunity |
40,000 lx sunlight resistance |
| Laser Spot Size (2 m distance) |
15 mm × 15 mm |
| Configurable Hysteresis Range |
0 mm ~ 11,950 mm (IO-Link adjustable) |
| Specification Category |
Detailed Official Datasheet Data |
| Supply Voltage |
DC 12 V ~ 30 V; IO-Link requires ≥18 V DC; analog voltage output ≥13 V DC |
| Max Power Consumption |
≤1.7 W (no load, +20 °C) |
| Signal Outputs |
2 × push-pull digital (PNP/NPN invertible, short-circuit protected)
1 × analog output: switchable 4–20 mA / 0–10 V (12-bit resolution) |
| Digital Communication |
IO-Link V1.1, data rate 38.4 kbit/s, supports parameterization & diagnosis |
| Multifunctional Input (MF) |
Laser off, external teach, factory reset; response time ≤60 ms |
| Connector Type |
M12 5-pin male plug |
| Housing Material |
Reinforced ABS + PC plastic |
| Optical Window Material |
Anti-scratch PMMA |
| Overall Dimensions (W × H × D) |
32 mm × 58.67 mm × 42.7 mm |
| Net Weight |
65 g |
| Ingress Protection |
IP65, IP67 |
| Operating Ambient Temperature |
-30 °C ~ +55 °C |
| Storage Temperature Range |
-40 °C ~ +75 °C |
| Shock & Vibration Compliance |
EN 60068-2-6, EN 60068-2-27 industrial standards |
| EMC Standard |
EN 61326-1 industrial electromagnetic compatibility |
| Protection Class |
Class III |
