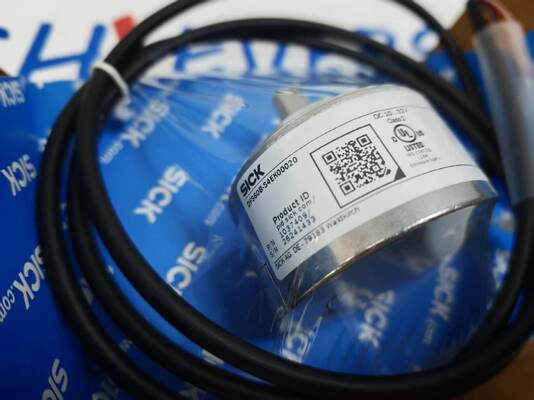

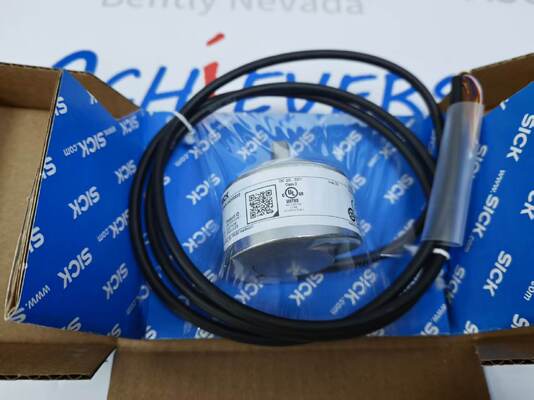

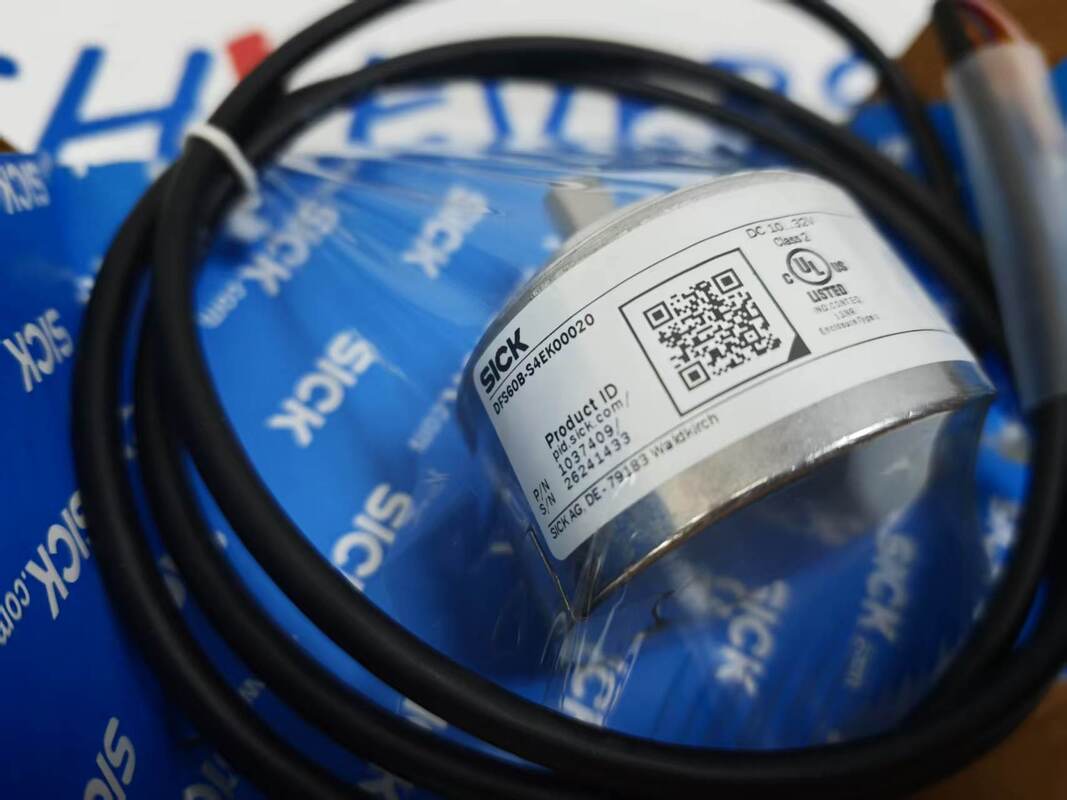

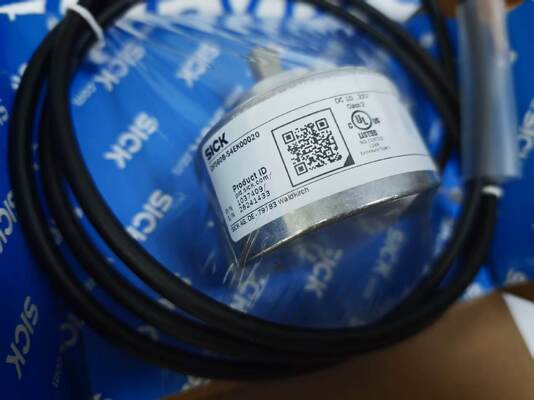

SICK DFS60B-S4EK00020 Incremental Rotary Encoder
Product Details:
Manufacturer : Sick
Product No. : DFS60B-S4EK00020
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The SICK DFS60B-S4EK00020 belongs to SICK’s DFS60B industrial incremental rotary encoder family, designed for precise rotational speed and position feedback in general automation machinery.
This specific variant features a solid 10 mm shaft with face mount flange, 20 pulses per revolution (PPR) resolution, HTL push-pull electrical interface, and an integrated 1.5 m 8-wire universal cable connection. Operating on 10–32 V wide-range DC power, it delivers 6-channel A/B/Z incremental signals with built-in reverse polarity and short-circuit protection.
With a compact 60 mm aluminum die-cast housing, IP65 shaft-side and IP67 housing-side ingress protection, the DFS60B-S4EK00020 offers long bearing service life and robust resistance to shock, vibration and fluctuating ambient temperatures for continuous motion monitoring tasks.
Description:
| Parameter Category |
DFS60B-S4EK00020 Standard Specs |
| Manufacturer |
SICK AG |
| Full Model Code |
DFS60B-S4EK00020 |
| Internal Article No. |
1037409 |
| Product Series |
DFS60B Incremental Rotary Encoder |
| Encoder Type |
Incremental, optical scanning |
| Pulses Per Revolution (PPR) |
20 |
| Mechanical Interface |
Solid shaft, face mount flange |
| Shaft Diameter |
10 mm stainless steel shaft |
| Housing Outer Diameter |
60 mm aluminum die-cast |
| Connection Type |
8-wire universal cable, 1.5 m length |
| Total Net Weight |
0.3 kg |
| Start-up Torque (+20°C) |
0.5 Ncm |
| Operating Torque (+20°C) |
0.3 Ncm |
| Max Permissible Rotational Speed |
9,000 rpm |
| Rotor Moment of Inertia |
6.2 gcm² |
| Bearing Lifetime |
3.6 × 10¹⁰ revolutions |
| Max Angular Acceleration |
500,000 rad/s² |
| Performance Item |
Rated Technical Data |
| Electrical Interface |
HTL Push-Pull, 6 channels (A, /A, B, /B, Z, /Z) |
| Reference Signal (Z pulse) |
1 channel, 90° electrical gated with A/B |
| Supply Voltage Range |
10 V DC ~ 32 V DC |
| Max Output Frequency |
≤ 600 kHz |
| Max Load Current per Channel |
≤ 30 mA |
| Power Consumption (No Load) |
≤ 0.5 W |
| Initialization Time |
40 ms after power-on |
| Measuring Step Deviation |
± 0.08° |
| Overall Angular Error Limit |
± 0.05° |
| Protection Functions |
Reverse polarity protection, output short-circuit protection (max 30 s) |
| Ingress Protection |
IP67 housing side; IP65 shaft side |
| Operating Ambient Temperature |
-40 °C ~ +85 °C |
| Permissible Relative Humidity |
Up to 90 %, non-condensing |
| Shock Resistance |
70 g per EN 60068-2-27 |
| EMC Compliance |
EN 61000-6-2, EN 61000-6-3 |
| MTTFd (EN ISO 13849-1) |
300 years (40°C average ambient temp) |
| Certifications |
CE, cULus, RoHS compliant |
