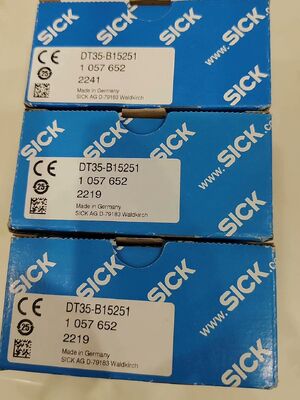

1057652 sick Dx35 Laser Distance Sensor
Product Details:
Manufacturer : Sick
Product No. : 1057652
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The

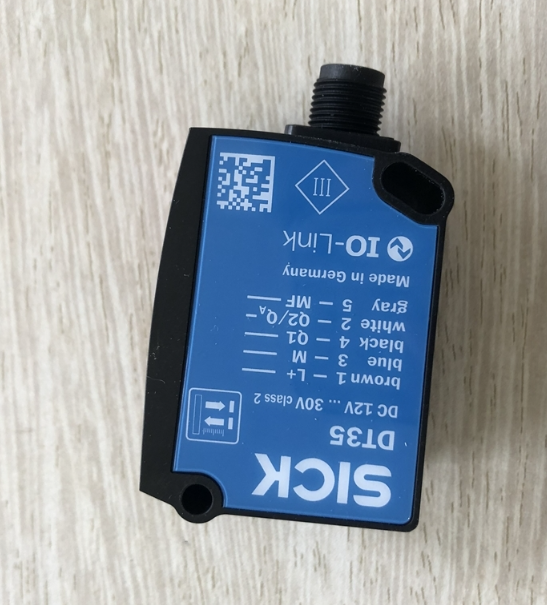

SICK 1057652 (DT35-B15251) is a compact mid-range Time-of-Flight (ToF) laser distance sensor from the SICK Dx35 series, engineered for non-contact distance measurement, object positioning and filling level monitoring in harsh industrial automation environments.
This sensor adopts Class 2 visible red laser technology with adjustable response speed and multi-mode output configuration, supporting simultaneous analog value transmission and digital switching signals. Built-in IO-Link communication enables full parameterization, diagnostic data reading and predictive maintenance tracking without physical sensor disassembly. The rugged ABS/PC block housing delivers IP65/IP67 ingress protection, stable operation across wide temperature bands, and reliable detection on targets with low reflectivity (6% remission). Multiple adjustable response time gears suit high-speed conveyor counting and slow static level measurement scenarios, widely integrated into logistics, packaging, automotive machinery and material handling systems.
Description:
| Parameter Item |
SICK 1057652 DT35-B15251 Standard Value |
| Full Order Part Number |
1057652 |
| Official Model Name |
DT35-B15251 (Dx35 Series) |
| Measuring Principle |
Time-of-Flight (ToF) laser ranging |
| Light Source |
Visible red laser, Laser Class 2 (IEC 60825-1:2014) |
| Full Measuring Range |
50 mm ~ 12,000 mm (90% remission)
50 mm ~ 5,300 mm (18% remission)
50 mm ~ 3,100 mm (6% remission) |
| Measurement Resolution |
0.1 mm |
| Typical Accuracy (20 °C) |
±10 mm |
| Repeatability |
≤0.5 mm |
| Adjustable Response Time Gears |
2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms |
| Corresponding Switching Frequency |
333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz |
| Max Ambient Light Immunity |
40,000 lx sunlight resistance |
| Laser Service Life (25 °C) |
100,000 hours |
| Spot Size (2 m distance) |
15 mm × 15 mm |
| Specification Category |
Detailed Technical Data |
| Supply Voltage |
DC 12 V ~ 30 V, ripple ≤ 5 Vpp |
| Max Power Consumption |
≤1.7 W |
| Output Configuration |
2 × push-pull digital (PNP/NPN invertible)
Analog output: 4–20 mA / 0–10 V switchable |
| Digital Communication |
IO-Link interface for parameterization & diagnostics |
| Multifunctional Input (MF) |
Laser off, external teach, factory reset |
| Connection Interface |
M12 5-pin male connector |
| Housing Material |
ABS + PC reinforced plastic |
| Optical Window Material |
Anti-scratch PMMA |
| Overall Dimensions (W × H × D) |
32 mm × 58.67 mm × 42.7 mm |
| Net Weight |
65 g |
| Ingress Protection Grade |
IP65, IP67 |
| Operating Ambient Temperature |
-30 °C ~ +55 °C |
| Storage Temperature Range |
-40 °C ~ +70 °C |
| Compliance Standards |
RoHS 3, EN 61326-1 EMC industrial standard |
| Protection Class |
Class III |
BRAND
SICK is a German brand founded in 1946, named after its founder, Dr. Erwin Sick. The company's headquarters is located in Waldkirch, a city in southwestern Germany. SICK is one of the international leading manufacturers in sensor technology and analytical instrumentation systems and holds a significant position in the field of industrial automation.
SICK's product range includes various types of sensors, encoders, switches, connectors, cables, photoelectric sensors, servo encoders, fiber optic sensors, laser scanners, safety switches, proximity sensors, and more. Additionally, it produces gas analyzers, flow sensors, and inclination sensors. These devices are widely used across various industries, such as packaging, food and beverage, machine tools, automotive manufacturing, logistics, airport facilities, electronics, and textiles.
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 12 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
