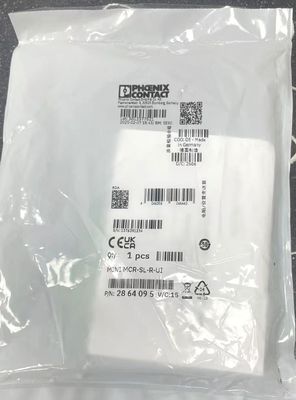

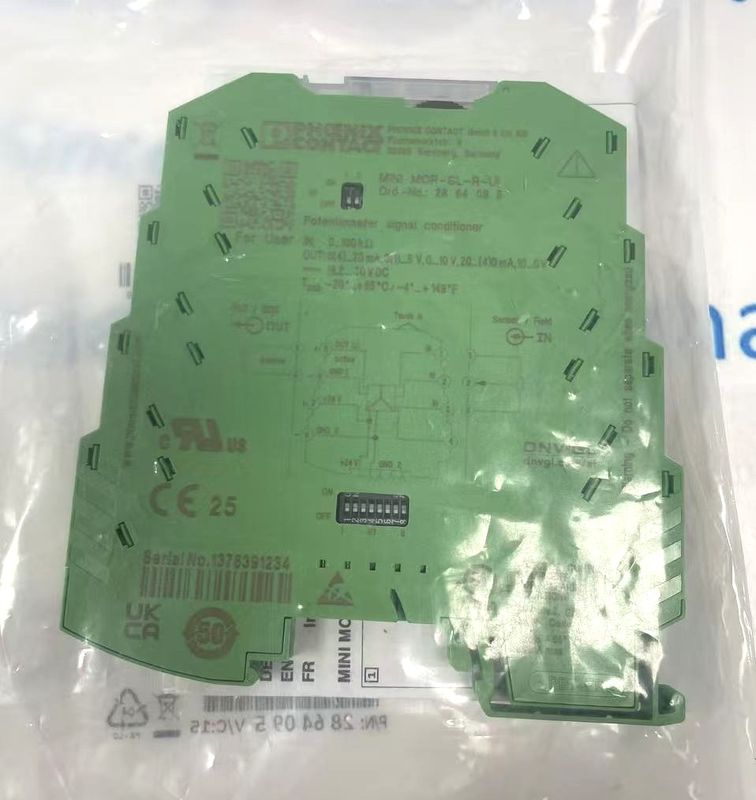

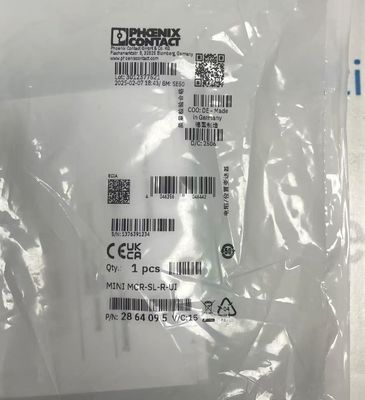

Phoenix Contact MINI MCR-SL-R-UI Potentiometer Position Transducer
Description:
Description: Phoenix
Product No. :MINI MCR-SL-R-UI
https://www.achievers-automation.com More Products
The Phoenix Contact MCR - SL - R - UI is a high - performance potentiometer position transducer belonging to the MINI MCR product series. With an ultra - slim 6.2mm width, it is specialized in converting potentiometer position signals into standardized analog signals. It is applicable to potentiometers with a resistance range of 100Ω - 100kΩ and supports flexible configuration of output signals via DIP switches. Equipped with 3 - way isolation and automatic potentiometer detection functions, this module is widely used in industrial automation, process control, and machinery monitoring systems. It ensures accurate and stable signal transmission while simplifying debugging and installation processes, which is essential for improving the reliability of industrial control systems.
Detail:
| Basic Identification |
Product Model |
MCR - SL - R - UI |
MINI MCR series potentiometer position transducer |
|
Manufacturer Part Number |
2864095 |
Standard part number for product identification |
|
Product Type |
Potentiometer Position Transducer |
Converts potentiometer signals to standard analog signals |
| Power Supply |
Nominal Supply Voltage |
24 V DC |
Typical working voltage for industrial control modules |
|
Supply Voltage Range |
19.2 V DC - 30 V DC |
Power can be supplied via module terminals or DIN rail connector |
|
Typical Current Consumption |
< 25 mA (at 24 V DC) |
Low power consumption for energy - saving operation |
|
Maximum Power Dissipation |
235.5 mW (nominal condition) |
Ensures stable operation without overheating |
| Input Performance |
Number of Input Channels |
1 |
Single - channel input design for potentiometer signals |
|
Input Resistance Range |
100 Ω - 100 kΩ |
Compatible with most common industrial potentiometers |
|
Reference Voltage Source |
< 3.6 V |
Provides stable voltage for potentiometer detection |
| Output Performance |
Number of Output Channels |
1 |
Single - channel output for standardized analog signals |
|
Voltage Output Ranges |
0 V - 5 V, 1 V - 5 V, 0 V - 10 V, 10 V - 0 V |
Multiple configurable voltage output options |
|
Current Output Ranges |
0 mA - 20 mA, 4 mA - 20 mA, 20 mA - 0 mA, 20 mA - 4 mA |
Adapts to different industrial control signal requirements |
|
Maximum Voltage Output |
12.5 V |
Ensures signal integrity under open - circuit conditions |
|
Maximum Current Output |
23 mA |
Prevents overload of downstream components |
| Precision & Response |
Maximum Transmission Error |
< 0.2 % |
High conversion accuracy for reliable data collection |
|
Step Response (0 - 99 %) |
< 30 ms |
Rapid signal response for real - time control |
|
Maximum Temperature Coefficient |
< 0.02 % / K |
Minimizes accuracy loss caused by temperature changes |
