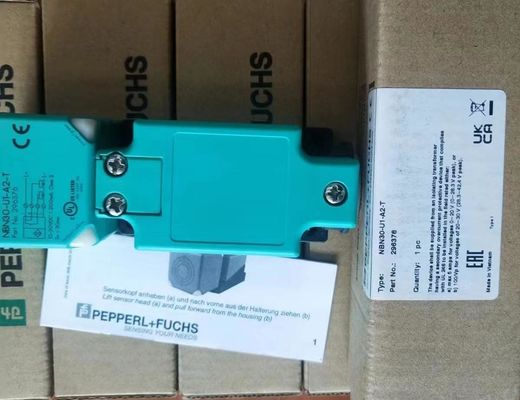

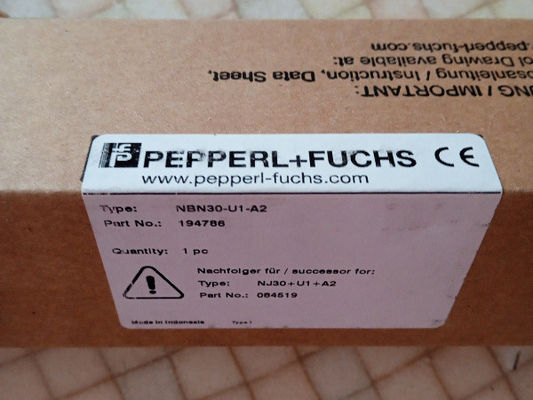

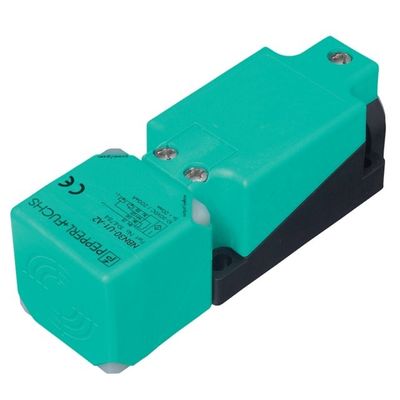

Pepperl Fuchs Inductive sensor NBN30-U4-A2
| General specifications |
|---|
| Switching function | complementary |
| Output type | PNP |
| Rated operating distance | 30 mm |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 24.3 mm |
| Reduction factor rAl | 0.33 |
| Reduction factor rCu | 0.31 |
| Reduction factor r304 | 0.74 |
| Reduction factor rBrass | 0.38 |
| Output type | 4-wire |
| Nominal ratings |
|---|
| Operating voltage | 10 ... 30 V |
| Switching frequency | 0 ... 230 Hz |
| Hysteresis | typ. 5 % |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 2 V |
| Operating current | 0 ... 200 mA |
| Off-state current | 0 ... 0.5 mA |
| No-load supply current | ≤ 20 mA |
| Time delay before availability | 80 ms |
| Operating voltage indicator | LED, green |
| Switching state indicator | LED, yellow |
| Functional safety related parameters |
|---|
| MTTFd | 1230 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
| Compliance with standards and directives |
|---|
| Standard conformity |
|
| Standards | EN IEC 60947-5-2 |
| Approvals and certificates |
|---|
| UL approval | cULus Listed, General Purpose |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient conditions |
|---|
| Ambient temperature | -25 ... 85 °C (-13 ... 185 °F) |
| Mechanical specifications |
|---|
| Connection type | screw terminals |
| Core cross section | max. 2.5 mm2 |
| Housing material | PA/metal with epoxy powder coating |
| Sensing face | PA |
| Housing base | metal |
| Degree of protection | IP68 / IP69K |
| Mass | 225 g |
| Dimensions |
|
| Height | 40 mm |
| Width | 40 mm |
| Length | 118 mm |
| Note | Tightening torque: 1.8 Nm (housing) |
Company Introduction:
Achievers Automtation Limited deals with a complete range of industrial automation components and instruments with more than 12 years’ experience, and always try best to provide quality goods and timely services to our valued customers from over 45 countries worldwide.
Achievers serves the Oil & Gas industries, EPC contractors, System Integrators and other industrial automation and process control companies worldwide. The industries we serve include Oil & Gas, Chemical, Petrochemical, Mining, Energy & Utilities, Pharmaceuticals, Electronics, Food and etc.
The company provides a diversified range of products to meet any process control and automation challenges in the industry. We stock and distribute pressure & temperature transmitters, level controller & transmitters, temperature probes, flowmeter, vibration monitoring devices, chart recorders, sensors, PLC, DCS, HMI, measuring instruments and other field instruments.
Below are the TOP BRANDS we handle in the past 12 years:
Bently Nevada 3500 Vibration Monitoring System&3300 Proximity Probes, Sensors & Transducer Systems
ALLEN BRADLEY Industrial Control Products
Pepperl-Fuchs Industrial Sensors & Isolated Barrier
MTL Instruments Isolated Barrier
Endress+Hauser Flow, Level, Liquid Analysis Instrument
YOKOGAWA DCS & Field Instruments & Process Analyzers
Rosemount Analytical Products
ASCO Solenoid Valves
FISHER Valve&Positioner
IFM Sensors & Controllers
ABB V18345 Valve Positioner
ABB Bailey Infi 90 and Net 90 Modules
FISHER DLC3100 Digital Level Controller
TELEDYNE Oxygen Sensor & Fuel Cell
HONEYWELL Switches & Transmitter
VEGA Level Measurement Products
AUMA Electric Actuators and Gearboxes
SMC Controls, process, and Industrial products
SICK Industrial Sensors
FESTO Pneumatic & Electric Automation Products
YASKAWA Industrial Ac Drives
BECKOFF Controllers & I/O Modules
BALLUFF Linear Position Sensors
SCHMERSAL Safety switches & Safety Systems
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
