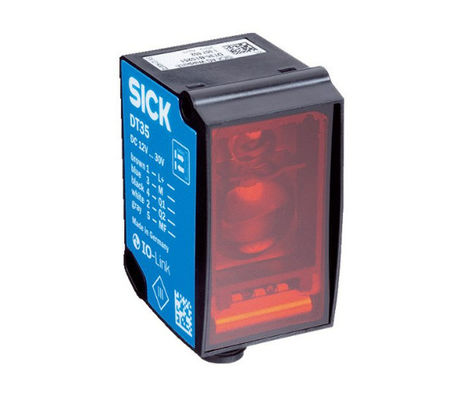

SICK DL35-B15552 Laser Distance Sensors: Dx35
Mechanics/electronics
| Supply voltage Vs | DC 12 V ... 30 V 1) 2) |
| Ripple | ≤ 5 Vpp 3) |
| Power consumption | ≤ 1.7 W 4) |
| Initialization time | ≤ 500 ms |
| Warm-up time | ≤ 20 min |
| Housing material | Plastic (ABS/PC) |
| Window material | Plastic (PMMA) |
| Connection type | Male connector, M12, 5-pin |
| Indication | LEDs |
| Weight | 65 g |
| Dimensions (W x H x D) | 32 mm x 58.67 mm x 42.7 mm |
| Enclosure rating | IP65 |
| IP67 |
| Protection class | III |
Performance
| Measurement range min ... max: | 200 mm ... 35,000 mm, on “diamond grade” reflective tape 1) |
| Target | Reflector |
| Resolution | 0.1 mm |
| Repeatability | ≥ 0.5 mm 1) 2) |
| Accuracy | Typ. ± 15 mm 3) |
| Response time | 2.5 ms ... 96.5 ms, 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms 4) 5) |
| Switching frequency | 333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz 4) 5) |
| Output time | 1 ms ... 32 ms, 1 ms/2 ms/4 ms/8 ms/32 ms 4) 6) |
| Light source | Laser, red 7) |
| visible red light |
| Laser class | 1 (IEC 60825-1:2014, EN 60825-1:2014) |
| Typ. light spot size (distance) | 15 mm x 15 mm (at 2 m) |
| Additional function | Set speed: Super Fast ... Super Slow, teach-in of analog output and invertible analog output, Output Q2 adaptable: Current output / Voltage output / Digital output, Switching mode: Distance to reflective tape (DtR) / switching window (Wnd) / object between sensor and background (ObSB), teach-in of digital output and digital output invertible, Multifunctional input: laser off / external teach / deactivated, reset to factory default |
| Average laser service life (at 25 °C) | 100,000 h |
