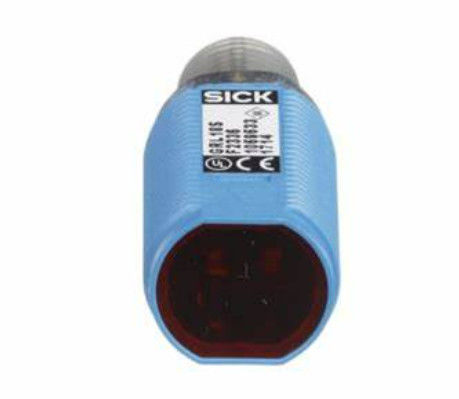

SICK GRL18S-F2336 Photoelectric sensors: GR18
Features
| Functional principle |
Photoelectric retro-reflective sensor |
| Functional principle detail |
Dual lens |
| Dimensions (W x H x D) |
18 mm x 18 mm x 38.1 mm |
| Housing design (light emission) |
Cylindrical |
| Thread diameter (housing) |
M18 x 1 |
| Optical axis |
Axial |
| Sensing range max. |
0.03 m ... 7.2 m 1) |
| Sensing range |
0.06 m ... 6 m 1) |
| Type of light |
Visible red light |
| Light source |
PinPoint LED 2) |
| Light spot size (distance) |
Ø 175 mm (7 m) |
| Wave length |
650 nm |
| Adjustment |
None |
| Indication |
|
| LED green |
Operating indicator |
| Static on: power on |
| LED yellow |
Status of received light beam |
| Static on: object not present |
| Static off: object present |
Mechanics/electronics
| Supply voltage |
10 V DC ... 30 V DC 1) |
| Ripple |
< 5 Vpp 2) |
| Current consumption |
30 mA |
| Switching output |
PNP |
| Switching mode |
Dark switching |
| Signal voltage PNP HIGH/LOW |
VS - (≤ 3 V) / approx. 0 V |
| Output current Imax. |
≤ 100 mA 3) |
| Response time |
< 500 µs 4) |
| Switching frequency |
1,000 Hz 5) |
| Connection type |
Connector M12, 3-pin |
| Circuit protection |
A 6) |
| B 7) |
| D 8) |
| Protection class |
III |
| Housing material |
Plastic, ABS |
| Optics material |
Plastic, PMMA |
| Enclosure rating |
IP67 |
| Items supplied |
Fastening nuts (2 x) |
| Electromagnetic compatibility (EMC) |
EN 60947-5-2 |
| Ambient operating temperature |
–25 °C ... +55 °C 9) |
| Ambient temperature, storage |
–40 °C ... +70 °C |
| UL File No. |
NRKH.E348498 & NRKH7.E348498 |
