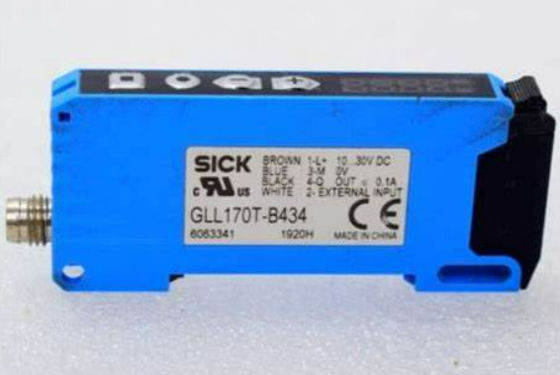

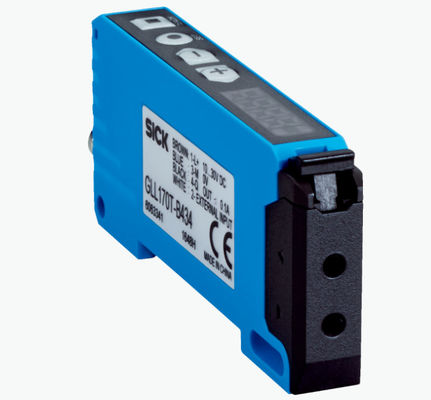

SICK GLL170T-B434 Fiber-Optic Sensors And Fibers: GLL170
Features
| Device type |
Fiber-optic sensors |
| Device type detail |
Stand-alone |
| Dimensions (W x H x D) |
10 mm x 31.7 mm x 72.5 mm |
| Housing design (light emission) |
Rectangular |
| Sensing range max. |
0 mm ... 400 mm, Proximity system 1) 2) |
| 0 mm ... 1,320 mm, Through-beam system 3) |
| Sensing range |
0 mm ... 350 mm, Proximity system 1) 2) |
| 0 mm ... 1,100 mm, Through-beam system 3) |
| Type of light |
Visible red light |
| Light source |
LED 4) |
| Wave length |
632 nm |
| Adjustment |
Teach-in button |
| Cable |
| Plus/minus button |
| Indication |
Display |
| Display |
Status LEDs, 4-digit digital display, display selectable between percentage value, absolute digit value and bar display / display of parameters |
Mechanics/electronics
| Supply voltage |
10 V DC ... 30 V DC 1) |
| Ripple |
≤ 10 % 2) |
| Current consumption |
40 mA 3) |
| Switching output |
PNP |
| NPN |
| Selectable via menu |
| Number of switching outputs |
1 |
| Switching mode |
Light/dark switching |
| Switching mode selector |
Selectable via menu |
| Response time |
≤ 250 µs, Selectable via menu 4) |
| ≤ 50 µs 4) |
| Switching frequency |
2 kHz |
| 10 kHz |
| Time functions |
On delay |
| Off delay |
| One shot |
| Without time delay |
| Delay time |
Programmable, 0 ms ... 9,999 ms |
| Input |
Teach-in input |
| Connection type |
Male connector M8, 4-pin |
| Cable material |
PVC |
| Conductor cross-section |
0.2 mm² |
| Cable diameter |
Ø 3.8 mm |
| Circuit protection |
A 5) |
| B 6) |
| C 7) |
| D 8) |
| Protection class |
III |
| Weight |
22 g |
| Housing material |
Plastic, PC/POM |
| Tightening torque, max. |
0.5 Nm |
| Enclosure rating |
IP66 9) |
| Ambient operating temperature |
–25 °C ... +55 °C |
| Ambient temperature, storage |
–40 °C ... +70 °C |
| UL File No. |
NRKH2.E300503 & NRKH8.E300503 |
