| Manufacturer: | SICK | Product No: | IME18-08NNSZW2S |
|---|---|---|---|
| Thread Size: | M18 X 1 | Installation Type: | Non-flush |
| Switching Frequency: | 1,000 Hz | Supply Voltage: | 10 V DC ... 30 V DC |
| Ripple: | ≤ 10 % | Cable Material: | PVC |
| Highlight: | IME18-08NNSZW2S Inductive Proximity Sensors,SICK IME18-08NNSZW2S Inductive Proximity Sensors,SICK IME18-08NNSZW2S |
||

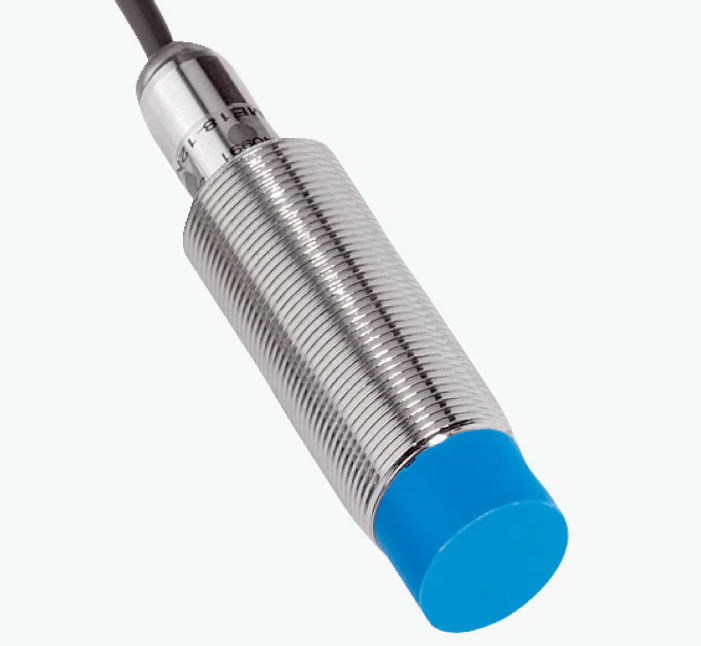

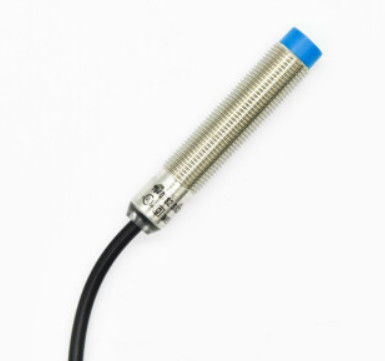

SICK IME18-08NNSZW2S Inductive proximity sensors: IME
Features
| Housing | Cylindrical thread design |
| Housing | Standard design |
| Thread size | M18 x 1 |
| Diameter | Ø 18 mm |
| Sensing range Sn | 8 mm |
| Safe sensing range Sa | 6.48 mm |
| Installation type | Non-flush |
| Switching frequency | 1,000 Hz |
| Connection type | Cable, 3-wire, 2 m |
| Switching output | NPN |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 1) |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
Mechanics/electronics
| Supply voltage | 10 V DC ... 30 V DC |
| Ripple | ≤ 10 % |
| Voltage drop | ≤ 2 V 1) |
| Time delay before availability | ≤ 100 ms |
| Hysteresis | 5 % ... 15 % |
| Reproducibility | ≤ 2 % 2) 3) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to EN 60947-5-2 |
| Continuous current Ia | ≤ 200 mA |
| No load current | ≤ 10 mA |
| Cable material | PVC |
| Conductor size | 0.25 mm² |
| Cable diameter | Ø 3.9 mm |
| Shock and vibration resistance | 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C ... +75 °C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PA 66 |
| Housing length | 67 mm |
| Thread length | 42 mm |
| Tightening torque, max. | ≤ 40 Nm |
| UL File No. | NRKH.E181493 |
