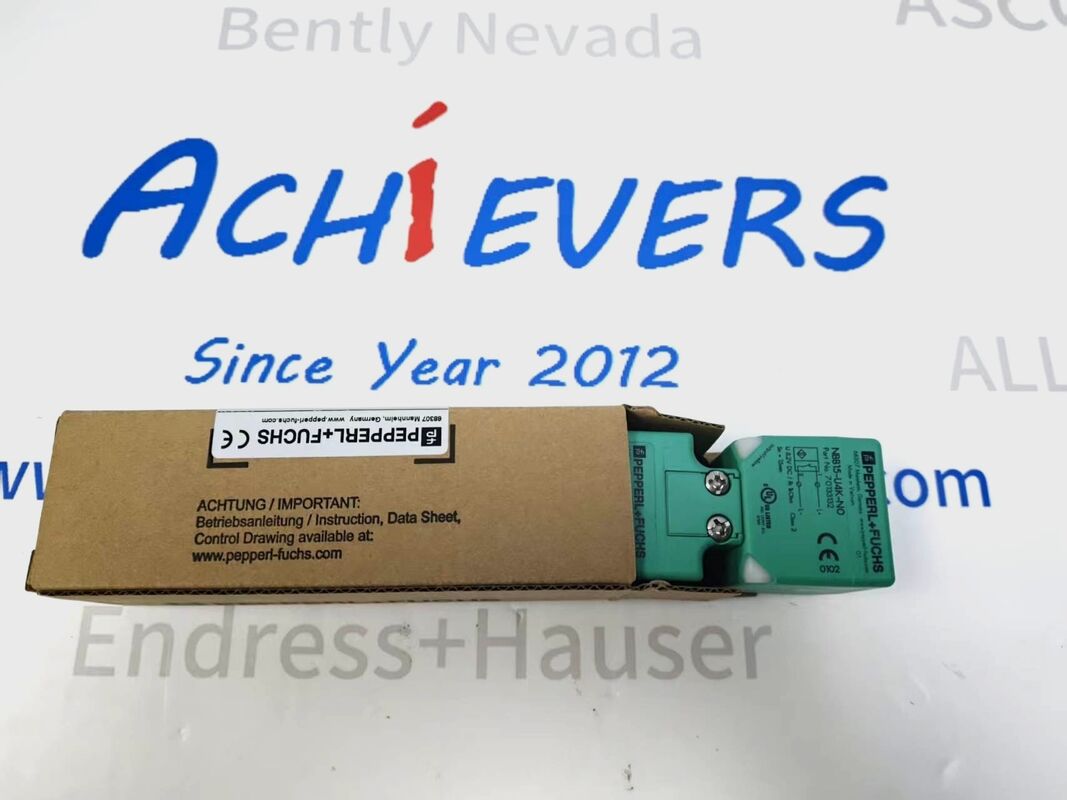

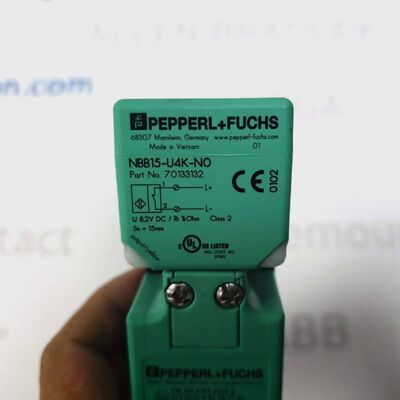

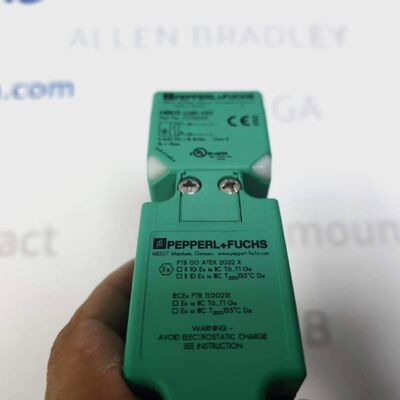

P&F NBB15-U4K-NO Inductive Proximity Sensor
Product Details:
Manufacturer : Pepperl + Fuchs
Product No. : NBB15-U4K-NO
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Pepperl+Fuchs (P&F) NBB15‑U4K‑NO is a VariKont‑series flush‑mount inductive proximity sensor with NAMUR two‑wire output, designed for intrinsically‑safe operation within explosive hazardous zonesPepperl+Fu.... This square‑style proximity sensor delivers reliable metal object detection with 15 mm rated sensing distance. The rotatable sensor head supports flexible on‑site installation, built‑in reverse‑polarity and short‑circuit protection ensures stable performance in heavy‑duty industrial and Ex‑area environmentsPepperl+Fu.... Yellow LED visual status indicator enables quick on‑site diagnosis.
Detail:
| Parameter |
Value |
| Part Number |
NBB15‑U4K‑NO |
| Brand |
Pepperl+Fuchs (P&F) |
| Product Type |
Inductive Proximity Sensor |
| Series |
VariKont |
| Switching Function |
Normally Closed (NC) |
| Output Interface |
NAMUR, 2‑wire |
| Rated Operating Distance (Sn) |
15 mm |
| Installation Type |
Flush mount |
| Assured Operating Distance (Sa) |
0‑12.15 mm |
| Actual Operating Distance (Sr) |
13.5‑16.5 mm (typical 15 mm) |
| Nominal Voltage |
8.2 V (internal resistance approx.1 kΩ) |
| Max Switching Frequency |
300 Hz |
| Hysteresis |
Typ. 5 % |
| Reverse Polarity Protection |
Yes |
| Short‑Circuit Protection |
Yes |
| Current Consumption (no target) |
≥ 2.2 mA |
| Current Consumption (target detected) |
≤ 1 mA |
| Status Indicator |
Yellow LED |
| Attribute |
Details |
| Housing Dimension |
40 mm × 40 mm × 118 mm |
| Housing Material |
PA‑plastic with metal base |
| Sensing Face Material |
PA |
| Connection Type |
Screw terminal, max 2.5 mm² wire cross‑section |
| Protection Rating |
IP68 / IP69K |
| Ambient Operating Temperature |
‑25 °C ~ +100 °C |
| Storage Temperature |
‑40 °C ~ +100 °C |
| Weight |
225 g |
| Safety Standard |
IEC 60947‑5‑6, EN 60947‑5‑6 |
| Hazardous‑Area Certifications |
ATEX, IECEx, NEPSI |
| MTTFd |
1660 years |
| Mission Time TM |
20 years |
| UNSPSC Code |
32151703 |
| ECCN |
EAR99 |
