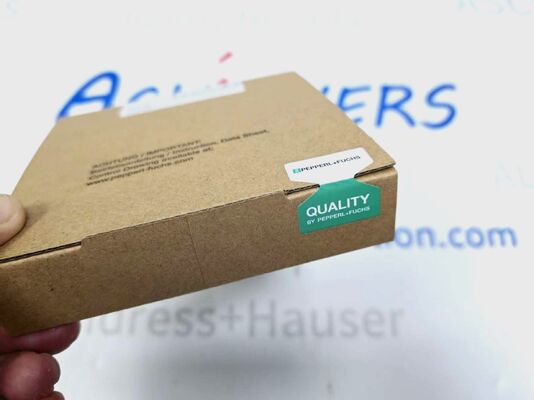

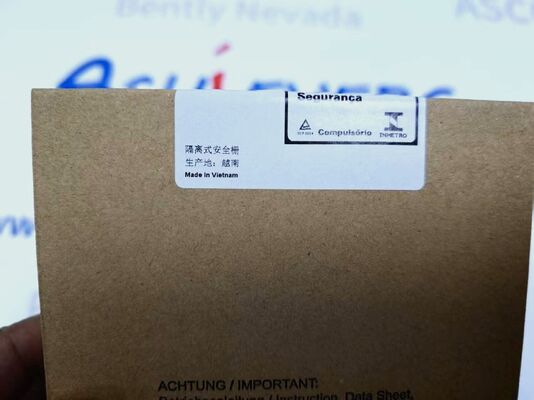

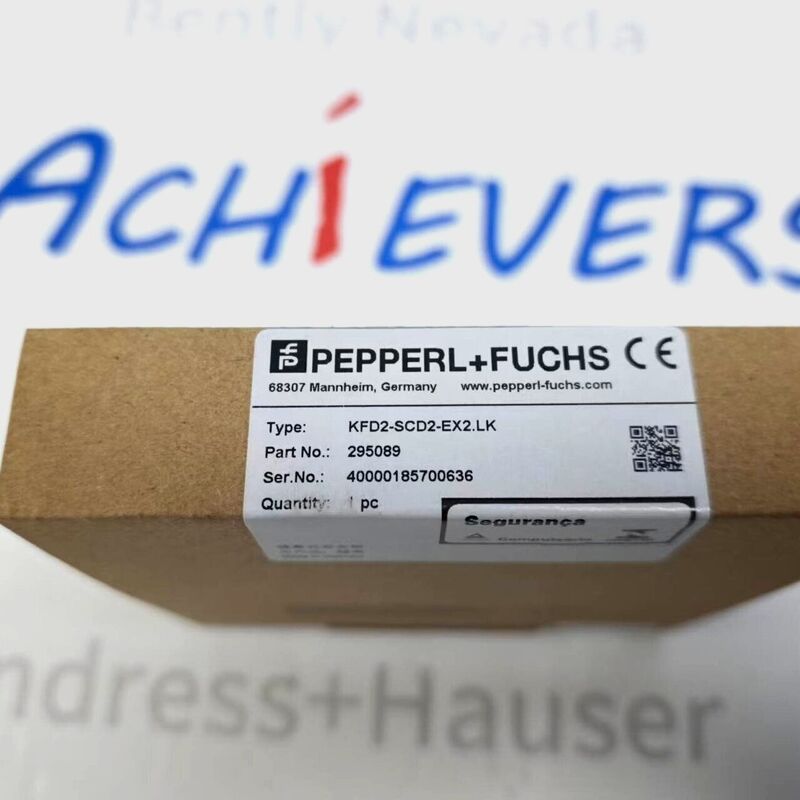

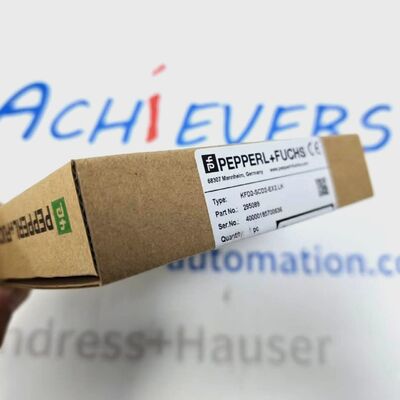

P&F KFD2-SCD2-EX2.LK SMART Current Driver Isolated Barrier
Product Details:
Manufacturer : Pepperl + Fuchs
Product No. : KFD2-SCD2-EX2.LK
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
KFD2‑SCD2‑EX2.LK is a 2‑channel intrinsically safe SMART current driver isolated barrier from Pepperl+Fuchs (P&F) K‑System series, designed for safe signal transmission between control‑side automation systems and HART‑enabled field instruments located in hazardous explosive areas. This galvanic isolation module repeats 4‑20 mA control signals to drive I/P converters, valve positioners and solenoid valves, supporting bidirectional HART digital communication superimposed on analog loops. Built‑in line fault detection (LFD) monitors open‑circuit and short‑circuit field wiring conditions. It complies with IEC 61508 functional safety up to SIL 2 (SC 3), widely deployed in chemical, oil & gas and petrochemical process plantsplcsupplys...
Detail:
| Parameter |
Specification |
| Part Number |
KFD2‑SCD2‑EX2.LK |
| Brand |
Pepperl+Fuchs (P&F) |
| Product Category |
Isolated Barrier / SMART Current Driver |
| Channel Count |
2‑channel |
| Input Signal |
4‑20 mA (control side), limited ~30 mA maxPepperl+Fu... |
| Output Signal |
4‑20 mA (intrinsically‑safe field side) |
| Max Field Load |
Up to 650 ΩPepperl+Fu... |
| Supply Voltage |
19 ‑ 30 V DC, ripple ≤10 %Pepperl+Fu... |
| Power Consumption |
≤1 W @ 20 mA, 500 Ω load |
| Signal Accuracy |
0.1 % full‑scale |
| Communication |
HART bidirectional support |
| Safety Level |
SIL 2, SC 3 (IEC 61508)Pepperl+Fu... |
| Fault Monitoring |
Line Fault Detection (LFD): open‑loop / short‑circuit |
| Input Terminals |
7‑, 8+, (9+); 10‑, 11+, (12+) |
| Output Terminals |
1+, 2‑; 4+, 5‑ |
| Attribute |
Details |
| Mounting |
35 mm DIN‑rail (EN 60715) |
| Housing Dimension |
20 mm(W) × 115 mm(L) × 124 mm(H) |
| Operating Temperature |
-40 °C ~ +70 °C |
| Galvanic Isolation |
Control‑side ↔ Field‑side galvanic isolation |
| Certifications |
ATEX, IECEx intrinsically‑safe associated apparatus |
| Series |
P&F K‑System |
| UNSPSC Code |
32151605 |
| HS Customs Code |
85371000 |
| ECCN |
EAR99 |
| REACH / RoHS |
Compliant, documentation available |
