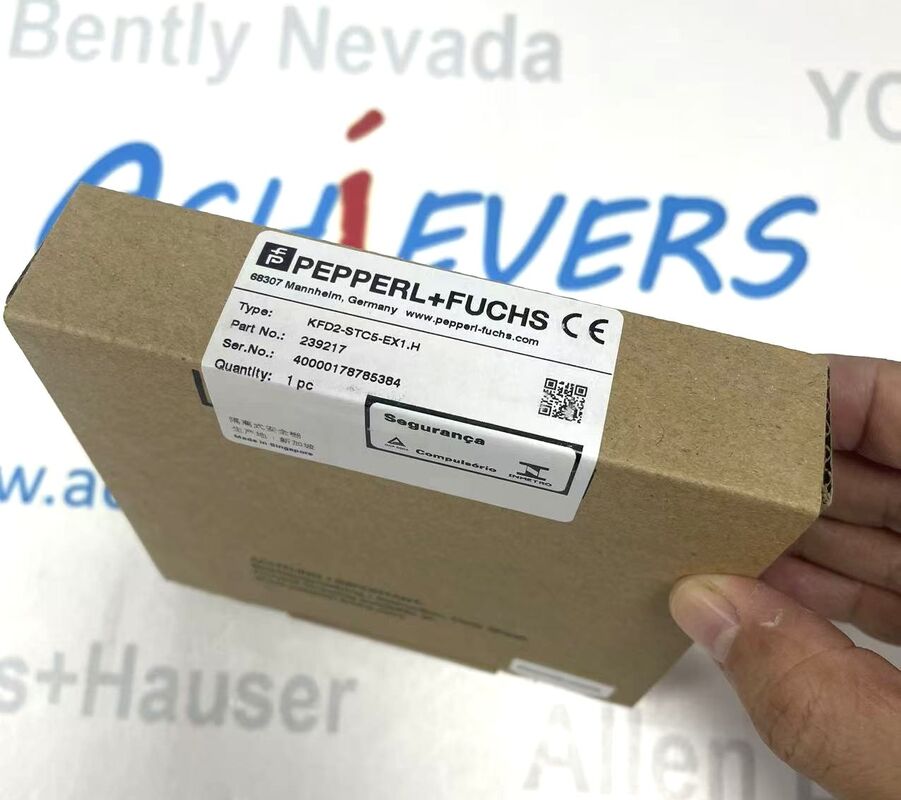

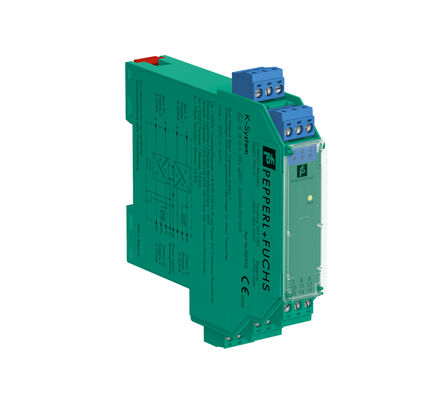

Pepperl Fuchs KFD2-STC5-EX1.H high-performance safety barrier
Description:
Manufacturer : Pepperl+Fuchs
Product No. : KFD2-STC5-EX1.H
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The KFD2-STC5-EX1.H from PF is a high-performance safety barrier engineered for signal isolation and protection in explosive industrial environments. As a critical component in intrinsic safety systems, this device safeguards personnel, equipment, and processes by limiting electrical energy to non-hazardous levels in explosive atmospheres. Designed to comply with strict international防爆 (explosion protection) standards, the PF KFD2-STC5-EX1.H integrates advanced isolation technology with durable construction, making it suitable for diverse applications in oil and gas exploration, chemical processing, and pharmaceutical manufacturing. For comprehensive technical documentation, including installation procedures and performance parameters, the KFD2-STC5-EX1.H PDF manual serves as an essential resource for engineers and maintenance professionals.
Detail:
|
Parameter
|
Specification
|
|
Manufacturer
|
Pepperl+Fuchs
|
|
Model Number
|
KFD2-STC5-EX1.H
|
|
Type
|
1-channel Isolated Barrier / Smart Transmitter Power Supply
|
|
Supply Voltage
|
18 ... 30 V DC (Power Rail or Terminals 14+, 15-)
|
|
Power Dissipation
|
≤ 1 W at maximum load
|
|
Power Consumption
|
≤ 1.6 W at maximum load
|
|
Input Signal
|
4 ... 20 mA (Field Side, Terminals 1+, 2-, 3)
|
|
Input Resistance
|
Max. 265 Ω (Terminals 2-, 3); Max. 330 Ω (Terminals 1+, 3)
|
|
Output Signal
|
4 ... 20 mA (Overload > 25 mA), Current Sink/Source
|
|
Output Load
|
0 ... 800 Ω
|
|
Output Ripple
|
Max. 50 µA RMS
|
|
Functional Safety
|
SIL 2 (SC 3) acc. to IEC/EN 61508
|
|
Ambient Temperature
|
-20 ... 60 °C (-4 ... 140 °F); Extended up to 70 °C (158 °F) with specific mounting
|
|
Dimensions (W x H x D)
|
20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch)
|
|
Weight
|
Approx. 200 g
|
|
Certifications & Conformity
|
EN 61326-1:2013, UL 61010-1:2012, Directive 2014/30/EU (EMC)
|
