Pepperl Fuchs FI-PFH-NSD137-R High-Performance HART Termination Board for Industrial Automation
Description:
Manufacturer : Pepperl+Fuchs
Product No. :
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

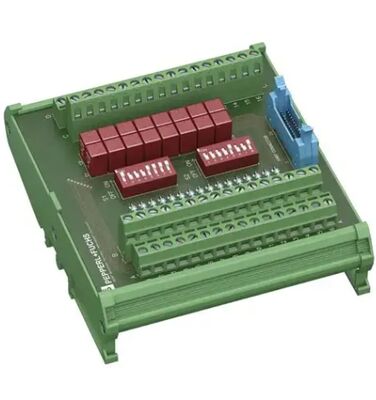

The FI-PFH-NSD137-R from Pepperl+Fuchs is a specialized HART termination board designed for seamless integration with K-System HART multiplexers. Engineered to meet rigorous industrial standards, this module delivers reliable signal handling, flexible connection options, and robust performance in harsh industrial environments. As a trusted product from Pepperl+Fuchs, a global leader in industrial automation solutions, the FI-PFH-NSD137-R ensures stable communication between HART devices and control systems, making it an essential component for process automation in various industries.
Detail:
|
Specification Category
|
Details
|
|
Signal Channels
|
16 HART signal channels (non-intrinsically safe)
|
|
Load Resistor
|
220 Ω, switchable (controlled by DIP switch)
|
|
Interface Type
|
Multiplexer connection: 26-pin IDC plug; Field/control side: Screw terminals
|
|
Rated Current
|
Maximum 30 mA per channel
|
|
Operating Mode Selection
|
DIP switch: ON (without load resistor), OFF (with load resistor); Factory setting: S1 and S2 set to ON
|
|
Environmental Conditions
|
Ambient temperature: 0 ... 50 °C (32 ... 122 °F); Storage temperature: -15 ... 50 °C (5 ... 122 °F); Relative humidity: ≤ 93% non-condensing
|
|
Mechanical Performance
|
Shock resistance: 15 g, 11 ms; Vibration resistance: 1 g, 10 ... 150 Hz
|
|
Protection Level
|
IP20 (IEC 60529:2001)
|
|
Mechanical Specifications
|
Housing material: PVC; Weight: Approx. 210 g; Dimensions (W×H×D): 110×125×61 mm (4.3×4.9×2.4 inches); Mounting: 35 mm DIN rail (EN 60715:2001)
|
|
Compliance Standards
|
Electromagnetic compatibility: Directive 2014/30/EU, EN 61326-1:2013, NE 21:2017; Explosion protection: Directive 2014/34/EU, EN IEC 60079-0:2018+AC:2020, EN 60079-15:2010; Certificate: PF 11 CERT 1930 X; Marking: II 3 G Ex na IIC T4 Gc
|
|
Wiring Specifications
|
Core cross-section: 0.25 ... 1.5 mm² (24 ... 16 AWG)
|
