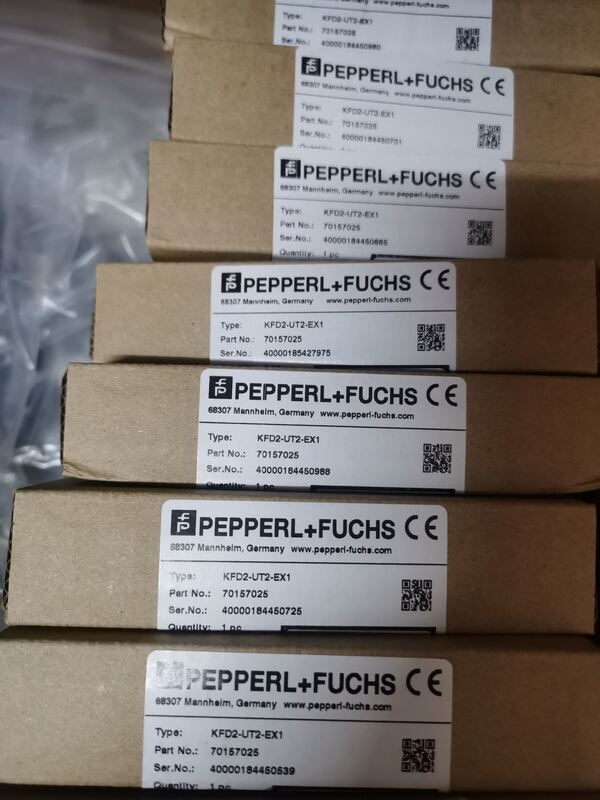

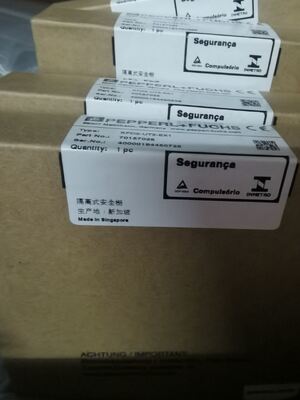

KFD2-UT2-EX1 - Isolated Temperature Transmitter Barrier (SIL 2)
Description:
Manufacturer :
Product No. :KFD2-UT2-EX1
https://www.achievers-automation.com More Product
Detail:
|
Parameter
|
Details
|
|
Product Model
|
KFD2-UT2-EX1
|
|
Product Type
|
Isolated temperature safety barrier (single-channel)
|
|
Safety Certifications
|
ATEX (TÜV 02 ATEX 1797 X), IEC 61508/IEC 61511 (SIL 2)
|
|
Hazardous Area Ratings
|
II 1G (Ex ia Ga) IIC; II 1D (Ex ia Da) IIIC; I (M1) (Ex ia Ma) I
|
|
Power Supply
|
20-30 V DC (power rail or terminal connection: 14+, 15-)
|
|
Power Dissipation
|
≤ 0.98 W
|
|
Input Compatibility
|
- RTD: Pt10/Pt50/Pt100/Pt500/Pt1000 (EN 60751), GOST variants, Cu10/Cu50/Cu100, Ni100 Thermocouple: B/E/J/K/N/R/S/T (IEC 584-1), L (DIN 43710), TXK/TXKH/TXAentiometer: 0-20 kΩ (2-wire), 0.8-20 kΩ (3-wire)>- Voltage: -100 to 100 mV
|
|
Input Configuration
|
2-/3-/4-wire (RTD); internal/external cold junction compensation (thermocouple)
|
|
Input Protection
|
Sensor breakage, short-circuit monitoring; lead resistance ≤ 50 Ω per line
|
|
Output Signal
|
Analog current: 0-20 mA or 4-20 mA (configurable)
|
|
Fault Signals
|
Downscale: 0 or 2 mA; Upscale: 21.5 mA (compliant with NAMUR NE43)
|
|
Output Load Capacity
|
0-550 Ω; Open-circuit voltage ≤ 18 V
|
|
Measurement Accuracy
|
- RTD (Pt100, 4-wire): ±(0.06% of measured value + 0.1% of range + 0.1 K)- Thermocouple: ±(0.05% of measured value + 0.1% of range + 1 K; 1.2 K for R/S types)
|
|
Response Time
|
Max 2.05 s (potentiometer); 1.1 s (thermocouple with CJC); 920 ms (3-/4-wire RTD)
|
|
Isolation Rating
|
Safety isolation (input/other circuits): 375 V peak (IEC/EN 60079-11)
|
|
Mechanical Design
|
DIN rail-mount (35 mm, EN 60715); Housing type B2
|
|
Dimensions (W x H x D)
|
20 mm x 119 mm x 115 mm (0.8 x 4.7 x 4.5 inches)
|
|
Operating Temperature Range
|
-20 °C to 60 °C (-4 °F to 140 °F); extendable to 70 °C (158 °F) with specific mounting
|
|
Protection Level
|
IP20 (control cabinet installation)
|
|
Net Weight
|
Approximately 130 g (0.29 lbs)
|
|
Configuration Software
|
PACTware™ (via programming socket)
|
