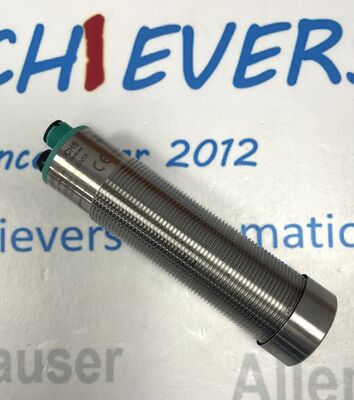

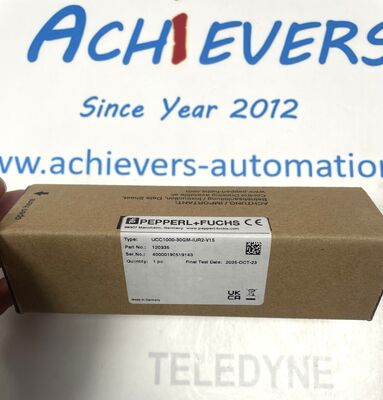

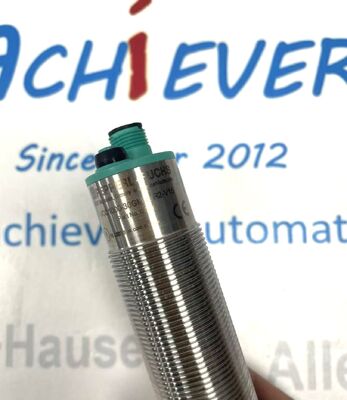

Pepperl+Fuchs UCC1000-30GM-IUR2-V15 Ultrasonic Sensor
Description:
Manufacturer : Pepperl+Fuchs
Product No. : UCC1000-30GM-IUR2-V15
https://www.achievers-automation.com More Product
Detail:
| Sensing Performance |
Sensing Range |
80 ... 1000 mm |
|
Adjustment Range |
100 ... 1000 mm |
|
Dead Band |
0 ... 80 mm |
|
Standard Target Plate |
100 mm x 100 mm |
|
Transducer Frequency |
Approx. 175 kHz |
|
Response Delay |
Minimum 65 ms; 195 ms (factory setting) |
|
Resolution |
Evaluation range (mm)/4000, minimum ≥0.35 mm |
| Electrical Specifications |
Operating Voltage |
10 ... 30 V DC, 10% ripple (SS) |
|
Power Consumption |
≤ 900 mW |
|
Warm-up Time |
≤ 500 ms |
|
Output Type |
1 x 4...20 mA current output; 1 x 0...10 V voltage output |
|
Load Impedance |
Current output: ≤ 500 Ohm; Voltage output: ≥ 1000 Ohm |
| Communication & Control |
Interface |
RS 232 (9600 Bit/s, no parity, 8 data bits, 1 stop bit) |
|
Synchronization Frequency |
Common mode: max. 30 Hz; Multiplex mode: ≤30 Hz/n (n=number of sensors, n≤5) |
| Mechanical Specifications |
Housing Material |
Stainless steel 1.4305 / AISI 303 |
|
Transducer Material |
PTFE (coated surface) |
|
Connection Type |
M12 x 1, 5-pin connector |
|
Protection Class |
IP65 |
|
Dimensions (L x D) |
115 mm x 30 mm |
|
Weight |
170 g |
| Environmental Conditions |
Operating Temperature |
0 ... 70 °C (32 ... 158 °F) |
|
Storage Temperature |
-40 ... 85 °C (-40 ... 185 °F) |
| Compliance & Certifications |
Standards |
EN IEC 60947-5-2:2020; IEC 60947-5-2:2019; EN 60947-5-7:2003; IEC 60947-5-7:2003 |
|
Certifications |
cULus Listed (general purpose); CCC not required (rated voltage ≤36 V) |
