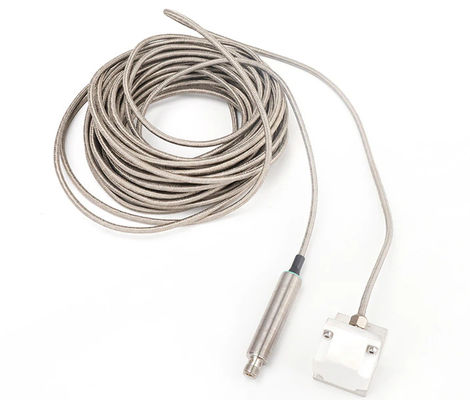

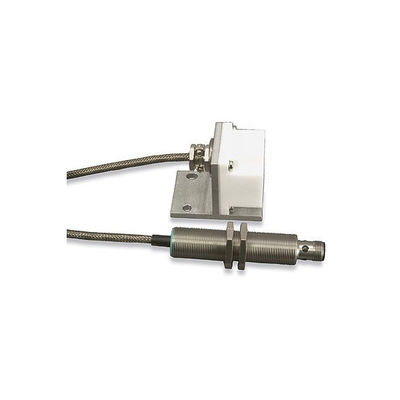

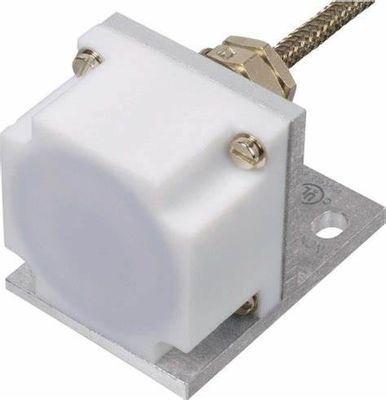

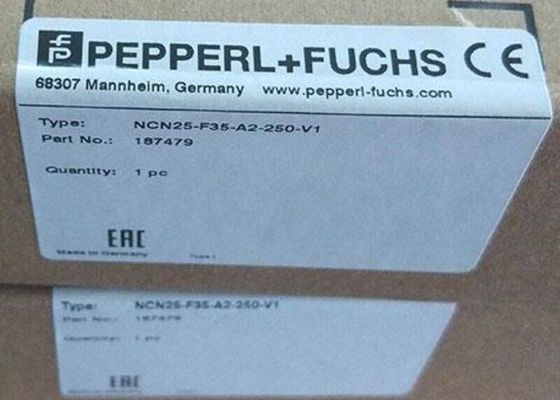

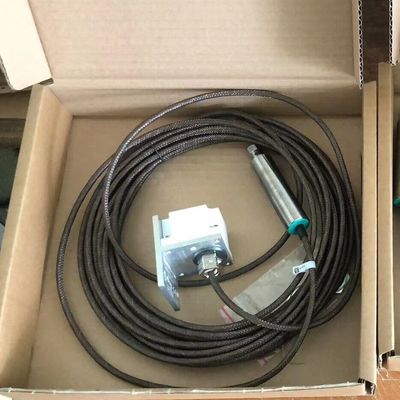

PEPPERL FUCHS Inductive sensor NCN25-F35-A2-250-V1Suitable for drag chains and abrasion resistant
| General specifications |
| Switching function |
complementary |
| Output type |
PNP |
| Rated operating distance |
25 mm |
| Installation |
flush mountable |
| Output polarity |
DC |
| Assured operating distance |
0 ... 20 mm |
| Reduction factor rAl |
0.5 |
| Reduction factor rCu |
0.5 |
| Reduction factor r304 |
0.6 ... 1 |
| Output type |
4-wire |
| Mounting angle |
Al |
| Amplifier housing |
Stainless steel |
| Nominal ratings |
| Operating voltage |
10 ... 30 V |
| Switching frequency |
0 ... 20 Hz |
| Hysteresis |
0.3 ... 5 typ. 2 % |
| Reverse polarity protection |
reverse polarity protected |
| Short-circuit protection |
pulsing |
| Voltage drop |
≤ 3 V |
| Operating current |
0 ... 200 mA |
| No-load supply current |
≤ 25 mA |
| Time delay before availability |
≤ 20 ms |
| Switching state indicator |
Multihole-LED, yellow |
| Functional safety related parameters |
| MTTFd |
7515 a |
| Mission Time (TM) |
20 a |
| Diagnostic Coverage (DC) |
0 % |
| Compliance with standards and directives |
| Standard conformity |
|
| |
Standards |
EN IEC 60947-5-2 |
| Approvals and certificates |
| UL approval |
cULus Listed, General Purpose, Class 2 Power Source |
| CCC approval |
CCC approval / marking not required for products rated ≤36 V |
| Ambient conditions |
| Ambient temperature |
0 ... 250 °C (32 ... 482 °F) |
| Mechanical specifications |
| Connection type |

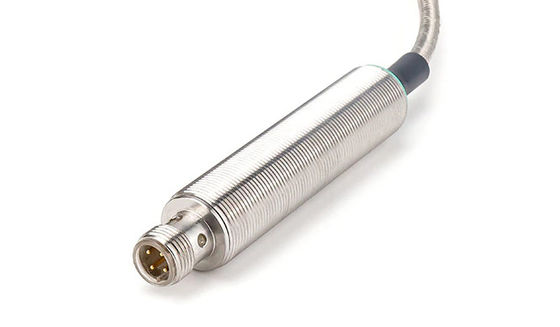

Connector plug M12 x 1 , 4-pin |
| Cable version |
PFA cable, with armour of stainless steel |
| Core cross section |
3 x 0.34 , screened |
| Housing material |
PTFE / Al / 1.4305 / AISI 303 |
| Sensing face |
PTFE |
| Degree of protection |
amplifier IP67
sensor IP40 |
| Dimensions |
|
| |
Height |
40 mm |
| |
Width |
44 mm |
| |
Length |
56 mm |
| Cable length |
L = 10 m |
| Note |
- amplifier 0 °C ... 70 °C
- r1.4305 dep. on thickness of measurement plate d:
r1.4305 = 1 for d < 1mm
Additional accessory: Protective cover SH-F35 is available for use in areas where there is moisture and as a means of mechanical protection. |
