Product Details:
Payment & Shipping Terms:
|
| Manufacturer: | Pepperl+Fuchs | Product No: | GL20-IR/32/40a/98a |
|---|---|---|---|
| Light Source: | IRED | Target Size: | 0.3 Mm |
| Slot Width: | 20 Mm | Slot Depth: | 17 Mm |
| Ripple: | 10 % | UL Approval: | IP67 |
| Highlight: | PEPPERL FUCHS Photoelectric slot sensor,GL20-IR/32/40a/98a Photoelectric slot sensor,Sturdy aluminum housing Photoelectric slot sensor |
||

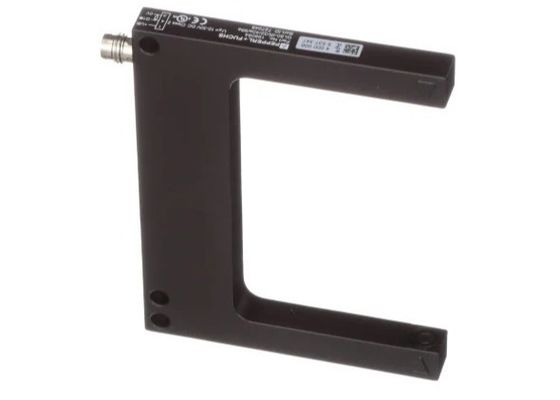

PEPPERL FUCHS GL20-IR/32/40a/98a Photoelectric slot sensor
| Product Description |
|---|
| Photoelectric slot sensor, aluminum housing, 20 mm slot width, infrared light, light/dark on, sensitivity adjuster, DC version, PNP output, 3 pin M8 plug |
| General specifications | ||
|---|---|---|
| Light source | IRED | |
| Light type | modulated infrared light | |
| Tests | EN 60947-5-2 | |
| Target size | 0.3 mm | |
| Slot width | 20 mm | |
| Slot depth | 17 mm | |
| Ambient light limit | 100000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 1290 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Function indicator | LED red in connector | |
| Control elements | Sensitivity adjuster, light/dark switch | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC, class 2 | |
| Ripple | 10 % | |
| No-load supply current | ≤ 15 mA | |
| Output | ||
| Switching type | light/dark on | |
| Signal output | 1 PNP, short-circuit protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Repeat accuracy | 0.05 mm | |
| Switching frequency | 2 kHz | |
| Response time | ≤ 250 µs | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| CE conformity | CE | |
| UL approval | cULus | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) | |
| Storage temperature | -20 ... 75 °C (-4 ... 167 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | M8 connector, 3-pin | |
| Material | ||
| Housing | anodized aluminum | |
| Optical face | glass | |
| Mass | 25 g | |
| Dimensions | ||
| Height | 40 mm | |
| Width | 10 mm | |
| Length | 46 mm | |
