PEPPERL FUCHS NMB10-18GH50-E2-V1 Inductive Sensor with Switching Frequency of 0 ... 300 Hz

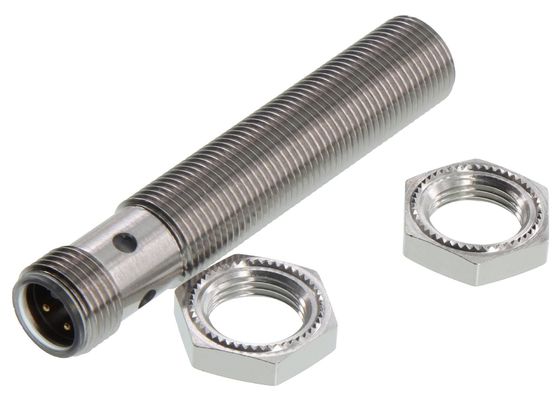

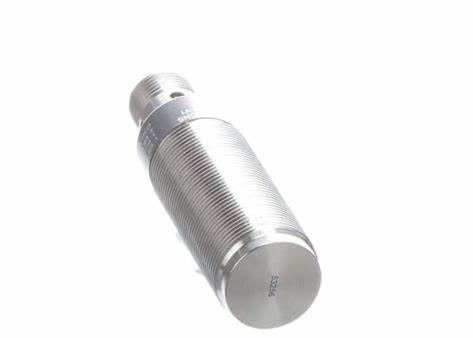

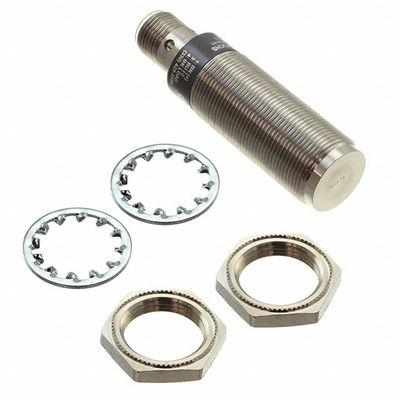

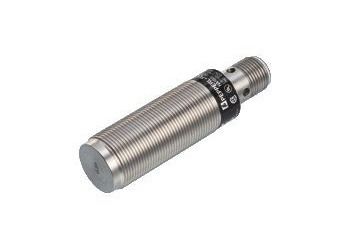

Large Image : PEPPERL FUCHS NMB10-18GH50-E2-V1 Inductive Sensor with Switching Frequency of 0 ... 300 Hz

Product Details:

Place of Origin:	Germany
Brand Name:	PF
Certification:	ATEX
Model Number:	NMB10-18GH50-E2-V1

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	USD98.00/PC
Packaging Details:	20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1
Delivery Time:	12-14 weeks
Payment Terms:	Alipay
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Manufacturer:	Pepperl+Fuchs	Product No:	NMB10-18GH50-E2-V1
Output Type:	Output Type	Output Polarity:	DC
Switching Frequency:	0 ... 300 Hz	Voltage Drop:	≤ 2 V
Operating Current:	0 ... 200 MA	Length:	63.5 Mm
Highlight:	PEPPERL FUCHS Inductive Sensor , 300 Hz Inductive Sensor , NMB10-18GH50-E2-V1 Inductive Sensor

PEPPERL FUCHS NMB10-18GH50-E2-V1 Inductive sensor

General specifications
Switching function		Normally open (NO)
Output type		PNP
Rated operating distance		10 mm
Installation		flush in mild steel
Output polarity		DC
Assured operating distance		0 ... 8.1 mm
Reduction factor r_Al		0.4
Reduction factor r_Cu		0.25
Reduction factor r₃₀₄		0.5 (0.9 of material thickness 2 mm)
Reduction factor r_St37		1
Output type		3-wire
Nominal ratings
Installation conditions
	A	0 mm
	B	16 mm
	C	30 mm
	F	60 mm
Operating voltage		10 ... 30 V
Switching frequency		0 ... 300 Hz
Hysteresis		3 ... 15 typ. 5 %
Reverse polarity protection		yes
Short-circuit protection		yes
Voltage drop		≤ 2 V
Operating current		0 ... 200 mA
Off-state current		≤ 0.1 mA
No-load supply current		≤ 10 mA
Time delay before availability		≤ 40 ms
Switching state indicator		LED, yellow
Limit data
Operating pressure statically		60 bar (870.2 psi) max.
Functional safety related parameters
MTTF_d		655 a
Mission Time (T_M)		20 a
Diagnostic Coverage (DC)		0 %
Compliance with standards and directives
Standard conformity
	Standards	EN IEC 60947-5-2
Approvals and certificates
UL approval		cULus Listed, General Purpose
CCC approval		CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature		-25 ... 85 °C (-13 ... 185 °F)
Mechanical specifications
Connection type		Connector plug M12 x 1 , 4-pin
Housing material		Stainless steel 1.4435 / AISI 316L
Sensing face		Stainless steel 1.4435 / AISI 316L
Degree of protection		IP68 / IP69K
Mass		24 g
Dimensions
	Length	63.5 mm
	Diameter	18 mm
General information
Assembly dimensions		x: 18 mm y: ≥ 4 mm

PEPPERL FUCHS NMB10-18GH50-E2-V1 Inductive Sensor with Switching Frequency of 0 ... 300 Hz 0

Are the Products Genuine OEM Units?

These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

Does Achievers sell to international Non-USA customers?

Yes, Achievers offers services to clients around the globe. In fact, a large portion of our company is international, and we have experience shipping to locations all over the world.
