Product Details:
Manufacturer : Pepperl+Fuchs

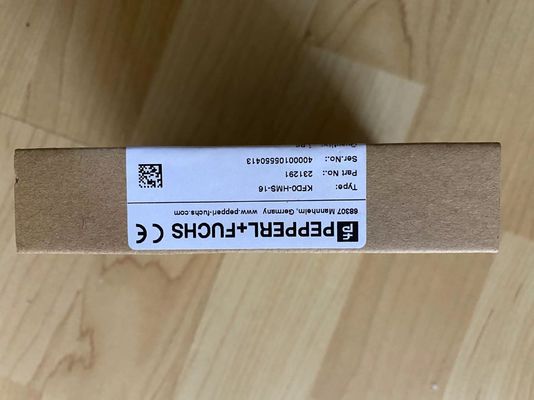

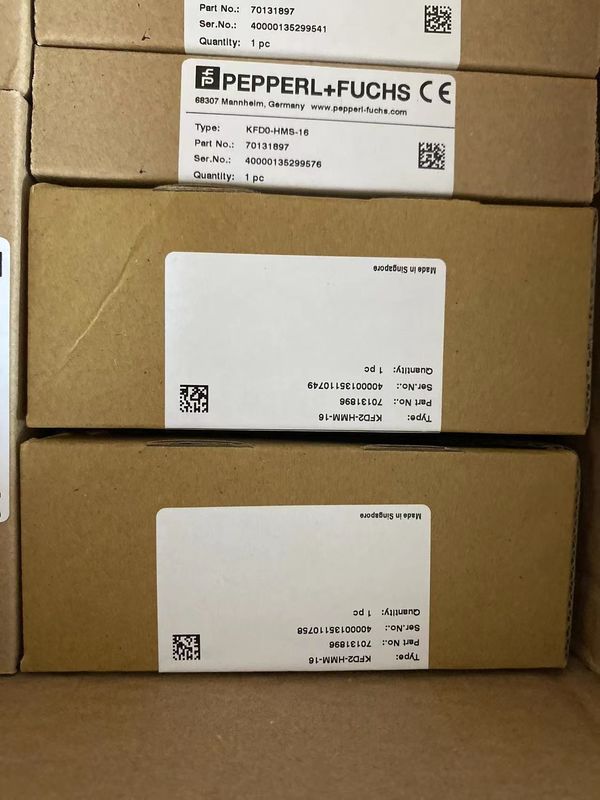

Product No. : KFD0-HMS-16
Product Type : HART Multiplexer Slave
Features:
- 16-channel
- No external power required
- HART field device input (revision 5 to 7)
- Used with HART Multiplexer Master KFD2-HMM-16
- Up to SIL 3 acc. to IEC/EN 61508
Function
This HART Multiplexer Slave operates up to 16 analog field instruments. It can be operated only with the HART Multiplexer Master KFD2-HMM-16 and is powered by the master across a 14- pin flat cable connection.
Up to 15 slaves can be connected to the master.
The slave address is set with a 16- position rotary switch (addresses 1 ... 16). If only one slave is connected to the master, then the slave address should be 1. If multiple slaves are connected, slaves must be assigned addresses in ascending order.
The analog signals are fed into the slave by means of a 26-pin flat cable. Sixteen leads are reserved for the HART signal of the analog measurement circuits. The remaining 10 leads are assigned to ground.
Technical data
1. Product Description
HART: Multiplexer Slave
2. Functional safety related parameters
Safety Integrity Level (SIL): SIL 3
3. Supply
Connection: via 14-channel flat cable form master KFD2-HMM-16
4. HART signal channels (non-intrinsically safe)
Conformity: HART field device input (revision 5 to 7)
Connection: 26-pin flat cable for analog connections
14-pin flat cable for master-slave connection between KFD2-HMM-16 and KFD0-HMS-16
Leakage current: < 3 µA at -20 ... 85 °C (-4 ... 185 °F)
Terminating resistor: external 230 ... 500 Ω standard (up to 1000 Ω possible)
Output voltage: ≥ 400 mV ss (with the terminator resistance specified above)
Output resistance: 100 Ω or smaller, capacitive coupling
Input impedance: according to HART specification
Input voltage range: 0.08 ... 4 V ss ; typ. ± 5.2 V as local reference
5. Indicators/settings
Labeling: space for labeling at the front
6. Directive conformity
Electromagnetic compatibility
Directive 2014/30/EU: EN 61326-1:2013 (industrial locations)
7. Conformity
Degree of protection: IEC 60529:2001
8. Ambient conditions
Ambient temperature: -20 ... 65 °C (-4 ... 149 °F)
9. Mechanical specifications
Degree of protection: IP20
Mass: approx. 100 g
Dimensions: 20 x 93 x 115 mm (0.8 x 3.7 x 4.5 inch) (W x H x D) , housing type B1
Height: 93 mm
Width: 20 mm
Depth: 115 mm
Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001
