Product Details:
Manufacturer :

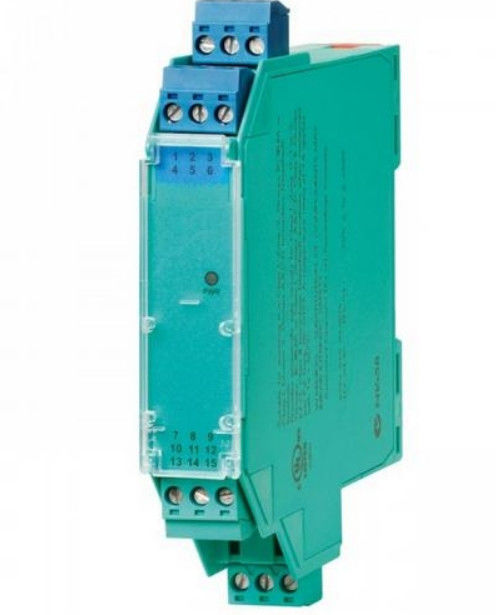

Product No. : KCD2-STC-Ex1.20
Product Type : SMART Transmitter Power Supply
Features:
- 1-channel isolated barrier
- 24 V DC supply (Power Rail)
- Input for 2-wire SMART transmitters and current sources
- Signal splitter (1 input and 2 outputs)
- Dual output 0/4 mA ... 20 mA or 0/1 V ... 5 V
- Terminal blocks with test sockets
- Up to SIL 2 (SC 3) acc. to IEC/EN 61508
Function
The device supplies 2-wire transmitters in the hazardous area, and can also be used with current sources.
It transfers the analog input signal to the safe area as two isolated output signals.
Bi-directional communication is supported for SMART transmitters that use current modulation to transmit data and voltage modulation to receive data.
The output is selected as a current source, current sink, or voltage source via switches.
Test sockets for the connection of HART communicators are integrated into the terminals of the device.
Technical data
1.specifications
Signal type: Analog input
2.Functional safety related parameters
Safety Integrity Level (SIL): SIL 2
Systematic capability (SC): SC 3
3.Supply
Connection: Power Rail or terminals 9+, 10-
Rated voltage: 19 ... 30 V DC
Ripple: within the supply tolerance
Power dissipation: approx. 1.4 W at 20 mA transfer current, 250 Ω in both outputs
Power consumption: 2 W
4.Input
Connection side: field side
Connection: terminals 1+, 2- (sink); 3+, 4- (source)
Input signal: 0/4 ... 20 mA
Voltage drop: terminals 3, 4: ≤ 6.1 V at 20 mA
Short-circuit current: terminals 1+, 2-: 25 mA
Input resistance: terminals 1+, 2-: max. 500 Ω (BRAIN)
(250 Ω load)
Available voltage: terminals 1+, 2-: ≥ 16 V at 20 mA , ≥ 18.5 V at 4 mA
5.Output
Connection side: control side
Connection: source: terminals 5-, 6+; 7-, 8+
sink: terminals 5+, 6-, 7+, 8-
Load: channel 1: 0 ... 500 Ω (20 mA)/> 1 MΩ (5 V)
channel 2: 0 ... 500 Ω (20 mA)/> 1 MΩ (5 V)
Output signal: 0/4 ... 20 mA or 0/1 ... 5 V
Ripple: max. 50 µA rms
