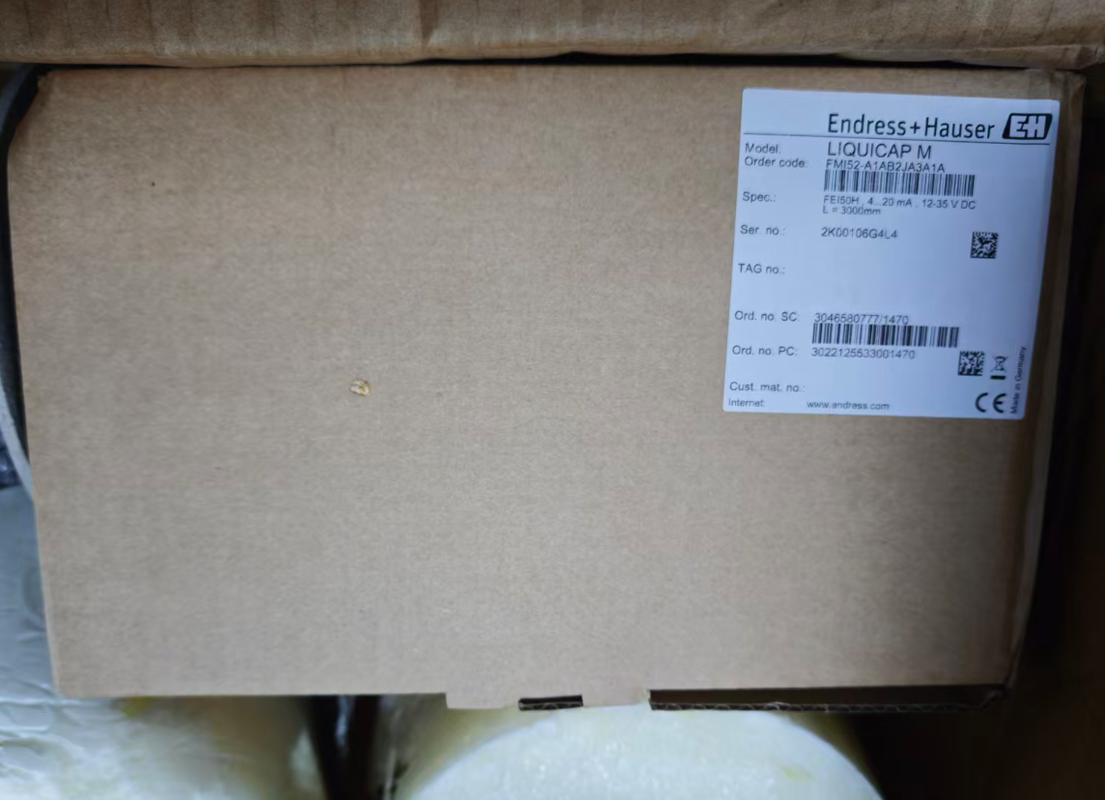

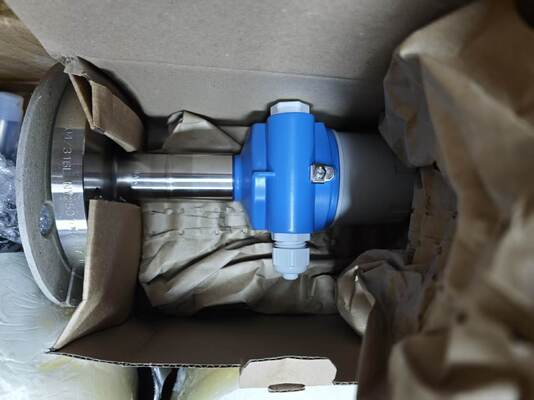

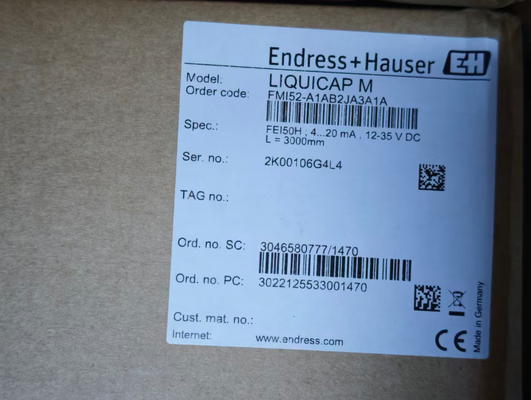

E+H FMI52-A1AB2JA3A1A iquicap FMI52 Capacitive Level Transmitter
Product Details:
Manufacturer : Endress+Hauser
Product No. : FMI52-A1AB2JA3A1A
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Endress+Hauser FMI52‑A1AB2JA3A1A (Liquicap FMI52) is a fully‑insulated rope‑type capacitive level sensor designed for continuous liquid‑level measurement. It delivers stable readings for adhesive‑prone media, high‑temperature and high‑pressure tank applications. For liquids with conductivity ≥100 μS/cm, measurement results are dielectric‑constant independent; no recalibration is required for medium changes. Widely deployed in chemical, petrochemical and storage‑tank process systems.
Detail:
| Item |
Specification |
| Model |
FMI52‑A1AB2JA3A1A |
| Brand |
Endress+Hauser (E+H) |
| Product Series |
Liquicap FMI52 |
| Measuring Principle |
Capacitance continuous level measurement |
| Max. measuring distance |
0.42 m ~ 10.0 m (1.38 ft‑33 ft) |
| Repeatability |
0.1 % |
| Process temperature |
−80 °C ~ +200 °C (−112 °F ~ +392 °F) |
| Process pressure |
Vacuum up to 100 bar (1450 psi) |
| Wetted‑part materials |
316L SS, PFA / FEP insulation |
| Medium conductivity threshold |
≥100 μS/cm (DK‑value independent measurement) |
| Ambient temperature |
−50 °C ~ +70 °C |
| Communication / Output |
4‑20 mA with HART protocol |
| Ingress protection |
IP66 / IP67, NEMA 4X |
| Safety certification |
SIL2 (IEC 61508), ATEX, WHG overfill prevention |
| Code Segment |
Definition |
| FMI52 |
Liquicap series capacitive level transmitter, rope probe |
| A |
Probe insulation type, FEP insulation |
| 1 |
Probe active length configuration |
| A |
Process connection form |
| B |
Electronics module, 4‑20mA HART output |
| 2 |
Explosion‑proof approval variant |
| J |
Housing material, aluminum housing |
| A |
Cable gland M20 |
| 3 |
Mechanical housing version |
| A |
Basic device configuration |
| 1 |
Additional hardware option |
| A |
Factory preset software setting |
Brand
E+H is a global leader in providing measurement instruments, services, and solutions for the process and laboratory industries. Since its founding in 1953, the company has been committed to enhancing production efficiency, safety, and sustainability through innovative technologies. E+H’s product portfolio covers a wide range of areas, including flow measurement, level measurement, pressure and temperature measurement, analytical instrumentation, and data management. Its solutions are widely used in industries such as chemicals, food and beverage, oil and gas, power generation, and water and wastewater treatment.
Company Introduction:
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, , YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
