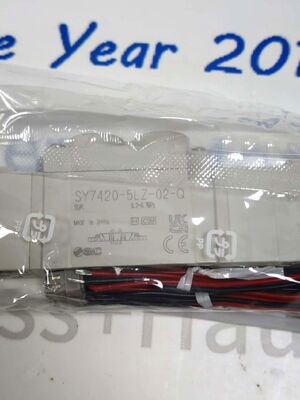

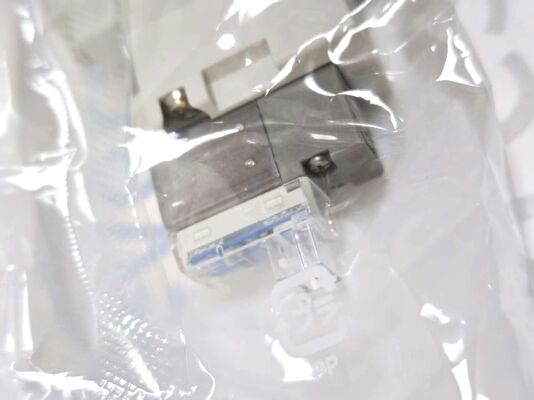

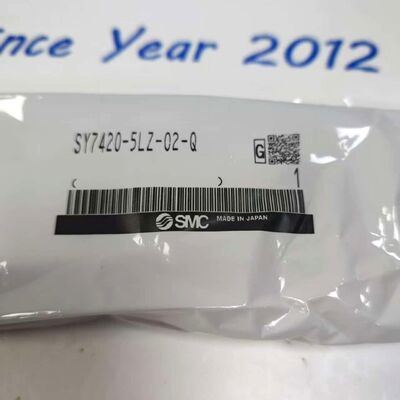

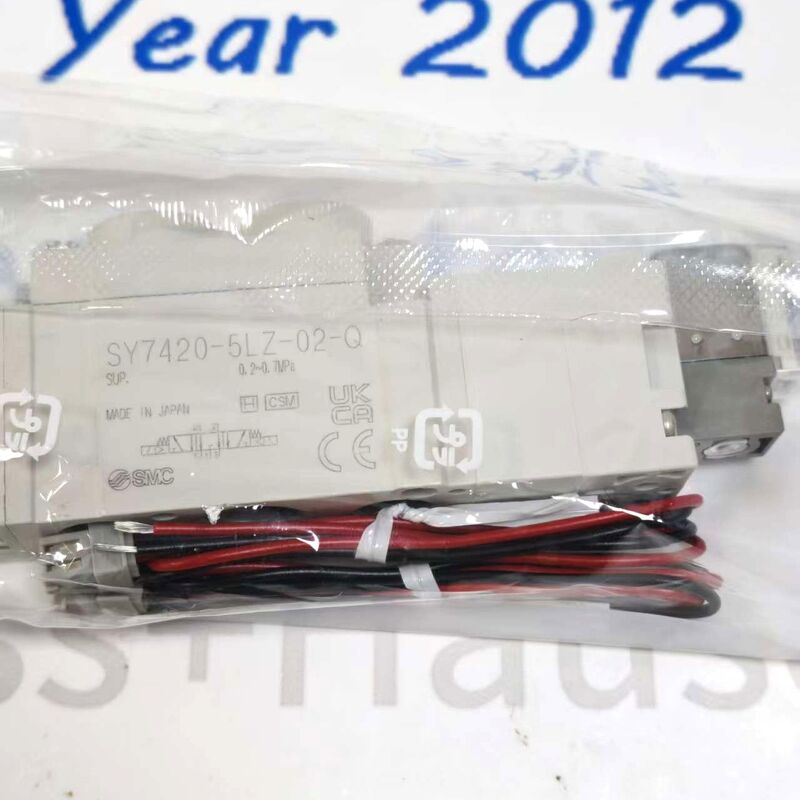

SMC SY7420-5LZ-02-Q 5‑Port Pneumatic Solenoid Valve
Product Details:
Manufacturer : SMC
Product No. :SY7420-5LZ-02-Q
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
SMC SY7420‑5LZ‑02‑Q belongs to SMC SY7000 high‑performance pneumatic solenoid valve series. It is a double‑solenoid, body‑ported 5‑port 3‑position exhaust‑center pilot operated valve, designed for filtered compressed‑air control. Rated at 24 VDC, it adopts internal pilot supply with soft rubber seal structure, supporting lubrication‑free operation. Equipped with L‑type plug connector, built‑in indicator light and surge voltage suppressor, it delivers stable switching performance for automated machinery. It can be used as single unit or assembled onto manifold bank for multi‑valve configuration.
Description:
| Item |
Parameter |
| Model Number |
SY7420‑5LZ‑02‑Q |
| Series |
SY7000 |
| Valve Type |
5‑Port / 3‑Position Exhaust Center |
| Actuation |
Double Solenoid, Pilot Operated |
| Mounting Style |
Body Ported (Single Unit) |
| Port Size & Thread |
1/4" Rc |
| Rated Voltage |
24 VDC |
| Pilot Supply |
Internal Pilot |
| Flow Coefficient(Cv) |
0.65 |
| Manual Override |
Push‑turn non‑locking type |
| Electrical Connection |
L‑type plug connector with 300 mm lead wire |
| Seal Type |
Soft Rubber Seal |
| Specification |
Value |
| Applicable Fluid |
Filtered Compressed Air |
| Operating Pressure Range(Internal Pilot) |
0.1‑0.7 MPa |
| Response Time (@0.5 MPa) |
≤32 ms |
| Ambient & Fluid Temperature |
‑10 ℃ ~ +50 ℃ (No freezing) |
| Body Material |
Aluminum Alloy |
| Operation Mode |
Lubrication‑free permitted |
| Certifications |
CE, RoHS |
| Weight |
0.28 kg |
| Installation |
Direct mounting or manifold assembly |
