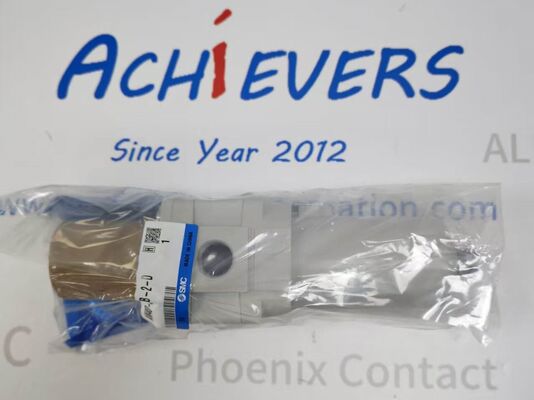

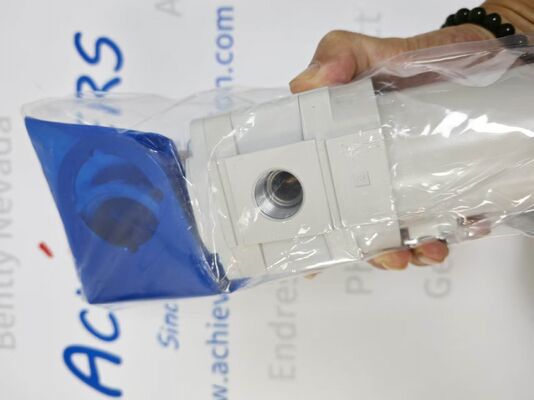

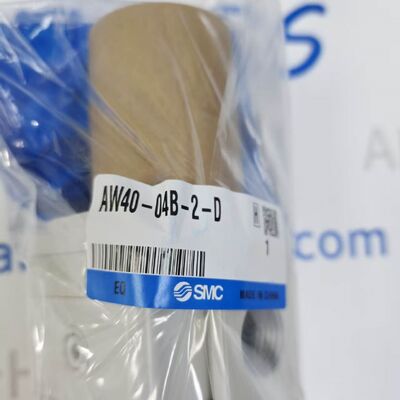

SMC AW40-04B-2-D integrated air filter regulator
Product Details:
Manufacturer : SMC
Product No. :AW40-04B-2-D
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The SMC AW40-04B-2-D is an all-in-one air filter and pressure regulator unit from the upgraded AW-D modular air preparation line, designed to purify and stabilize compressed air supply for pneumatic actuators, valves and automation equipment. Model code breakdown: AW40 = size 40 main body; 04 = Rc1/2 inch inlet/outlet port; B = complete mounting bracket assembly; 2 = without built-in pressure gauge port plug; D = normally open float auto drain mechanism.
Description:
| Parameter Item |
Technical Specification |
| Full Model Number |
AW40-04B-2-D |
| Manufacturer |
SMC |
| Product Line |
AW-D Modular Integrated Filter Regulator |
| Body Size Code |
40 |
| Inlet / Outlet Port Thread |
Rc 1/2 (ISO 7/1 Taper Female Thread) |
| Built-In Mounting Accessory |
Metal Fixing Bracket Included |
| Pressure Gauge Interface |
1/8" auxiliary port with blank plug (suffix -2) |
| Filtration Precision |
5 μm standard coalescing filter element |
| Regulator Construction |
Relieving Type (excess outlet pressure auto exhaust) |
| Drain System |
Float Auto Drain, Normally Open (N.O) |
| Condensate Storage Bowl Capacity |
45 cm³ |
| Bowl Material |
Transparent Polycarbonate |
| Bowl Protection |
Standard Full-Cover Polycarbonate Guard |
| Flow Direction |
Standard Left Inlet, Right Outlet |
| Adjustment Knob |
Lockable Rotary Pressure Setting Handle |
| Net Unit Weight |
0.64 kg |
| Mounting Compatibility |
Interchangeable with legacy AW-B series modular units |
| Specification Item |
Technical Value |
| Maximum Inlet Operating Pressure |
1.0 MPa (10 bar) |
| Hydraulic Proof Test Pressure |
1.5 MPa (15 bar) |
| Adjustable Outlet Pressure Range |
0.05 ~ 0.85 MPa |
| Relief Trigger Pressure |
Set pressure + 0.05 MPa |
| Working Medium |
Compressed Air conforming to ISO 8573-1:2010 [6:4:4] |
| Ambient & Air Medium Temperature |
-5 °C ~ +60 °C (no internal icing allowed) |
| Auto Drain Trigger Condition |
Full open drain when supply pressure = 0 bar |
| Standard Operating Air Flow Rate |
2000 L/min (ANR, 0.5 MPa outlet) |
| Material Contacting Compressed Air |
Aluminum Alloy Body, PU Seal, Polycarbonate Bowl |
| Vibration Resistance |
10–50 Hz stable operation without pressure fluctuation |
| Modular Connection Standard |
SMC AW-D series unified interlocking interface |
| Maintenance Feature |
Tool-free bowl disassembly for filter replacement & water cleaning |
| Global Compliance |
RoHS Directive Compliant, Industrial Pneumatic Standard ISO 1217 |
| Service Cycle Interval |
3000–5000 operating hours for filter element replacement |
