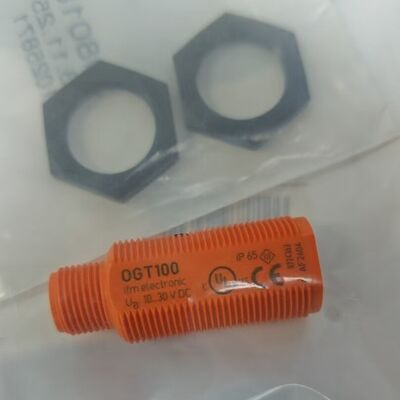

IFM OGT100 Diffuse‑Reflection Photoelectric Sensor
Product Details:
Manufacturer : IFM
Product No. :OGT100
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The IFM OGT100 is a threaded‑cylindrical diffuse‑reflection photoelectric sensor engineered for factory‑automation object‑sensing assignments. Equipped with adjustable sensing distance and red‑light LED emitter, this IFM OGT100 sensor adapts to multiple‑material workpiece detection on conveyor belts, packaging machinery and material‑handling stations. Its compact M18 threaded ABS housing and IP65‑rated shell deliver reliable performance under dusty and moist workshop surroundings. Sensitivity tuning is accessible via the built‑in potentiometer for fast on‑site setup.
Description:
| Parameter Item |
Technical Value |
| Working Voltage |
10–30 V DC |
| Quiescent Current Consumption |
20 mA |
| Light‑source Type |
Red LED |
| Wavelength |
645 nm |
| Switching‑output Type |
PNP, light‑on mode |
| Rated Switching‑output Current |
200 mA |
| Switching Frequency |
1000 Hz |
| Built‑in Protection |
Reverse‑polarity protection, short‑circuit protection |
| Protection Class |
Class III |
| Parameter Item |
Technical Value |
| Detection Range |
10–400 mm (200×200 mm 90%‑reflective white test‑paper) |
| Adjustable Sensing Distance |
70–400 mm |
| Housing Dimension |
M18×1 threaded barrel, overall length 44 mm |
| Main‑body Material |
ABS plastic; Lens: PMMA |
| Net Weight |
14.8 g |
| Operating Ambient Temperature |
‑25 °C ~ +60 °C |
| Ingress Protection Grade |
IP65 (matched with standard M12 connector) |
| Electrical Connection |
M12 A‑coded connector |
| Status Indicator |
Yellow LED for switching‑state display |
