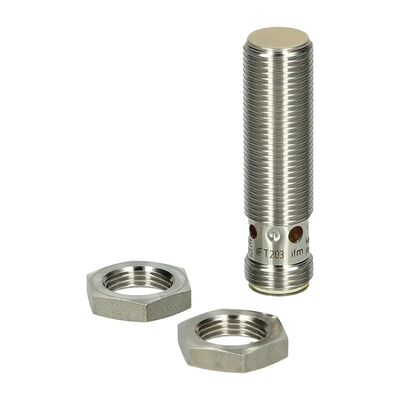

IFM IFT203 Shielded Inductive Proximity Sensor
Product Details:
Manufacturer : IFM
Product No. : IFT203
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The IFM IFT203 is a robust shielded inductive proximity sensor engineered for precise non-contact metal detection in hygienic and harsh industrial environments. As a high-performance member of IFM’s inductive sensor portfolio, the IFT203 features an extended sensing range, premium 316L stainless steel housing, and professional washdown resistance, making it ideal for food & beverage, pharmaceutical, and sanitary automated production systems.
Designed with a standard M12 threaded shielded structure and 4 mm rated sensing distance, the IFM IFT203 delivers stable and accurate detection of various metal materials with calibrated correction coefficients for different metal types. It adopts a DC PNP normally open output design, supporting a 10–30 V DC wide operating voltage range and 800 Hz high-speed switching frequency, fully compatible with mainstream industrial PLC and automation control systems.
Description:
|
Technical Item
|
Parameter Value
|
|
Product Model
|
IFT203
|
|
Manufacturer
|
IFM Electronic
|
|
Sensor Type
|
Shielded Flush Mount Inductive Proximity Sensor
|
|
Housing Specification
|
M12 x 1 Threaded Cylindrical, Length 45 mm
|
|
Rated Sensing Distance (Sr)
|
4 mm (±10% tolerance)
|
|
Effective Working Distance
|
0 – 3.24 mm
|
|
Electrical Design
|
DC PNP
|
|
Output Function
|
Normally Open (NO)
|
|
Operating Voltage Range
|
10 V DC – 30 V DC
|
|
No-load Current Consumption
|
＜ 10 mA (24 V DC)
|
|
Max Switching Current
|
100 mA
|
|
Max Switching Frequency
|
800 Hz
|
|
Max DC Voltage Drop
|
2.5 V
|
|
Hysteresis Range
|
1 – 20% of rated sensing distance
|
|
Switch Point Offset
|
-10 – +10% of rated sensing distance
|
|
Metal Correction Coefficient
|
Steel:1 / Stainless Steel:0.7 / Brass:0.5 / Aluminum:0.4 / Copper:0.3
|
|
Protection Functions
|
Reverse polarity protection, pulsed short-circuit protection, overload protection
|
|
Physical & Environmental Item
|
Parameter Value
|
|
Housing Material
|
316L (1.4404) Stainless Steel
|
|
Sensing Surface Material
|
PEEK
|
|
LED Window Material
|
PEI
|
|
Connector Type
|
M12 3-pin Gold-plated Plug
|
|
Ingress Protection Rating
|
IP68, IP69K (COP certified)
|
|
Operating Temperature Range
|
0 °C to +100 °C
|
|
Tightening Torque
|
15 Nm
|
|
Net Weight
|
27 g
|
|
Status Indicator
|
4-directional Yellow LED switching status display
|
|
EMC Compliance Standards
|
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 55011 Class B
|
|
Certifications
|
UL Certified, EMC Compliant
|
|
Service Life (MTTF)
|
1134 Years
|
|
Environmental Resistance
|
Heat shock resistant, high-pressure washdown resistant, dust-proof, corrosion-resistant
|
