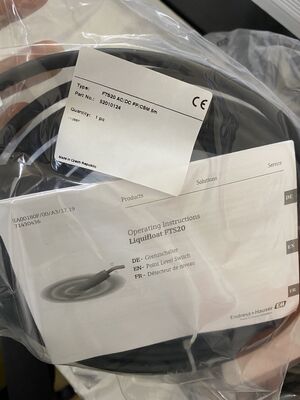

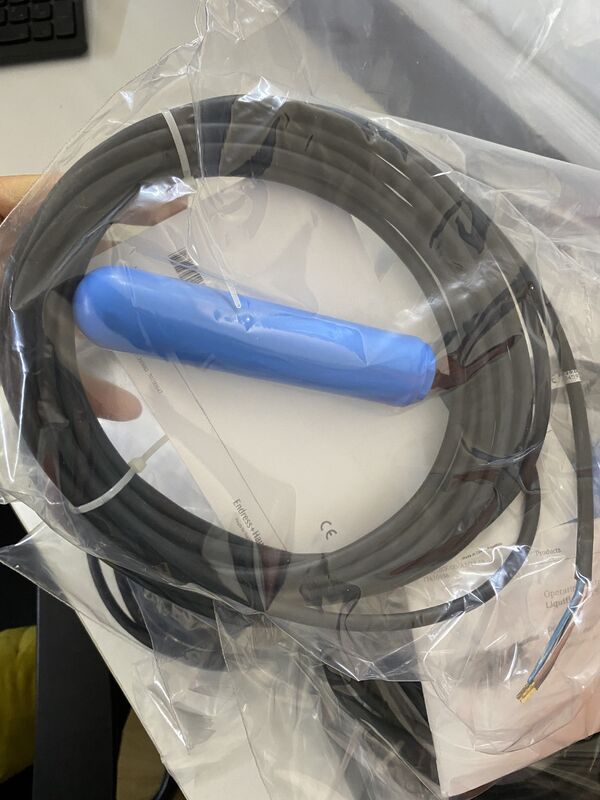

E+H FTS20 Liquifloat Float Point Level Switch
Product Details:
Manufacturer : Endress+Hauser
Product No. : FTS20
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The FTS20 series adopts a simple mechanical float triggering principle with no complex electronics inside the probe body. Multiple cable material options (PVC, PUR, CSM) support compatibility with clean water, oily media, mild acids and alkalis. Two signal output variants are available: NAMUR for hazardous explosion-prone zones and AC/DC change-over relay contact for general non-hazardous industrial environments. The slim cylindrical body fits standard G1A threaded ports for quick vertical installation, with IP68 full submersible protection up to 20 meters depth for permanent underwater operationBDIH Downl....
Detail:
| Parameter Category |
Standard FTS20 Series Specification |
| Manufacturer |
Endress+Hauser (E+H) |
| Product Model Code |
FTS20 |
| Product Line Name |
Liquifloat Vertical Float Level Switch |
| Measuring Principle |
Mechanical float displacement trigger |
| Wetted Float Material |
Polypropylene (PP) |
| Mounting Port Size |
G1A external thread |
| Minimum Liquid Density for Operation |
≥0.8 g/cm³ |
| Standard Cable Length Options |
5 m / 20 m |
| Available Cable Materials |
PVC, PUR, CSM |
| Switching Angle Tolerance |
Upper trigger: +25° ±10°; Lower trigger: -14° ±10° (horizontal reference) |
| Overall Probe Shape |
Cylindrical slim body |
| Cable Cross Section |
PVC/CSM: 2×0.75 mm²; PUR: 2×0.50 mm² |
| Minimum Cable Free Length |
PVC ≥50 mm; PUR/CSM ≥100 mm |
| Performance Item |
Rated Technical Parameter |
| Ingress Protection Grade |
IP68, permanent submersion up to 20 m |
| Max Allowable Process Pressure |
3 bar (43.5 psi) at 20°C |
| Process Liquid Temperature |
PVC/PUR cable: +5°C ~ +70°C; CSM cable: -20°C ~ +85°C |
| Ambient Operating Temperature |
-20°C ~ +70°C |
| NAMUR Version Supply Voltage |
8.2 V DC ±2 V |
| NAMUR Operating Current |
Unswitched <1.2 mA; Switched >2.1 mA |
| Relay Contact Rating |
250 V AC / 150 V DC change-over contact |
| Reverse Polarity Protection |
Supported for NAMUR electronic variant |
| Explosion Hazard Certification |
ATEX II 2G Ex ia IIB T5 Gb, TÜV certified |
| Compliance Standards |
EN 60529, IEC 61508 basic SIL capability, RoHS |
| Anti-Interference Feature |
Immune to minor liquid turbulence |
