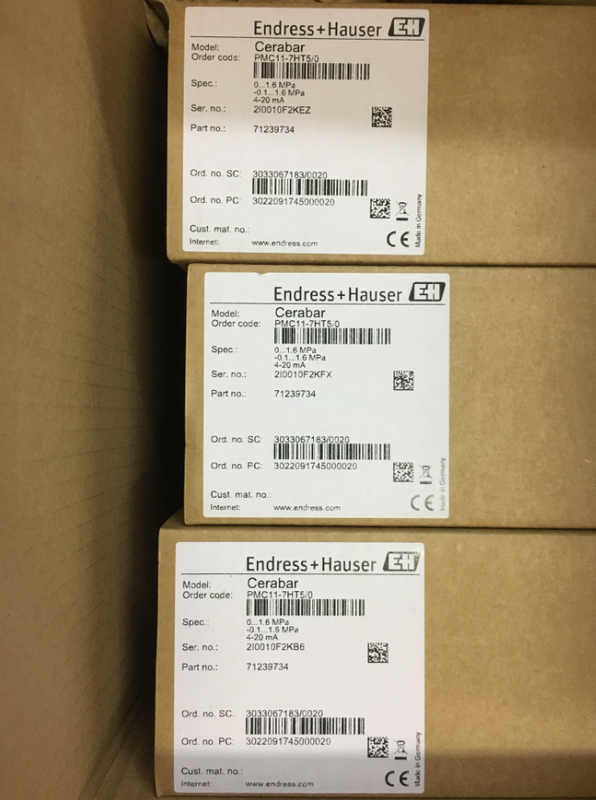

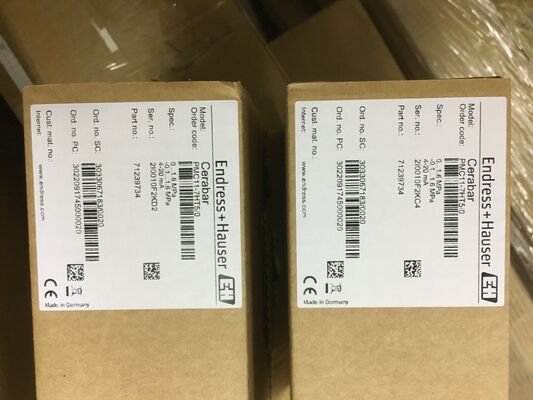

E+H PMC11-7HT5/0 Cerabar Compact Gauge Pressure Transmitter
Product Details:
Manufacturer : Endress+Hauser
Product No. : PMC11-7HT5/0
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The E+H PMC11-7HT5/0 is a cost-effective compact gauge pressure transmitter from Endress+Hauser’s Cerabar PMC11 series, engineered for continuous gauge pressure measurement of gases, vapors, and clean liquids across standard industrial process environmentsEndress+Ha.... This model adopts an oil-free capacitive 99.9% pure Al₂O₃ ceramic measuring cell, eliminating medium contamination risks from fill fluid and delivering robust abrasion resistance for long-term stable operation.
Detail:
| Parameter Item |
PMC11-7HT5/0 Official Specification |
| Full Model Identifier |
PMC11-7HT5/0 (Endress+Hauser Cerabar PMC11 Series) |
| Measured Variable |
Gauge pressure (gas, vapor, clean liquid media) |
| Measuring Principle |
Capacitive oil-free Ceraphire® 99.9% Al₂O₃ ceramic sensor |
| Calibratable Pressure Span |
400 mbar ~ 40 bar (6 psi ~ 600 psi) gauge |
| Max Overpressure Safety Limit |
60 bar (900 psi) |
| Reference Measurement Accuracy |
±0.5% of full calibrated span |
| Long-Term Stability |
0.2 % of upper range limit per year |
| Dynamic Response |
Dead time: 6 ms; T63 time constant: 10 ms; T90 time constant: 15 ms |
| Standard Output Signal |
4–20 mA 2-wire analog (3.8–20.5 mA fault signal range) |
| Power Supply Requirement |
10–30 V DC for 4–20mA operation |
| Ambient Operating Temperature |
-40 °C ~ +70 °C (-40 °F ~ +158 °F) |
| Process Medium Temperature |
-25 °C ~ +85 °C (-13 °F ~ +185 °F) |
| Ingress Protection Rating |
IP65, NEMA Type 4X |
| Functional Compliance |
NAMUR NE107 diagnostic standard |
| Mechanical & Compliance Item |
PMC11-7HT5/0 Configuration Specs |
| Main Housing Material |
1.4404 (316L) stainless steel compact body |
| Wetted Process Connection Material |
316L stainless steel |
| Measuring Diaphragm Material |
99.9% high-purity aluminum oxide ceramic (Ceraphire®) |
| Standard Seal Material |
FKM fluoropolymer (Viton) |
| Process Connection Thread |
MNPT 1/2 universal industrial thread |
| Electrical Connector |
PPSU plastic valve plug M16 connector |
| Net Unit Weight |
150 g (0.33 lbs) |
| Hazardous Area Certifications |
ATEX II 1G Ex ia IIC T6 Gb, IECEx Ex ia IIC T6, UL/CSA intrinsic safety |
| Material Traceability |
EN10204-3.1 stainless steel inspection certificate |
| Compatible Control Systems |
All DCS, PLC, paperless recorder with 4–20mA analog input |
| Media Compatibility |
Clean water, compressed air, neutral oils, non-abrasive chemical liquids |
| Installation Orientation |
Universal vertical/horizontal pipe mounting without measurement drift |
Brand
E+H is a global leader in providing measurement instruments, services, and solutions for the process and laboratory industries. Since its founding in 1953, the company has been committed to enhancing production efficiency, safety, and sustainability through innovative technologies. E+H’s product portfolio covers a wide range of areas, including flow measurement, level measurement, pressure and temperature measurement, analytical instrumentation, and data management. Its solutions are widely used in industries such as chemicals, food and beverage, oil and gas, power generation, and water and wastewater treatment.
